A brush chipper is an environmentally friendly machine that processes branches, twigs, and other woody waste into valuable wood chips for landscaping, composting, biomass power generation, and panel production. The YG series brush chipper for sale from YG Machinery covers five models (YG6130 to YG6175‑P) with capacities from 2 to 8 tons per hour, capable of crushing wet or dry branches up to 300mm in diameter. Whether you need a standard hydraulic‑fed unit for municipal pruning or a heavy‑duty chain‑plate model for wet logs and orchard clearing, these chippers combine 360° discharge, electric start, intelligent feed control, and road‑legal lights. This article walks you through every model’s specifications, working principle, key advantages, and real‑world applications – helping you choose the right brush chipper for sale that turns waste into profit.
YG Series Technical Specifications
Before choosing a wood chipper, you need clear numbers. Below are the core parameters of the YG series.
| Model | YG6130 | YG6140 | YG6145 | YG6145-P | YG6175-P |
| Power type | Diesel or electric engine | ||||
| Capacity | 2t/h | 3t/h | 5t/h | 5t/h | 8t/h |
| Diesel engine power | 23.6kw/32hp | 40kw/54hp | 75kw/100hp | 75kw/100hp | 145kw/197hp |
| Speed (r/min) | 2600 | 2900 | 2500 | 2500 | 2500 |
| No. of Blade | 4pcs moving knives , 1pcs fixed knives | 8pcs moving knives , 1pcs fixed knives | |||
| Blade length | 155mm | 155mm | 230mm | 230mm | 260mm |
| Dia of feeding roller | 280mm | 280mm | 500mm | 500mm | 600mm |
| Feeding size | 300*180mm | 300*280mm | 450*380mm | 450*380mm | 550*430mm |
| Feeding method | Horizontal hydraulic feeding | ||||
| Feeding chain plate size | / | / | / | 1700*450mm | 3000*550mm |
| Start Method | Electric start | ||||
| 600w | 600w | 800w | 800w | 800w | |
| Battery | 12V 105aH | 24V 85aH | 24V 105aH | 24V 105aH | 24V 105aH |
| Crushing diameter | ≤130mm | ≤140mm | ≤250mm | ≤250mm | ≤300mm |
| Fuel tank capacity | 20L | 20L | 25L | 25L | 50L |
| Gear position | Intelligent control | ||||
| Tire size (Aluminum alloy hub) | 165/70r13 | 165/70r13 | 215/75r15 | 215/75r15 | 215/75r15 |
| Discharge direction | 360° | ||||
| Other accessories | Tail lights, feed lights, folding jacks | ||||
Every brush chipper for sale in this lineup is built for outdoor work: electric start, intelligent gear control, and tail lights as standard.
Why Choose A YG Wood Chipper? Four Core Advantages
A reliable brush chipper does more than just shred branches. The YG series offers:
- Wide material adaptability – Over 50 types, including wet/dry branches, corn stalks, coconut branches, and reeds. Adjust the final particle size by changing the screen.
- High throughput, low operating cost – From 2 t/h (YG6130) up to 8 t/h (YG6175‑P). A large fuel tank (50L on the biggest model) means fewer refueling stops.
- Two feeding options – Standard horizontal hydraulic feeding for most jobs; chain‑plate feeding (YG6145‑P / YG6175‑P) for wet, heavy, or oversized logs.
- Easy transport – Two rugged tires (aluminum alloy hub) and folding jacks allow you to tow the unit on‑site.
For municipal crews and commercial landscapers, this combination of durability and simplicity makes every brush chipper for sale from YG a long‑term asset.
Core Components Of A Commercial Garden Shredder
Understanding what’s inside a garden shredder helps you operate it safely and maintain it easily. The YG series consists of:
- Diesel (or electric) engine – Provides rotational power. YG6145 and YG6175‑P use 100hp and 197hp diesel engines.
- Belt drive & clutch – Transfers engine torque to the cutting rotor. The intelligent control system engages the clutch smoothly.
- Cutting rotor with moving knives – 4 to 8 reversible blades (hardened steel) that chop material against a fixed counter knife.
- Hydraulic feeding roller system – Pulls branches into the rotor at a controlled speed. Prevents jamming and protects the engine.
- Heavy‑duty frame & towable chassis – Welded steel construction, tail lights, feed lights, and folding jacks for road travel.
- 360° discharge chute – Rotates fully so you can direct chips exactly where needed.
All models include a 12V or 24V battery (105Ah on most) and electric start – no pull cord required.
Working Principle Of A Tree Branch Crusher
How does a tree branch crusher turn a pile of limbs into uniform chips in seconds? The process is straightforward:
- Material intake – Branches are fed into the hopper. The horizontal hydraulic feeding roller grips the material and moves it toward the rotor.
- Cutting action – The rotor spins at 2500‑2900 rpm. Moving knives slice the wood against the fixed knife, producing small chips.
- Screening & discharge – Chips pass through a screen (different hole sizes available). Larger particles are recirculated in the cutting chamber. The fan effect blows the finished chips out through the 360° adjustable chute.
- Continuous operation – The intelligent gear control monitors engine load and adjusts feeding speed automatically to avoid stalling.
This design works with both dry hardwood and green, sappy branches up to the maximum crushing diameter (130‑300mm, depending on model). That is why a well‑built brush chipper for sale can handle everything from orchard pruning to disaster clean‑up.
Smart Features That Make These Chippers Stand Out

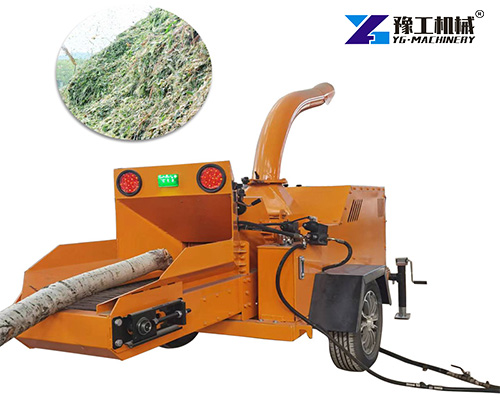

- Chain‑plate feeding (YG6145‑P & YG6175‑P) – Unlike standard hoppers, the chain plate moves wet, crooked, or heavy logs steadily into the rotor. Ideal for eucalyptus, coconut wood, and wet biomass.
- Electric start with battery – No struggling with recoil starters. Turn a key and go.
- Intelligent gear control – Automatically adjusts hydraulic feed speed based on engine rpm. Prevents overload and keeps productivity high.
- Road‑legal lights – Tail lights and front lights meet safety standards for towing on public roads.
- Fuel efficiency – The 50L tank on YG6175‑P supports a full day of heavy work. Smaller models (20L) are still enough for continuous 4‑5 hour shifts.
- Easy blade access – Large maintenance door lets you inspect or replace knives without dismantling half the machine.
These features are not found on cheap entry‑level chippers. They are the reason professional users search for a brush chipper for sale from YG Machinery.
We have successfully exported wood shredders to the United States. For your reference, our American customer purchased our YG6145-P chain plate wood shredder, which reduced processing time by 40% and oil consumption by 25% in the processing of branches, palm leaves, and eucalyptus waste, successfully solving the problems of frequent clogging and high disposal costs of wet materials.
Contact our team to discuss the right model for your application, and ask about our spare parts kit (extra blades, belts, clutch discs). A quality brush chipper for sale is an investment that pays for itself within months through saved labor and disposal fees.
