You are in an open-plan office. A colleague is on a video call. Another is typing loudly. You have a confidential meeting with a client, but there is no private room. You need silence – right now. What if you could have a quiet, private space anywhere – without renovating or building walls?
That is exactly what a silent booth does. It is a freestanding soundproof room you can set up in any corner. It blocks outside noise up to 30dB. You step inside – and the world goes quiet. Take calls, hold meetings, study, or just think. No construction dust. No permits. No waiting.
YG Machinery offers silent booths (also called soundproof cabins) in four sizes: S (Single Booth), M (Double Booth), L (4-Person Booth), and XL (6-Person Booth). Each is available in three styles: PC, PR, and PE. The cabin uses 6063 aluminum frames, double-layer aluminum honeycomb panels, and 3C tempered glass. It includes a low-noise ventilation system, LED lighting, and power outlets (100-240V + USB). Assembly takes just 2 hours.
YG Silent Booth – Complete Specifications
| Model | Capacity | Style | External Dimension (W × D × H mm) | Internal Dimension (W × D × H mm) | Total Weight |
| S Single Booth | 1 Person | PC Type | W988×D1010×H2288 | W856×D900×H2156 | 233kg |
| S Single Booth | 1 Person | PR Type | W988×D1010×H2288 | W856×D900×H2156 | 233kg |
| S Single Booth | 1 Person | PE Type | W1164×D1010×H2238 | W1030×D876×H2177 | 233kg |
| M Double Booth | 2 Persons | PC Type | W1488×D1250×H2288 | W1356×D1140×H2156 | 345kg |
| M Double Booth | 2 Persons | PR Type | W1488×D1250×H2288 | W1356×D1140×H2156 | 345kg |
| M Double Booth | 2 Persons | PE Type | W1488×D1250×H2238 | W1354×D1116×H2177 | 345kg |
| L 4-Person Booth | 4 Persons | PC Type | W2188×D1610×H2288 | W2056×D1500×H2156 | 550kg |
| L 4-Person Booth | 4 Persons | PR Type | W2188×D1610×H2288 | W2056×D1500×H2156 | 550kg |
| L 4-Person Booth | 4 Persons | PE Type | W2188×D1610×H2238 | W2054×D1488×H2177 | 550kg |
| XL 6-Person Booth | 6 Persons | PC Type | W2188×D2210×H2288 | W2056×D2100×H2156 | 610kg |
| XL 6-Person Booth | 6 Persons | PR Type | W2188×D2210×H2288 | W2056×D2100×H2156 | 610kg |
| XL 6-Person Booth | 6 Persons | PE Type | W2188×D2210×H2238 | W2054×D2088×H2177 | 610kg |
Why Do You Need A Soundproof Cabin?
Noise is everywhere. It affects your focus, your privacy, and your health. Here is why a silent booth solves the problem.
Privacy. In open offices, confidential conversations are overheard. A soundproof cabin gives you a private space for sensitive calls or meetings.
Focus. Background noise reduces productivity by up to 40%. A quiet cabin lets you work without distractions.
Professionalism. Taking a client call in a noisy lobby looks unprofessional. A clean, quiet booth shows you take your work seriously.
Flexibility. You can put a silent booth anywhere – office corner, airport lounge, hotel lobby, school library, factory floor. No construction required.
Health. Chronic noise exposure causes stress and fatigue. A quiet space gives your ears a break.
Where Can You Use A Silent Booth?

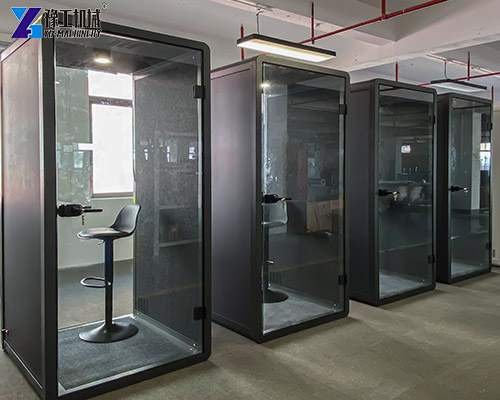

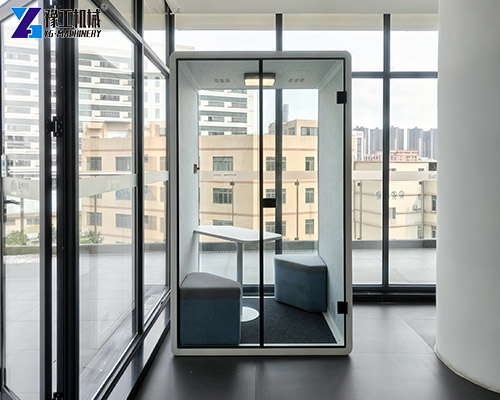

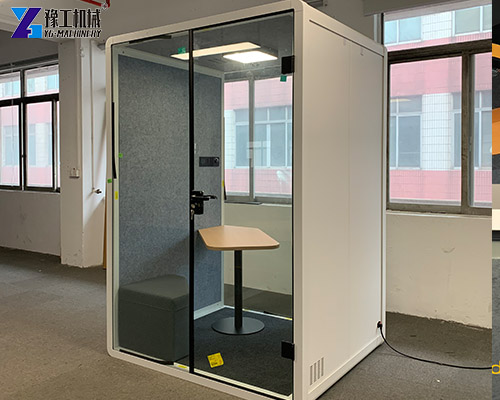

- Phone booth (privacy space). In open offices, making private calls is hard. A silent booth gives you a quiet space to talk without disturbing others or being overheard.
- Meeting and discussion room. Conference rooms are always booked. A 2‑6 person booth is perfect for small meetings, brainstorming, or quick catch‑ups. A 2-6 person meeting only needs a small booth.

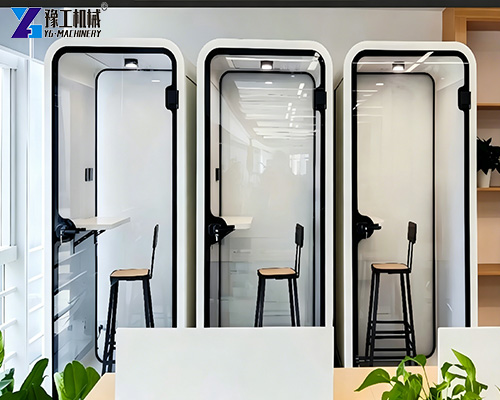

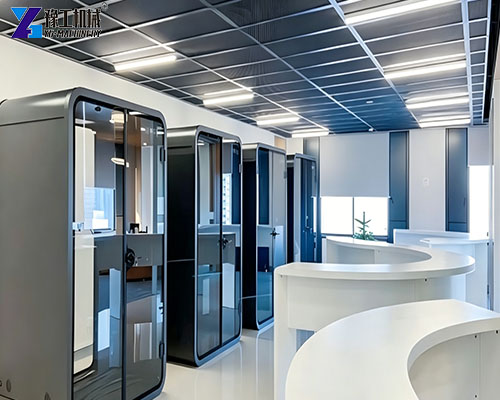

- Study room/self-study space. In schools, libraries, or co‑working spaces, students need quiet places to focus. A study cabin provides a distraction‑free environment for exams, interviews, or online courses.

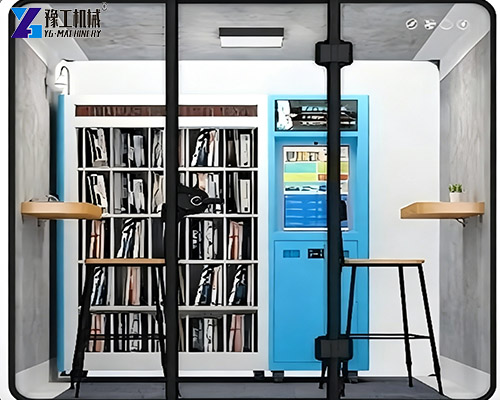

- Reading room. For book lovers, a silent space is essential. The booth offers perfect quiet for reading, writing, or deep thinking.

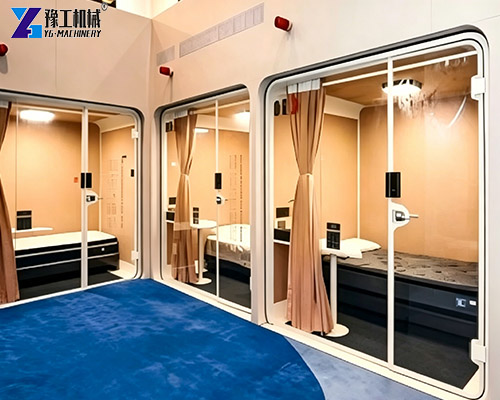

- Sleep/rest cabin. In busy workplaces, sometimes you need a power nap. The soundproofing blocks office noise, giving you a peaceful rest.

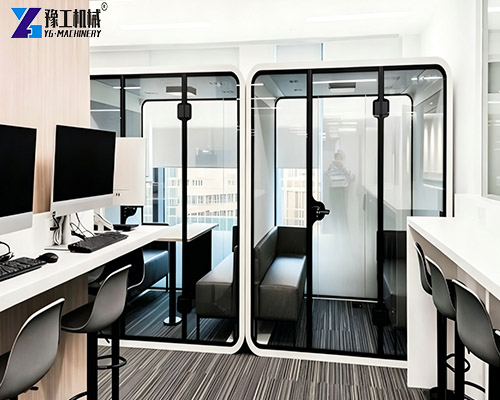

- Recording room. For podcasts, voiceovers, or music recording, sound isolation is critical. The 30dB noise reduction works well for vocals and acoustic instruments.
- Custom cabins. Self‑service reading rooms, product display cabins, home KTV, glass display cabins, live streaming cabins, and sleep cabins. You can customize the interior layout.
Furniture And Interior Options
Each silent booth comes with furniture suited to its size.
| Model | Included Furniture |

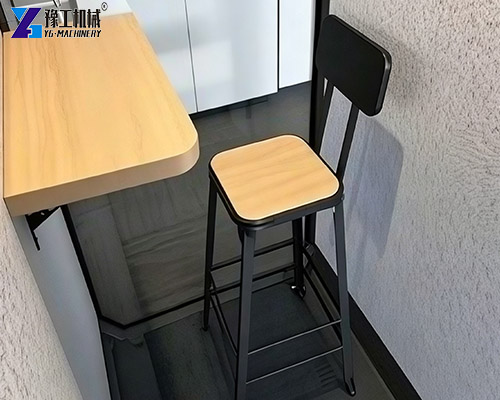

| Single booth | Wall-mounted table ×1 + high stool ×1 (or wall-mounted table + leather chair ×1). Table color: wood grain or white (optional). |

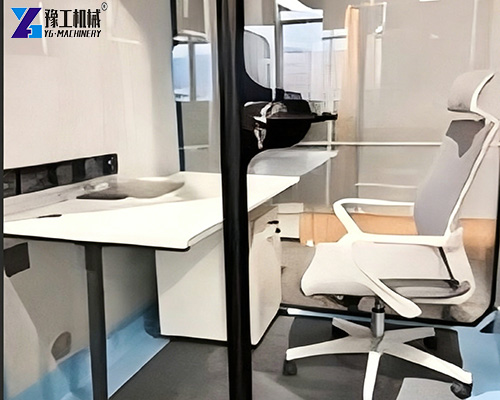

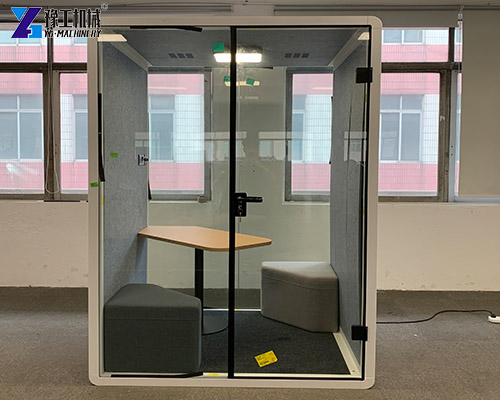

| Double booth | Table ×1 + high chairs ×2 (or corner table + corner stools, or desk + office chairs). |

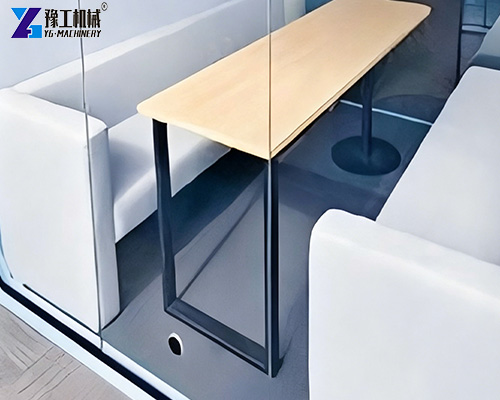

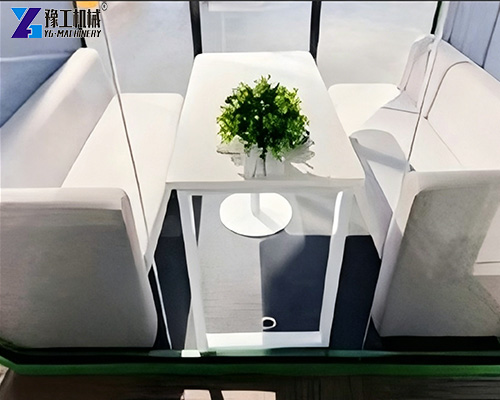

| 4-Person booth | Table ×1 + sofa ×2. |
| 6-Person booth | Table ×1 + sofa ×2. Table color: wood grain or white (optional). |
You can also customize the furniture layout for your specific needs.
How Does A Silent Booth Work?
The silent booth is a modular room that you assemble on site. Here is what makes it soundproof.
- The structure. The frame is made of 6063 aluminum alloy – lightweight but strong. The panels are 38mm thick double‑layer aluminum honeycomb. The honeycomb structure traps sound waves, preventing them from passing through.
- The glass. 3C tempered glass is used for windows. It is both strong and soundproof. The multiple layers and airtight seals block outside noise.
- The interior. Polyester fiber acoustic lining absorbs sound inside the booth – no echo. The nylon carpet reduces footstep noise.
- The ventilation. A low‑noise fresh air system exchanges all the air in the cabin every 2 minutes. You get fresh air without the noise.
- The seals. The door and windows have rubber seals. When closed, the cabin is airtight – sound cannot leak in or out.
- The result: 30dB noise reduction. Normal office noise (60‑70dB) becomes a whisper (30‑40dB) inside the booth.
Find Your Quiet Place With YG Silent Booth
A silent booth is not a luxury – it is a necessity for modern work, learning, and life. YG offers four sizes (1 to 6 persons) and three styles (PC, PR, PE). All models provide 30dB sound reduction, fresh air ventilation, comfortable LED lighting, and power outlets. They are made from high‑quality materials: 6063 aluminum frame, 38mm honeycomb panels, 3C tempered glass, and an acoustic interior. Assembly takes 2 hours. You can put one in an office, library, co‑working space, airport lounge, or even your home.
Choose from three standard colors, or pick extra colors for the PC style. Furnish it for calls, meetings, studying, reading, recording, or even sleeping. The module is safe, fireproof, and odor‑free. Custom layouts are available on request.
YG Machinery also offers custom‑size cabins and special configurations for specific needs. Contact YG with your required capacity and application. They will recommend the right soundproof cabin and provide a quote. Stop fighting noise – step into silence.
Frequently Asked Questions
The booth reduces outside noise by 30dB (±5dB). If the outside noise is 65dB, inside you hear about 35dB – about the volume of a whisper. That is quiet enough for focused work, private calls, or clear audio recording.
About 2 hours. The booth is modular – all parts arrive ready to assemble. No special tools or skills required.
Yes. The booth is freestanding and lightweight. You can disassemble and reassemble it elsewhere, or move it with a pallet jack.
Yes. The materials are flame-retardant and meet safety standards.
Yes. Standard colors: sand white, grass green, wood grain, sand gray. PC style has extra options: sand blue, sand silver, sand yellow, sand orange.
Yes. You can customize the interior layout. The standard configurations come as listed, but YG can adjust to your needs.
Yes. 30dB sound reduction and 0.25s reverberation time are suitable for voiceovers, acoustic instruments, and podcasts. For loud drums, you may need additional sound treatment – check with YG.
