A thermoplastic preheater is a road marking machine that heats and mixes solid thermoplastic road marking material until it reaches the required application temperature. It is commonly used for highway markings, parking lots, urban roads, and other pavement marking projects. YG offers mechanical and hydraulic thermoplastic preheater models with different kettle capacities to suit various project requirements.

Whether you need a compact machine for smaller road marking jobs or a higher-capacity model for larger projects, choosing the right preheater depends on your material requirements, daily workload, and the road marking equipment you use. Compare the specifications below to find a suitable model, or contact YG for product details and a quotation.
YG Core Specifications: Mechanical and Hydraulic Thermoplastic Melters
When selecting a thermoplastic preheater, understanding the technical parameters is essential. Below are the key specifications for the mechanical and hydraulic models
| Model | YG-CK300 Mechanical Single Cylinder | YG-CK600 Mechanical Double Cylinder | YG-CK800 Hydraulic Double Cylinder | YG-CK1000 Hydraulic Double Cylinder | YG-CK1200 Hydraulic Double Cylinder |
| Engine | 6.5HP evaporative water-cooled diesel engine | 8.0HP evaporative water-cooled diesel engine | 15HP electric start evaporative water-cooled diesel engine | ||
| Kettle Capacity | 300kg | 300kg*2 | 360kg*2 | 500kg*2 | 600kg*2 |
| Dimensions | 1400mm*900mm*1600mm | 1320mm*1400mm*1650mm | 1730mm*1620mm*1570mm | 1750mm*1620mm*1700mm | 1860mm*1820mm*1700mm |
| Net Weight | 500kg | 800kg | 1000kg | 1200kg | |
| Daily Workload | 600-800m2 | 800-1200m2 | 1000-2000m2 | 1200-2000m2 | |
| Structure | Frame structure, high-density aluminum silicate insulation material is installed between the inner liner and the outer cover of the kettle, saving 20% of gas | Frame structure, insulation material is installed between the inner liner and the outer wall of the kettle | |||
| Safety Device | Custom-designed automatic protection device; the diesel engine and reducer are automatically disconnected in case of an emergency to ensure the safety of workers | Custom-designed overload overflow device to prevent misoperation | |||
| Heating System | High-efficiency and energy-saving LPG direct injection burner | ||||

Advantages Of YG Company’s Hot Melt Kettle
Investing in a high-quality thermoplastic preheater offers several distinct advantages that directly impact your bottom line.
- Mechanical single/double cylinder: Compact size, accessible to underground parking lots.

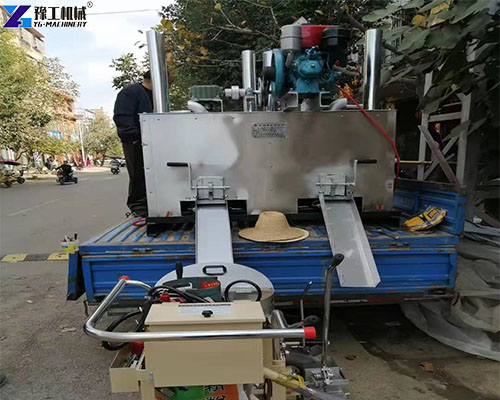

- Hydraulic double cylinder: High efficiency, capable of forward and reverse stirring for uniform heating, and can supply two road marking machines simultaneously.
- Durability and material quality set these machines apart. Both series use stainless steel tanks and high-carbon steel bottoms, ensuring resistance to corrosion and wear. The vertical paddle mixers provide thorough and uniform mixing, preventing material separation and ensuring a consistent application.
- Safety features are integrated into every model. The mechanical series includes an automatic protection device that disengages the engine and reducer during emergencies. The hydraulic series is equipped with an overload relief valve, protecting both the operator and the machine from damage caused by improper use.


How Does a Thermoplastic Melter Work?
The working principle of a thermoplastic preheater is straightforward yet highly effective. The operator loads solid thermoplastic material into the kettle. The LPG burner heats the tank from below, while the vertical paddle mixer continuously rotates to ensure even heat distribution and prevent scorching. Once the material reaches the optimal application temperature—typically between 180°C and 220°C—it is ready for use. In mechanical models, the manual clutch controls the mixing action. In hydraulic models, the hydraulic system provides smoother, more consistent power to the mixing mechanism. The result is a steady supply of high-quality molten thermoplastic ready for road marking applications.
Application Scope & Selection Advice For Melting Equipment
These thermoplastic melting machines are designed to handle a wide range of thermoplastic marking materials, including standard road marking paints, reflective beads, and anti-skid additives. The uniform heating and mixing capabilities ensure that additives are evenly distributed, resulting in durable, high-visibility markings.
If you are looking for a reliable thermoplastic preheater to enhance your road marking operations, YG offers a comprehensive lineup of both mechanical and hydraulic models to match your project scale and budget. Our equipment is built for durability, safety, and efficiency, ensuring that you can deliver professional results day after day.
In addition to these, YG also offers other road machinery, such as small road rollers. Please feel free to contact us if needed.

Frequently Asked Questions About Thermoplastic Preheater
A: Essential safety features should include automatic over-temperature cutoff, sturdy lid mechanisms, and stability or tilt switches that shut off heat if the unit is moved.
A: Not all preheaters are suited for all materials. If you use specialized mixes, confirm that the thermoplastic melting pot’s agitator system and inner liner are compatible. Some abrasive or chemically modified materials may require a specific, more resistant liner material.
A: Mechanical and hydraulic models differ in their mixing drive systems and operating arrangements.
A: Compatibility depends on material supply requirements, output capacity, and the connection or transfer arrangement. Confirm these details with YG before ordering.
