Collapsible house containers are prefabricated, modular, integrated houses built with heavy-duty steel frame structures and hinged folding mechanisms, allowing for rapid unfolding and folding for transportation. They are available in 20FT/30FT/40FT models and smaller sizes, significantly reducing volume and logistics costs when folded. They can be quickly assembled without large equipment, are made of robust and weather-resistant Q235 galvanized steel, and are suitable for all scenarios. Interiors are customizable, and water and electricity are pre-installed. Insulation coatings can also be added. Widely used in construction sites, disaster relief, cultural tourism, mining, and other fields, they are a portable, environmentally friendly, and cost-effective mobile living and office solution.


Technical Specifications Of The Folding Portable House
Before exploring how this product functions, let‘s look at what makes these collapsible house containers so versatile. Below are the core size and weight parameters for different models:
| 20FT Basic Characteristics | External dimension (mm) | W6260*L5900*H2480(Side 2270) |
| Internal dimension (mm) | W6160*L5560*H2240(Side 2150) | |
| Folded state (mm) | W2200*L5900*H2480 | |
| Total mass (kg) | 3000 | |
| 30FT Basic Characteristics | External dimension (mm) | W6160*L9000*H2480(Side 2180) |
| Internal dimension (mm) | W6200*L8660*H2240(Side 2060) | |
| Folded state (mm) | W2200*L9000*H2480 | |
| Total mass (kg) | 5000 | |
| 40FT Basic Characteristics | External dimension (mm) | W6160*L11800*H2480(Side2180) |
| Internal dimension (mm) | W6080*L11540*H2200(Side2060) | |
| Folded state (mm) | W2200*L11800*H2480 | |
| Total mass (kg) | 7000 | |
| Smaller Fold Size | External dimension (mm) | W4820*L5900*H2480(Side2270) |
| Internal dimension (mm) | W4660*L5560*H2240(Side2150) | |
| Folded state (mm) | W700*L5900*H2480 | |
| Total mass (kg) | 1850 |
Major Benefits Of A Foldable Container House
Why choose this type of solution over traditional modular housing or typical site shacks? Here are the primary benefits:
- Effortless Mobility: The unit folds to a compact 2.2m width by 5.9m length (2.2m × 11.8m for the 40FT model). This significant reduction in shipping volume lowers freight costs and logistical challenges.
- Quick Setup Without Heavy Equipment: You don‘t need a large crane for this unit. A skilled team can reposition and unfold the house container on site using the built-in hinge system, dramatically reducing labor time.
- All-Weather Robustness: Made from Q235 galvanized steel, the structure handles tough weather and heavy payloads. The design resists wind and water infiltration.

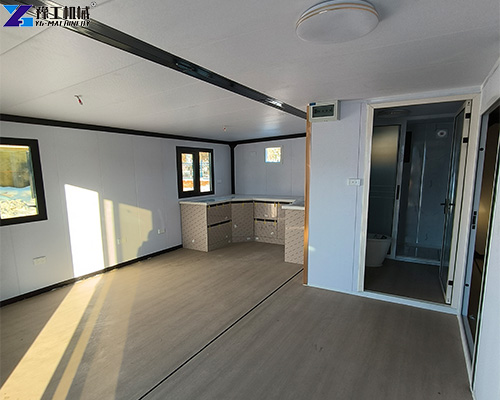

- Customizable Interiors Every Time: Customers can fully personalize the internal layout. The 20FT version can be configured as a one-bedroom apartment or a two-bedroom family home. Additional changes like wall paneling, solar compatibility, different roof styles, and extra fixtures are all possible during production.
- Environmentally Sustainable: These reusable Steel Folding Homes reduce construction waste and allow for future relocation. The prefabrication process consumes less energy compared to traditional on-site building.


Core Components Of A Collapsible House Container
Understanding the construction helps explain the product‘s strength. The system relies on:
- Main Frame: High-strength galvanized steel beams provide the rigid skeleton. The Q235 steel grade is standard, ensuring a stable and secure structure.
- Folding Wall System: The four sides are engineered with a hinge-based pivoting mechanism. This allows the components to fold inward for transport and lock tightly in place when expanded.
- Roof and Floor Panels: The roof uses a durable sandwich panel design (often EPS, Rock Wool, or PU insulation) with a top steel layer to achieve both insulation and weather resistance.
- Floor Base: A reinforced steel base with integrated lifting points allows forklifts or cranes to move the unit safely.

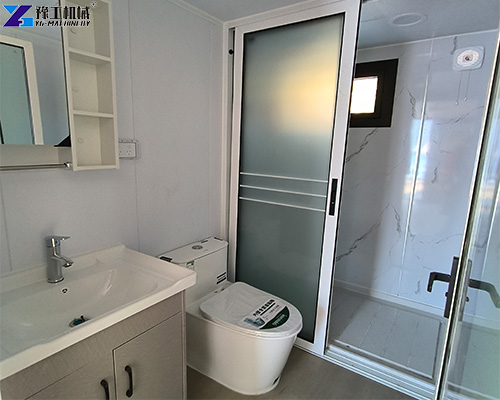

- Pre-Fitted Utilities: The standard purchase includes all basic wiring, plumbing, internal doors, cabinets, a toilet, a washbasin, and a shower – no major extra work is needed immediately.
How Does This Portable Housing Work?
The folding concept is surprisingly straightforward yet robust. At the factory, the walls and roof are assembled using heavy-duty industrial hinges. When the unit is in “travel mode,” all sides fold completely inward against the base, creating a flat, stackable block. At the destination, a small team pulls the walls upright and secures them with locking bolts. The final step is to lift the roof panels into position, creating a weathertight seal. The entire process is guided by manuals and online tech support, though professional assistance is strongly recommended for safety and proper alignment.


Where Can You Use A Collapsible House Container?
These Foldable Portable Buildings work best in dynamic environments where mobility is a priority:
- Construction site offices and dormitories: Provide safe worker accommodations without building permanent structures.
- Disaster relief and temporary shelters: Set up quickly after hurricanes or earthquakes.
- Eco-tourism and glamping resorts: Place comfortable lodging units in remote natural areas.
- Remote mining or agricultural camps: House workers in areas with limited road access.
- Military field operations: Deploy secure field offices or sleeping quarters.
- On-site sales offices: Establish a professional space at property or equipment sales sites.
Conclusion And Next Steps
Adopting a collapsible house container means gaining a portable, durable, and reusable space tailored to your land or business challenge. For urgent housing, remote work sites, or affordable living, this solution delivers proven results. YG is a specialized manufacturer offering fully customized designs for every model. Start a conversation with YG today. Share your site conditions, required size, and interior preferences. Take the next step – request a 3D design and a formal quote now.
