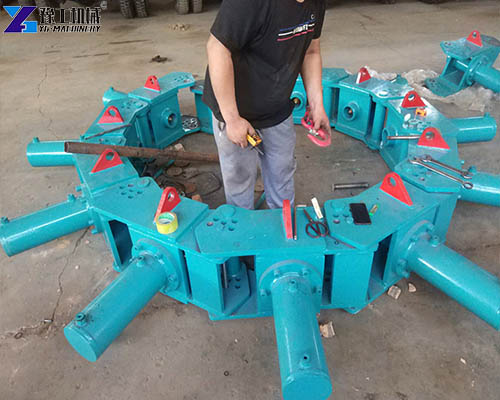

A pile breaker machine is a practical engineering device for crushing solid concrete materials, including concrete piles, construction waste, and large concrete components. Powered by hydraulic pressure, it uses extrusion and shearing to break concrete into standard small aggregates, which reduces the volume of concrete waste and enables resource recycling. It serves both construction and environmental protection needs: it can turn construction waste into reusable sand and gravel, and also crush unqualified concrete piles on-site, greatly improving construction efficiency.
As a core hydraulic concrete crushing tool, it breaks piles efficiently, precisely, and with low noise, making it a must-have in modern engineering. It also perfectly solves the common headaches of engineering contractors in concrete pile construction: manual pile breaking is time-consuming and costly, hydraulic hammer crushing easily damages steel bars and leads to rework, and excessive construction noise restricts work in urban residential areas.
Core Specifications Of Concrete Pile Crusher
| Single-module weight | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Singlemodule weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||
Key Advantages Of Pile Crusher For Engineering Construction
- Greatly improved construction efficiency
The hydraulic pile breaker is driven by high-pressure hydraulic power, with strong crushing capacity. Combined with the flexible mobility of excavators, it can quickly complete pile foundation crushing operations at multiple construction points. It shortens the pile breaking construction period by more than 50% compared with traditional methods, and effectively speeds up the overall progress of the project. - Substantial reduction of comprehensive construction costs
The pile breaker machine can be directly connected to the existing excavators on the construction site for operation, without additional purchase of power equipment, reducing equipment procurement costs; it only needs 1-2 operators, cutting labor costs by more than 60% compared with manual pile breaking; in addition, its later operation and maintenance costs are low, and precise pile breaking reduces material waste and rework costs, greatly lowering the overall construction cost. - Simple operation and easy maintenance
The hydraulic concrete pile cutter adopts a standardized installation design and humanized operation interface, which is easy to learn and operate; the equipment has a reasonable structural design and low failure rate, and the daily maintenance only needs regular inspection of the hydraulic system and replacement of vulnerable parts, which reduces the difficulty of construction site management and maintenance costs.

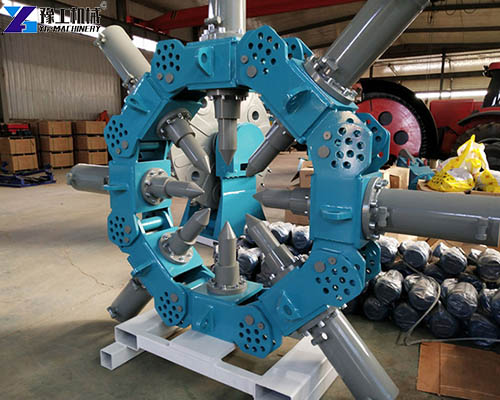

How Does A Pile Head Breaking Machine Work?
Many buyers are curious about the working principle of the pile breaker machine and why it can crush concrete piles efficiently without damaging steel bars. In fact, the core design basis of the concrete pile breaker is the mechanical characteristic of concrete that tensile strength is much lower than compressive strength. The whole working process is simple and efficient, and the specific steps are as follows:

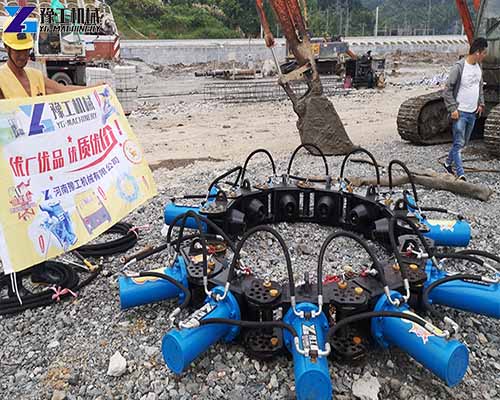

Step 1: Installation and positioning
The boom of the excavator hoists the pile head breaker and sleeves it on the pile head, then adjusts the equipment to the designed pile breaking height, and fixes it through the auxiliary connection adjustment system to ensure that the equipment is closely attached to the concrete pile body.
Step 2: Hydraulic system activation
The operator activates the hydraulic flow through the foot valve or control button in the excavator cab, and the high-pressure oil is quickly and synchronously delivered to the hydraulic cylinders of all crushing modules of the concrete pile crusher
Step 3: Synchronous radial extrusion
Driven by high-pressure oil, the hydraulic cylinders of all modules push the alloy chisels to extrude the concrete pile body inward synchronously. The multi-point radial pressure makes the cross-section of the pile body generate an obvious stress concentration.
Step 4: Pile body fracture and block removal
Due to the low tensile strength of concrete, the stress concentration area of the pile body will produce an instantaneous horizontal fracture; then the excavator boom lifts the pile breaker machine, and directly peels off the broken concrete block from the steel bar frame, completing the whole pile breaking process.
The whole working process of the concrete pile crusher is like a huge “hydraulic shearing machine” peeling off concrete, which is fast and efficient, and the steel bar frame of the pile body can be completely preserved, meeting the subsequent construction requirements of the project.
Distinct Features Of High-Quality Pile Head Breaker
In addition to the above core advantages, the pile breaker machine has a variety of practical structural and functional features, which make it more adaptable to the diverse needs of modern engineering construction, and also reflect the high cost-performance of the equipment.
- High-efficiency and low-noise operation
The machine realizes low-noise pile breaking while ensuring crushing efficiency, and the on-site operation noise is far lower than the national construction noise standard. It is especially suitable for pile breaking construction in urban residential areas, schools, hospitals, and other noise-sensitive areas, avoiding construction disturbance to residents. - Advanced modular design
The modular structural design is the most prominent feature of the pile breaker machine. It can splice different numbers of modules according to the actual pile diameter of the project, realizing the crushing of pile heads of different specifications. The module splicing is simple and fast, and the adaptability of the equipment is greatly enhanced. - High cost performance and favorable after-sales service
The cost performance of the domestic pile breaker machine is fully comparable to that of foreign similar products, with a more favorable sales price; at the same time, it has a perfect local after-sales service system, including on-site installation guidance, regular maintenance, and quick replacement of vulnerable parts, which saves the after-sales cost of buyers. - Strong compatibility with various engineering machinery
This machine is equipped with hydraulic quick connectors, which can be quickly connected with excavators, cranes, telescopic booms, and other common engineering machinery on the construction site, and is compatible with the hydraulic power system of most engineering machinery, truly realizing the versatility and economy of the equipment.

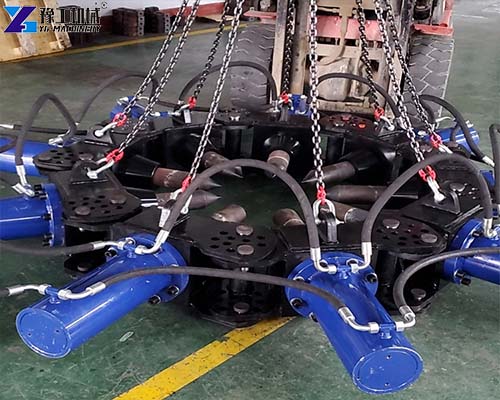

Reliable Pile Breaker Customization & Supply – YG Engineering

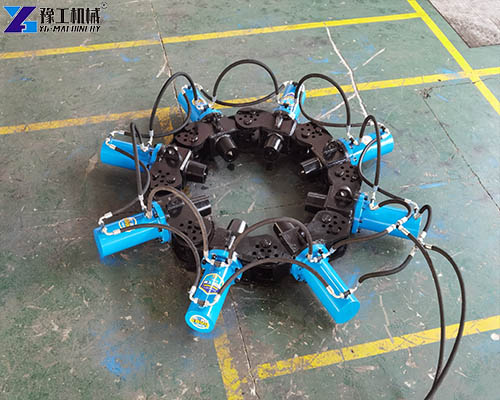

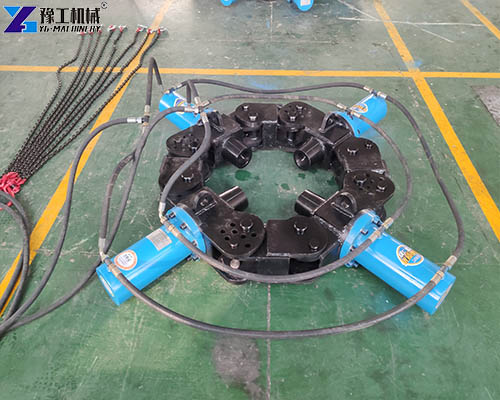

If you are looking for a reliable pile breaker machine supplier, want to know the latest quotation of the concrete pile breaker, or need to customize the equipment according to the actual needs of the project, YG is your best choice! As a professional manufacturer with profound technical accumulation in the engineering machinery field, we provide a full range of pile breaker machine models, including pile breakers for circular piles, square piles, modular pile breakers, and connected pile breakers. Our equipment comes with high-quality hydraulic quick connectors that allow for quick installation and adaptation. It is fully compatible with the hydraulic power system of excavator hydraulic breakers, and can meet the crushing requirements of piles with different diameters and types. Besides pile breakers, we also offer other excavator attachments such as twin-cylinder shears. Please feel free to contact us if needed.
