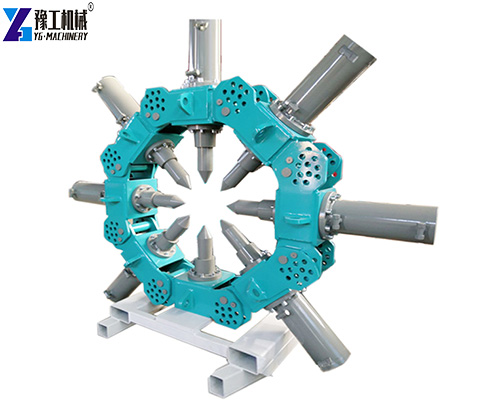

Concrete pile cutter is a hydraulic construction attachment designed for cutting and removing concrete pile heads in foundation projects. It uses hydraulic power to drive multiple cylinders and chisel rods, applying radial pressure around the pile body to achieve controlled pile head separation.
The equipment is mainly used for reinforced concrete cast-in-place piles and precast piles. Compared with traditional manual breaking methods, the hydraulic concrete pile breaker provides a more controlled working process with lower noise, less vibration, and a cleaner pile cutting surface.
With a modular structure, the equipment can be assembled with different numbers of modules to match different pile diameters. It is widely used in building foundations, bridge construction, railway projects, and underground engineering.
Hydraulic Concrete Pile Breaker Technical
| Single-module weight | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Single module weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||
The modular combination determines the applicable pile diameter. From 4 modules to 18 modules, the equipment covers pile diameters from 400 mm to 2500 mm. Larger pile sizes can be supported with a separate hydraulic pump station.
Pile Chipping Machine 5 Core Features
1. Modular Design for Different Pile Sizes
The pile chipping machine adopts a modular connection structure. By increasing or reducing the number of modules, operators can adjust the working diameter range according to different pile specifications.
This design allows one machine to serve multiple pile sizes without replacing the complete equipment structure.
2. Round and Square Pile Compatibility
The concrete pile cutter is available for both round piles and square piles. Round pile models are suitable for circular concrete piles, while square pile models can be configured with connection blocks for square pile applications.
The modular system improves equipment flexibility for different foundation projects.
3. Low-Noise Hydraulic Cutting Method
The machine works through static hydraulic pressure. Multiple cylinders apply force evenly around the pile head, reducing vibration and noise during operation.
This working method is suitable for urban construction areas where environmental impact needs to be controlled.
4. Safer Operation Process
During operation, workers do not need to directly contact the breaking area. The equipment can adapt to complex construction environments and improves operational safety compared with manual pile breaking methods.
5. Easy Installation and Transportation
The machine features a compact modular structure. Modules can be assembled and removed quickly through pin connections, making transportation and site switching easier.
The equipment can be powered by excavators, hydraulic systems with cranes, or hydraulic systems with loaders, depending on site requirements.
Pile Breaking Machine Application Conditions
Suitable Applications
The concrete pile cutter is designed for various foundation construction environments, including:
- Building foundation pile projects
- Bridge and high-speed railway construction
- Metro and underground pipeline projects
- Port and wharf pile foundations
- Water conservancy and river engineering
- Large industrial and logistics foundation projects
For building projects, the equipment can remove large quantities of pile heads with consistent cutting results. For bridge and railway projects, the controlled hydraulic process helps maintain pile body integrity.
Not Recommended Applications
The concrete pile cutter is mainly designed for concrete pile head cutting. It is not intended for:
- General concrete demolition without pile structures
- Steel structure cutting
- Rock breaking operations
- Applications outside the designed pile diameter range
Correct module selection and suitable hydraulic power supply are required to achieve normal operation.
Hydraulic Concrete Pile Breaker Compared with Traditional Methods
| Method | Working Method | Main Limitation |
| Manual breaking tools | Manual impact breaking | Low efficiency, high noise, higher safety risk |
| Blasting | Explosive demolition | Requires approvals and has site restrictions |
| Hydraulic concrete pile breaker | Hydraulic static pressure cutting | Requires suitable hydraulic equipment |
Compared with manual breaking methods, the machine provides a more efficient and controlled solution for pile head removal.
Compared with blasting, it avoids explosive-related restrictions and reduces disturbance to surrounding structures.
Pile Chipping Machine Export and Project Coverage
YG concrete pile cutter has been supplied to international construction markets, including Southeast Asia, the Middle East, Europe, Africa, and America.
Export application regions include Malaysia, the Philippines, Singapore, India, Saudi Arabia, UAE, Oman, Nigeria, South Africa, the Netherlands, Romania, Australia, and the United States.
The equipment is suitable for contractors requiring flexible pile cutting solutions for different construction environments.
Get Concrete Pile Cutter Specification and Technical Support
Choose the suitable concrete pile cutter model according to pile diameter, construction equipment, and project requirements.
Contact our technical team to get:
- Complete product specifications
- Module configuration recommendations
- Installation guidance
- Engineering support
Please feel free to contact our team, and we will recommend the most professional sales manager for this equipment to help you select the right hydraulic pile cutting solution for your project.
