Hydraulic Concrete Pile Breaker Project Background: Solving Challenges in Singapore Construction
In Singapore, foundation construction projects often require high precision, stable operation and strict environmental control due to limited working space and dense urban surroundings. A local foundation contractor faced challenges during a large-scale construction project involving multiple concrete piles.
The traditional pile head removal methods created difficulties in maintaining consistent breaking quality, controlling noise levels and protecting the remaining pile structure. The contractor needed a professional solution that could complete pile cutting work efficiently while adapting to different pile sizes and complex site conditions.
To improve the construction process, the contractor selected our hydraulic concrete pile breaker for its modular structure, stable hydraulic operation and ability to handle different concrete pile specifications. The equipment has been widely applied in foundation projects, bridge construction and other infrastructure applications.
Hydraulic Concrete Pile Breaker Technical Parameters for Singapore Application
The selected equipment was configured according to the project requirements. The main technical specifications include:
| Item | Specification |
| Product Type | Hydraulic Concrete Pile Breaker |
| Applicable Pile Diameter | 400mm – 2500mm |
| Single Module Weight | Approx. 335kg |
| Maximum Cylinder Stroke | 300mm |
| Maximum System Pressure | 300MPa |
| Suitable Excavator Tonnage | 20T – 40T |
| Structure Design | Modular combination system |
| Applicable Pile Type | Round concrete piles and square concrete piles |

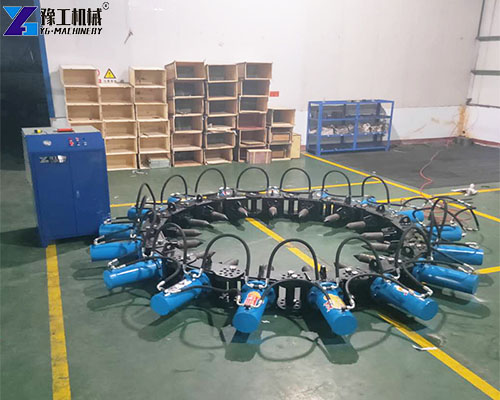

The modular design allows different numbers of modules to be combined according to pile diameter requirements. From 4 modules to 18 modules, the equipment can cover pile diameters from 400mm to 2500mm, providing flexibility for different foundation projects.
The pile crusher machine uses hydraulic power to drive multiple cylinders and applies uniform pressure around the pile head. This working method creates a controlled breaking surface while reducing damage to the remaining pile body.
Pile Crusher Machine Solution: Modular Design for Complex Foundation Conditions
For this Singapore project, the contractor required equipment that could operate efficiently in a restricted construction environment. The pile crusher machine was customized through module selection based on the actual pile dimensions and site requirements.
The main solution advantages included:
- Flexible modular combination: Different module quantities can be assembled to match various pile diameters.

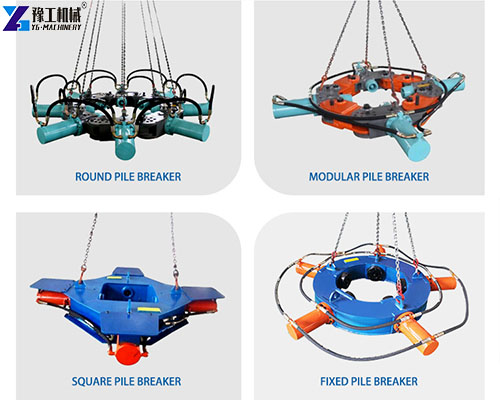

- Round and square pile compatibility: The equipment supports different pile shapes through module adjustment.
- Static hydraulic operation: The hydraulic system provides low-noise operation without strong vibration.
- Safe construction process: Operators do not need to directly contact the breaking area during operation.
Compared with traditional manual pile breaking methods, the hydraulic system provides more stable pressure distribution. The pile head can be removed with a relatively flat breaking section, which helps prepare the pile for following foundation procedures.
The project team also benefited from the equipment’s transportation convenience. The modular structure makes installation, removal and replacement easier when moving between different construction areas.
Pile Crusher Results: Reliable Performance on Singapore Job Site
After installation and operation, the hydraulic concrete pile breaker successfully supported the Singapore foundation project with stable performance.
The main results achieved included:
- Completed pile head breaking work for multiple concrete piles with consistent quality.
- Adapted to different pile diameter requirements through module adjustment.
- Maintained low-noise hydraulic operation suitable for urban construction conditions.
- Produced cleaner pile head sections for subsequent foundation reinforcement work.
The equipment’s hydraulic static pressure method avoided excessive vibration during operation, making it suitable for construction areas where surrounding structures require protection. The same characteristics make the product suitable for projects such as high-rise buildings, bridges, subway construction and underground infrastructure.
According to the project feedback, the contractor recognized the equipment’s stable operation and flexibility in handling different pile conditions. The successful application also created opportunities for further cooperation on future foundation projects.
Pile Head Breaking Machine Service and Future Cooperation
During the Singapore project, our team provided technical support from equipment selection to application guidance. The hydraulic concrete pile breaker was delivered with matching modules, hydraulic pipelines and connection accessories to ensure smooth installation and operation.
Our service focuses on helping overseas customers select the suitable configuration according to:
- Pile diameter requirements
- Construction environment
- Supporting machinery conditions
- Project application needs
With successful applications in Southeast Asia markets including Singapore, Malaysia and other regions, our pile breaking solutions continue to support global foundation construction projects.
If you are looking for a reliable solution for concrete pile head removal, contact us to explore a suitable hydraulic concrete pile breaker configuration for your project.
