You have hundreds of concrete piles sticking out of the ground.
Each one needs its head cut off – to expose the rebar, to level the top, to prep for the foundation.
Right now, your crew is using jackhammers. Slow. Loud. Exhausting.
Or you’re using a breaker on an excavator – but it damages the rebar and cracks the pile below the cut line.
There’s a better way: a pile breaker that clamps around the pile, squeezes it, and snaps the head off cleanly – in seconds.
No jackhammers. No rebar damage. No safety risks.
What Is A Pile Breaker Exactly?

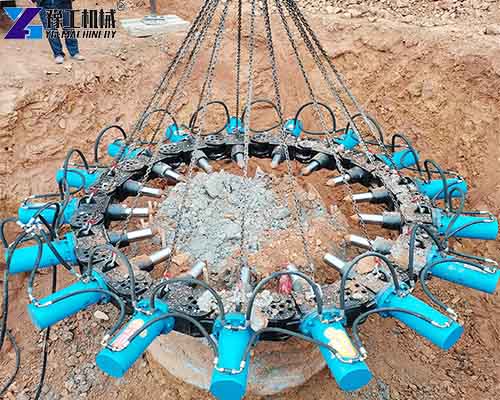

Think of it as a ring of hydraulic cylinders that wrap around a concrete pile.
You close the ring around the pile, apply hydraulic pressure, and the cylinders push wedges into the concrete.
The concrete cracks horizontally – right at the cut line. The head pops off cleanly.
The rebar stays intact. The pile below the cut line stays undamaged.
A pile breaking machine does in 10 seconds what a jackhammer crew takes 10 minutes to do.
Who Buys A Pile Head Breaking Machine?
Bridge and highway contractors – cutting piles for bridge foundations, overpasses, and retaining walls.
Building foundation crews – preparing pile caps for high‑rise buildings, industrial plants, and commercial structures.
Port and harbour constructors – cutting sheet piles and pipe piles for jetties, docks, and quay walls.
Railway and infrastructure builders – pile cutting for railway bridges, tunnels, and sound barriers.
Residential and commercial developers – cutting piles for apartment blocks, shopping centres, and underground parking.
One customer in the UAE told us: “We had 2,000 piles to cut for a new bridge. With jackhammers, it would have taken six weeks. With our pile breaker, we finished in 10 days – and the rebar was perfectly intact.”
How Does A Pile Breaker Work?
You mount the pile head breaking machine on your excavator arm – or suspend it from a crane.
You open the ring and position it over the pile head.
You close the ring – it wraps around the pile.
Then you activate the hydraulic cylinders.
The cylinders push wedges inward – they bite into the concrete.
The pressure builds until the concrete cracks – a clean horizontal break right at the cut line.
You lift the ring – the broken pile head comes with it.
You dump the waste. Move to the next pile.
One pile, 10–15 seconds. That’s it.
The Numbers You Actually Care About
Here are the single‑module specs – modules are combined to fit different pile diameters.
| Single-module weight | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| The combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Single-module weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||
How To Choose The Right Pile Breaker?
- Pile diameter – measure your piles. Choose the module count that covers your range.
- Pile type – round, square, or wall? Different rings for different shapes.
- Lifting method – excavator arm or crane? Either works – choose what you have.
- Power source – excavator hydraulics or standalone hydraulic power pack? If you don’t have an excavator, we can supply a pump station.
- Number of piles – many piles = invest in a modular system. Few piles = hire or rent.
What About Safety?
Zero workers near the pile head. The pile breaker is operated from a distance – either from the excavator cab or with a remote control.
No one is standing next to the pile when it cracks. No flying concrete. No hand‑held tools.
Safer for your crew. Safer for your project.
One Last Truth
Jackhammers are slow. Excavator breakers damage rebar.
A pile head breaking machine is fast, clean, and safe.
And it protects the rebar – so your structural connections stay strong.
👉 Email admin@chinayugongmachinery.com now. Tell me your pile diameter and pile type. I’ll recommend the right pile breaking machine within 24 hours.
Snap. Lift. Move. Done.
