In the rapidly developing region of Romania, a foundation engineering company was facing a growing challenge. The company specialized in piling and foundation work for infrastructure projects across the country—including highway bridges, commercial buildings, and industrial facilities. With European Union infrastructure funding driving major construction projects, the contractor had secured contracts for multiple large-scale developments. The bottleneck in their operations was not the piling itself, but the pile head breaking process after the concrete had cured.
Traditionally, the team used jackhammers and manual breakers to remove excess concrete from pile tops—a slow, labor‑intensive, and noisy process. Each pile took over an hour to break, and the vibration often damaged the pile’s structural integrity. With thousands of piles to process across multiple sites, the contractor was falling behind schedule.

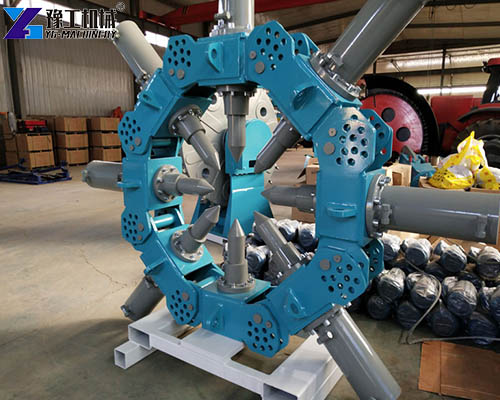

The project manager needed a faster, safer, and more efficient solution for pile head breaking. After researching options, he discovered a hydraulic pile breaker from YG Machinery—specifically the modular unit with 11 modules and a 3300kg total weight. This pile breaking machine features a pile diameter range of 1000- 1150 mm, a maximum thrust of 300KN, and a 300mm cylinder trip. The modular design allows the operator to adjust the number of modules to suit different pile diameters.
The impact was immediate. The Romanian crew now breaks each pile in under 15 minutes—a 70% reduction in processing time. The hydraulic pile cutter operates quietly, produces minimal vibration, and does not damage the pile’s structural integrity. The contractor completed the foundation work ahead of schedule and has since purchased two additional units. For a free quote on a hydraulic pile breaker for your operation, contact us today.
Contact: 【WhatsApp/WeChat/Phone】+86 159 3715 3321
Technical Parameters Of The Hydraulic Pile Breaker
Below are the key specifications for the YG modular machine. The Romanian contractor chose the 11-module configuration.
| Single-module weight | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| The combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
| Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Single-module weight | 335KG | ||||||||
| Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm | ||||||||
Why this hydraulic pile breaker suited the Romanian project:
- Modular design (4-18 modules) allowed the contractor to configure the pile breaking machine for different pile diameters, from 400mm up to 2500mm.
- 11-module configuration – covered the 1150- 1300 mm diameter range used in the infrastructure projects.
- 300KN maximum thrust provided a powerful braking force for even the toughest concrete.
- 3300kg total weight – well‑matched to the 30-40 ton excavator, maintaining stability during operation.
- 300MPa cylinder pressure – delivered consistent, reliable breaking performance.
- 300mm cylinder trip – provided sufficient stroke for effective pile head removal.
- 110mm chisel diameter – durable and replaceable for a long service life.
Three Challenges That Made Pile Breaking Difficult In Romania
The Romanian foundation contractor faced three problems common across the country’s piling and foundation sector.
Problem 1: Slow Manual Processing
Each pile took over an hour to break using jackhammers and manual breakers. With thousands of piles to process across multiple sites, the contractor was falling behind schedule and risking penalties.
Problem 2: Structural Damage
Manual breaking methods caused vibration and impact damage to the remaining pile structure. Micro-cracks and spalling compromised the integrity of the pile, requiring costly repairs or rejection.
Problem 3: High Noise And Safety Risks
Manual braking was extremely noisy, generating complaints from nearby residents and workers. Safety risks were also significant, with workers exposed to flying debris and vibration.
The hydraulic pile breaker solved all three.
How The Pile Breaking Machine Transformed The Romanian Operation

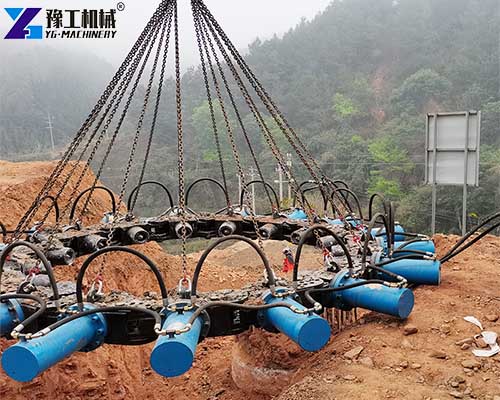

The YG hydraulic pile breaker operates on a powerful hydraulic principle. Multiple hydraulic cylinders, each driving a chisel, work together to break the concrete pile head evenly around its circumference. The machine is suspended from the excavator arm, and the operator lowers it over the pile. The cylinders apply simultaneous pressure from multiple directions, cracking the concrete and allowing the pile head to be removed cleanly.
Dramatic Speed Increase
The Romanian crew now breaks each pile in under 15 minutes—a 70% reduction in processing time. The hydraulic pile cutter’s simultaneous multi‑cylinder action works much faster than sequential manual breaking.
Zero Structural Damage
Because the pile breaking machine applies force evenly around the pile circumference, it causes no micro-cracks or spalling. The remaining pile structure remains perfectly intact, ready for foundation connection.
Low Noise And Safe Operation
The hydraulic pile breaker operates quietly, producing far less noise than jackhammers. The operator controls the machine from the excavator cab, keeping workers safely away from the breaking zone.
Versatile Modular Design
The modular design allows the contractor to reconfigure the machine for different pile diameters. The Romanian team uses the 11-module configuration for 1150- 1300 mm piles and adjusts the module count for other diameters.
For a custom equipment configuration based on your pile diameters and excavator size, please feel free to contact us.
Phone / WhatsApp / WeChat: +86 159 3715 3321
Email: admin@chinayugongmachinery.com
Real Feedback From The Romanian Foundation Contractor
After completing the foundation work, the project manager shared his results.
- Processing time: Reduced from 60+ minutes to under 15 minutes per pile—a 70% improvement.
- Structural integrity: Zero damage to remaining piles. The equipment preserved the pile structure perfectly.
- Noise complaints: Zero. The machine operated quietly throughout the project.
- Labor: Reduced from 6 workers to 2 (one excavator operator, one ground worker).
- Project timeline: Completed 3 weeks ahead of schedule.
- Payback: The hydraulic pile breaker paid for itself within the first month of use.
The project manager said, “Romania’s infrastructure boom means we are processing more piles than ever. Manual braking was killing our productivity. The YG equipment changed everything. We process piles in under 15 minutes with zero damage to the remaining structure. The modular design means we can adjust the machine for different pile diameters. It’s the best investment we have ever made.”
An operator added: “The pile breaking machine is straightforward to operate. I lower it over the pile, engage the hydraulic system, and the cylinders do the rest. The 300KN thrust handles even the toughest concrete. The 300mm cylinder trip gives me enough stroke for clean pile head removal. It’s quiet, fast, and safe.”
Ready To Transform Your Pile Breaking Operation In Romania?
The Romanian foundation contractor proved that a hydraulic pile breaker delivers faster, safer, and more cost-effective pile head removal. The YG modular machine with 300KN thrust, 300MPa cylinder pressure, and 18-module configurability handles pile diameters from 400mm to 2500mm. The unit is built with powerful hydraulic cylinders, durable chisels, and a modular design that adapts to different project requirements.
Romania’s construction and infrastructure sector continues to expand, with EU funding driving major projects across the country. YG Machinery has shipped equipment and pile breaking machines to customers across Europe and beyond. We provide export packaging, operation manuals, and spare parts support.
Stop struggling with slow, noisy manual pile breaking. Start breaking piles fast, safely, and cleanly.
【WhatsApp/WeChat/Phone】+86 159 3715 3321
Share your pile diameters, excavator size, and project scale. We will send you a quotation with shipping to Romania within 24 hours.
