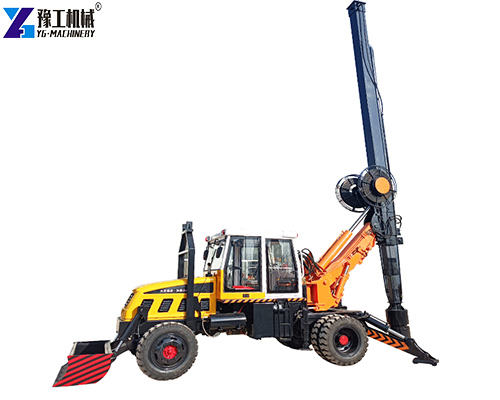

Rotary piling machine is designed for pile foundation drilling in construction and infrastructure projects. It uses rotary drilling to form pile holes for foundations, providing a mechanized solution for projects that require controlled drilling operations.
The machine can be configured for different drilling requirements according to pile diameter, drilling depth, ground conditions and construction method. Rotary drilling rigs are widely used in foundation work for buildings, bridges, highways and other infrastructure projects.
For contractors, key selection factors go beyond machine size. Drilling diameter, drilling depth, rotary performance, mobility and the matching drilling tools should also be considered before choosing a machine.
Rotary Rig Machine Technical Parameters
The exact technical specifications of the machine should be taken from the supplied product model rather than estimated from general rotary piling machine specifications.
For procurement, the following parameters should be confirmed on the product specification sheet:
| Model | YG13 | YG15 | YG16 | YG20 |
| Max.Drilling Diameter | 1000mm | 1600mm | 1500mm | 1600mm |
| Max.Drilling Depth | 13m | 15m | 16m | 20m |
| Max. Rotary torque | 50KN.m | 45kN .m | 46KN.m | 36KN.m |
| Rotary angle | 360° | 180° | 180° | 360° |
| Rotary speed | 10-45r/min | 17-45r/min | 20-46r/min | 22-43r/min |
| Dimension(m) | 3.1×1.92×3.5m | 6.8×2.27×3.2m | 10 x 2.3x 3.2 m | 9.5×2.6×3.5m |
| Weight | 9ton | 13 ton | 11 ton | 17.8 ton |
This avoids selecting equipment based only on nominal machine size. Actual drilling requirements and site conditions should determine the final configuration.
Receive Detailed Parameter List
Rotary Rig Machine Working Method and Main Components
The rotary piling machine uses a rotary drive to rotate the drilling tool while the drilling system advances into the ground. Drilled material is lifted from the hole during the drilling process.
A typical rotary drilling system includes several major components:
- Rotary drive
- Drill pipe
- Drilling tools
- Mast
- Main winch
- Hydraulic system
- Carrier or crawler chassis
- Power system
- Control system
These components work together to provide the rotary force, vertical drilling movement and machine stability required during pile-hole construction. Commercial rotary drilling rigs are commonly configured with different drilling tools to match construction requirements.
The drilling tool can be changed according to the required hole and ground conditions. This gives the equipment greater flexibility across different foundation projects.
Get Your Project‑Specific Quote
Rotary Piling Machine Features That Matter on Site
The performance of a pile foundation drilling machine depends on how the machine handles drilling force, movement and different construction conditions.
1. Rotary Drive for Controlled Drilling
The rotary drive provides the rotational force needed to turn the drilling tool.
A suitable rotary system helps maintain controlled drilling movement and supports efficient soil removal. Different commercial models use different torque and rotation ranges according to their machine size and intended application.
2. Stable Chassis for Foundation Work
The machine needs a stable base during drilling. Crawler-type configurations are commonly used for rotary piling applications because they combine working stability with movement between construction areas.
3. Flexible Drilling Tool Configuration
Different drilling tools can be selected according to soil, sand, gravel and other ground conditions. This allows one drilling system to handle different foundation requirements with the appropriate tool configuration.
4. Adjustable Drilling Range
Different rotary drilling models provide different drilling diameters and depths. For example, commercial models can cover hole diameters from below 1m to several meters, with drilling depths varying according to machine configuration.
Find The Right Solution For Your Job
Pile Foundation Drilling Machine Applications in Infrastructure Projects
The rotary piling machine is mainly used where deep foundation holes are required.
1. Building Foundations
The equipment can be used to form foundation piles for buildings and other structures. Large foundation projects can require different pile diameters and depths depending on structural design.
2. Bridge and Highway Construction
Bridge piers and highway structures require stable pile foundations. A rotary piling machine is widely used for these foundation applications.
3. Railway and Subway Projects
Railway and subway construction can involve large-scale foundation drilling. The machine configuration can be selected according to the required drilling diameter, depth and working environment.
4. Hydropower and Water Infrastructure
Rotary drilling rigs are also used in hydropower and other water-related infrastructure projects where pile foundation construction is required.
Get Your Project‑Specific Quote
Rotary Drilling Equipment FAQ
A: It is mainly used to drill pile holes for foundation construction in buildings, bridges, highways, railways and other infrastructure projects.
A: Rotary drilling rigs can be configured for different ground conditions, including clay, sand, gravel and certain rock formations, depending on the machine and drilling tool.
A: Confirm the required pile diameter, drilling depth, ground conditions, rotary performance, machine mobility and drilling tools before selecting the model.
A: Rotary drilling systems can use different drilling tools according to construction requirements and ground conditions.
A: Crawler-type rotary rigs are widely used for pile foundation construction because they combine drilling stability with the ability to move between construction areas.
Rotary Piling Machine for Your Foundation Project
The right rotary piling machine should be selected from the actual pile diameter, drilling depth, geological conditions and construction requirements. A properly matched configuration can provide a more suitable drilling solution for different foundation projects.
Contact us with your required pile diameter, drilling depth and project type to discuss the suitable rotary drilling configuration.
