What is a self-mixing concrete truck?
Think of it as a mobile concrete batching plant on wheels. It’s a single machine that loads, weighs, mixes, and transports fresh concrete—all without external support.
Think of it as a mobile concrete batching plant on wheels. It’s a single machine that loads, weighs, mixes, and transports fresh concrete—all without external support.
- Built-in loader — a front-end scoop or bucket that charges the drum directly from the stockpile.
- On-board weighing — weighs aggregate, sand, cement, and water to control mix proportions.
- Self-contained operation — no batching plant needed. The entire mixing operation happens on the machine.
- Single operator — the driver/operator controls loading, mixing, and pouring from the cab.

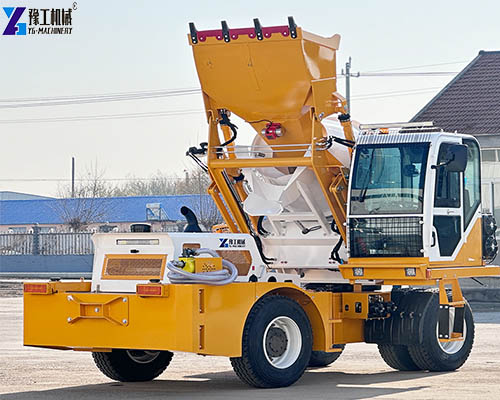

The self-loading concrete mixer truck does everything in one pass: load aggregate from the pile, add cement from bags or silo, pump water from the tank, mix to specification, drive to the pour point, and discharge.
The self batching concrete truck adds precision—the control system measures each material by weight. Batch consistency is repeatable. Every batch meets the same specification.
What Are The Applications?
- Remote construction sites with no access to ready-mix plants
- Rural road and bridge projects
- Small-to-medium building construction
- Foundation work and slab pouring
- Fence post and column installations
- Agricultural and livestock facility construction
- Repair and maintenance jobs with small batch requirements
Our Self-Mixing Concrete Truck Line
We manufacture four models covering small to large-scale operations.
| Model | YG1.8 | YG2.6 C | YG3.5 C | YG4.0 C |
| Output per Lot | 1.6 m³ | 2.6 m³ | 3.5 m³ | 4.0 m³ |
| Production Capacity | 8 m³/h | 11 m³/h | 15.5 m³/h | 18 m³/h |
| Engine Power | 78 KW | 78 KW | 85 KW | 91 KW |
| Climbing Capacity | 30° | 30° | 40° | 40° |
| Weight | 6300KG | 7000KG | 8250KG | 9000KG |
| Length/width/height | 6700*2340*2700mm | 6650*2700*3200mm | 7300*2750*3350mm | 7700*2950*3400mm |
| Wheelbase | 2500mm | 2770mm | 2750mm | 2950mm |
How To Choose A Self-loading Cement Truck?
Choose YG1.8 if:
- Daily concrete requirement under 50m³ (8 hours)
- Limited site access (narrow, tight spaces)
- Budget-conscious purchase
- Less demanding site access (flat, good roads)
- 1.6m³ batch sufficient for your pour points
Choose YG2.6 C if:
- Daily requirement 50-80m³
- Moderate site access (reasonable roads)
- Need 2.6m³ batch (more productivity than YG1.8)
- Same 78kW engine as YG1.8, but more capacity
- Weight: 7.0t—reasonable for most sites
Choose YG3.5 C if:
- Daily requirement 80-120m³
- Occasional steep slopes (40° climbing)
- Need 3.5m³ batch (higher output)
- 85kW engine—more power for the extra load
- 8.25t weight—requires stable ground
Choose YG4.0 C if:
- Daily requirement over 120m³
- High productivity needed
- Steep site access (40° climbing)
- 4.0m³ batch—highest output per trip
- 91kW engine—most power for the heaviest load
- Requires 2.95m clearance width—check site access
- 9.0t empty, 13t loaded
The 2.6 model is the most popular. It offers the best balance of capacity, weight, and maneuverability for most contractors. The YG2.6 C handles 11m³/h—sufficient for most mid-size projects. The YG3.5 C and YG4.0 C are for high-volume operations where site width and weight are not constraints.
Our 5 Service Packages
Overseas buyers get full support from selection to operation.
- Site and capacity assessment. Tell us your daily concrete requirement, site access conditions, and typical pour sizes. We recommend the right capacity.
- Width and weight check. We confirm your site access, road width, and ground conditions can accommodate the selected model.
- Pre-shipment testing. Each machine is tested with loading, weighing, and mixing before shipping.
- Remote installation and training. Video guidance, manuals, and live support for setup and operation.
- Spare parts availability. Filters, hydraulic components, seals, weigher parts—stocked and ready.
Need The Right Self-Loading Concrete Mixer Truck For Your Project?
Self-mixing concrete truck is a mobile batching plant and mixer in one machine. It loads, weighs, mixes, and pours—all from the stockpile to the pour point. The right capacity matches your daily concrete requirement, site access, and pour point size.
We build exactly that. No mismatched specs. Just reliable equipment from a supplier who supports you after delivery.
Tell us:
- Daily concrete requirement
- Site access (width, steepness, ground conditions)
- How long you need it to last (hint: well-maintained machines last 10+ years)
Phone / WhatsApp / WeChat: +86 159 3715 3321
We’ll recommend the right capacity—no upsell, just the correct fit.
