You have a farm with muddy pens, a construction site with tight corners, or a recycling yard full of scrap. A wheel loader sinks in soft ground. A large tractor cannot turn in narrow aisles. What machine fits everywhere and does everything?
A track loader skid steer. It is compact, powerful, and turns in its own length. The tracks spread weight over soft ground – no sinking. You can change tools in minutes: bucket, grapple, pallet forks, snow blade, sweeper.

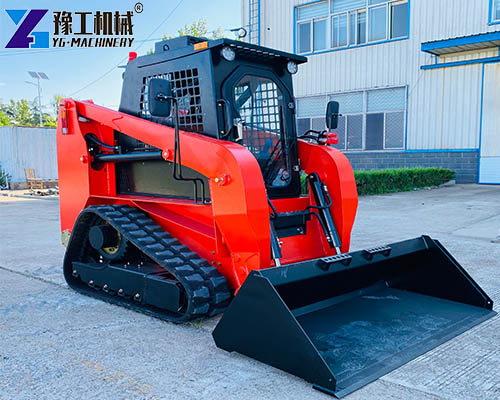

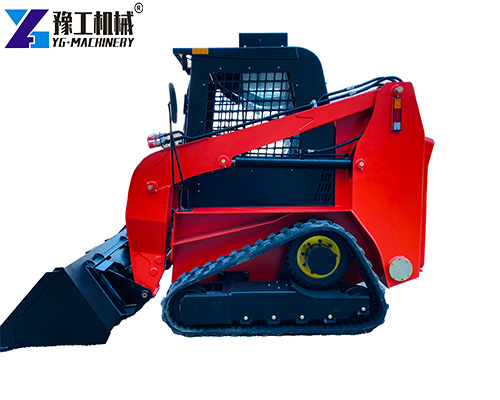

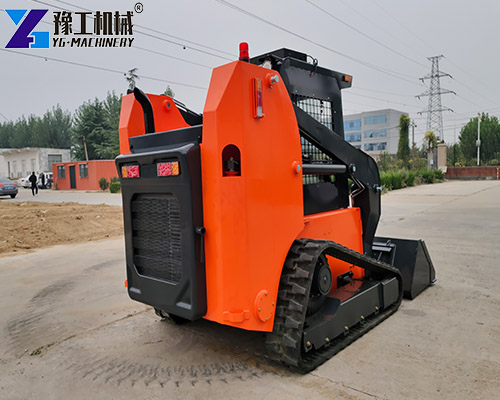

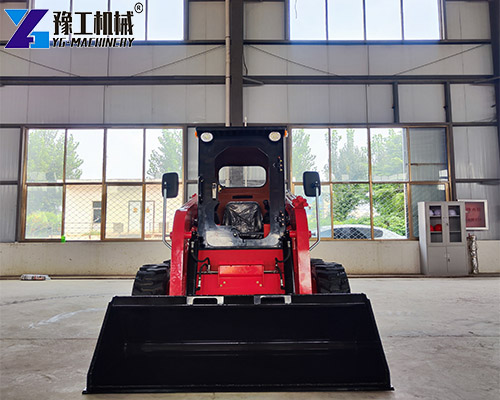

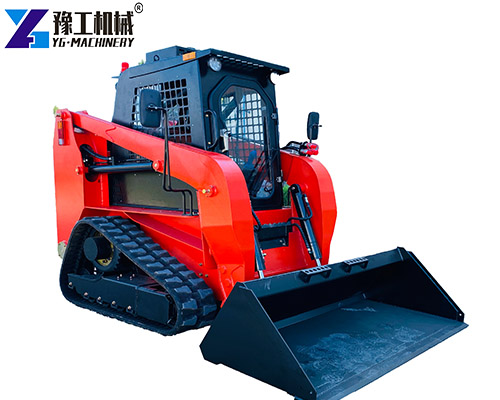

YG Machinery offers four models: W45 and W65 (wheel type) and T50 and T65 (crawler/track type). Operating load from 700 kg to 1050 kg. Engine power from 36.7 KW to 55 KW. Fuel tank from 50 to 90 liters. Top speed 10-12 km/h. All models can be exported to the US with EPA‑certified engines.
YG Skid Steer Loader – Key Parameters
| Model | W45（Wheel-type） | W65（Wheel-type） | T50（Crawler-type） | T65（Crawler-type） |
| Operating load (kg) | 700 | 1050 | 700 | 1000 |
| Max Speed（km/h） | 10 | 10 | 10 | 12 |
| Rated flux (L/min) | 80 | 89 | 80 | 89 |
| Rated power (KW) | 36.7KW | 55KW | 45KW | 55KW |
| Fuel tank capacity (L) | 70 | 75 | 50 | 90 |
| self weight bucket (kg) | 3766 | 4498 | 4074 | 5024 |
| Bucket capacity (m³) | 0.4 | 0.5 | 0.4 | 0.5 |
| Overall operating height (mm) | 3560 | 3850 | 3660 | 3900 |
| Height to bucket hinge pin (mm) | 2765 | 3020 | 2730 | 2970 |
| Hheight to top of cab (mm) | 2230 | 2295 | 2349 | 2409 |
| Height to bottom of level bucket(mm) | 2909 | 2862 | 2500 | 2790 |
| Without bucket length（mm） | 2325 | 2527 | 2170 | 2450 |
| Overall length with bucket(mm) | 3276 | 3428 | 3150 | 3400 |
| Dumping angle at maximum height(° ) | 37.5 | 32 | 40 | 40 |
| Dumping height(mm) | 2342 | 2410 | 1990 | 2270 |
| Dumping reach(mm) | 550 | 850 | 1040 | 1120 |
| Rollback o bucket on ground(° ) | 20.5 | 23 | 30 | 30 |
| Rollback of bucket at full height(° ) | 96.5 | 95 | 100 | 100 |
| Wheelbase(mm) | 991 | 1074 | 1230 | 1500 |
| Ground clearance(mm) | 185 | 205 | 230 | 200 |
| Angle of departure(° ) | 20 | 20 | 18.5 | 18.5 |
| Front turning radius without bucket(mm) | 1188 | 1320.5 | 1064 | 1230 |
| Front tuning radius(mm) | 2030 | 2095 | 1825 | 2010 |
| Rear tuning radius(mm) | 1630 | 1680 | 1264 | 1720 |
| Rear axle to bumper (mm) | 929 | 1057 | 590 | 730 |
| Tread width (mm) | 1462.5 | 1498 | 1022 | 1482 |
| Width (mm) | 1726.5 | 1805 | 1422 | 1782 |
| Bucket width (mm) | 1727 | 1828 | 1727 | 1828 |
Wheel models (W45, W65) are faster and smoother on hard surfaces. Track models (T50, T65) are better on mud, sand, or snow because they distribute weight and do not sink.
What Can A Skid Steer Loader Diesel Do?
Farming and agriculture:
- Loading grain from trucks or bins
- Handling hay bales and silage
- Cleaning out animal pens – scraping manure
- Moving feed
Construction and landscaping:
- Loading sand at a sand yard
- Moving gravel and crushed stone
- Feeding concrete mixers
- Cleaning construction waste
- Basement debris removal
Waste and recycling:
- Scrap metal handling at a recycling yard
- Loading waste into dumpsters
Specialty uses:
- Log handling at a timber mill
- Coal loading
- General truck loading
Attachments – Turn Your Track Loader Skid Steer Into A Multi‑Tool
- Bucket– Standard for digging and scooping.
- Grapple– For logs, brush, scrap.
- Bale grab – For round or square hay bales.
- Pallet forks – For lifting pallets, lumber, and machinery.
- Rotating grapple – For precise handling of odd loads.
- Snow blade – For clearing snow.
- Stone/marble fork – For slabs of stone or concrete.
The machine can also be configured as a backhoe loader with a rear excavator arm, or fitted with a telescopic boom for extra reach.
How Does A Skid Steer Loader Work?
A skid steer has a rigid frame and independent wheel or track drives on each side.
To turn: The left side drives forward while the right side drives backward. The machine pivots around its center. This gives a zero turning radius – you can spin in a tight circle.
To lift: The lift arms raise and lower the attachment. A linkage system keeps the bucket level as it rises.
To operate: Two hand levers or joysticks control left and right tracks/wheels. Foot pedals control the attachment tilt and lift. Modern skid steers use pilot controls for precise movement.
Power: A diesel engine drives hydraulic pumps. The pumps supply oil to the wheel and track motors and to the lift and tilt cylinders.
The machine is called a “skid steer” because it steers by skidding the tires or tracks sideways. This is hard on soft ground – but tracks reduce damage.
Key Advantages Of A Skid Steer Loader With Track
- Versatile – Dozens of attachments. One machine replaces a loader, forklift, sweeper, snow plow, and more.
- Compact – Narrow width and short turning radius fit in tight spaces.
- Good flotation – Tracks spread weight – does not sink in mud or sand. The T50 has 230mm ground clearance.
- Powerful – 55 KW engine with 89 L/min hydraulic flow runs high‑demand attachments like brush cutters.
- Easy to transport – Can be loaded onto a pickup trailer or flatbed.
- Operator comfort – ROPS/FOPS cab, simple controls. The W65 has 2295mm cab height – roomy.
How To Choose The Right Model？
- For mostly farm work with soft ground – Choose T50 or T65 track models. They will not sink in mud or manure.
- For hard surfaces like concrete yards or road work – Choose W45 or W65 wheel models. They are faster and smoother.
- For heavy lifting (over 800 kg) – Choose W65 (1050 kg) or T65 (1000 kg).
- For narrow spaces – T50 is only 1422mm wide – fits almost anywhere.
- For long shifts without refueling – T65 has a 90L fuel tank. W45 and W65 have 70‑75L.
If you are unsure, contact YG with your typical job and ground conditions. They will recommend the right track loader skid steer.
Get The Versatile Machine Your Job Site Needs
A track loader skid steer is one of the most useful machines you can own. It is small enough to work indoors, powerful enough to lift a ton, and versatile enough to change tools in minutes.
Contact YG with your excavator or loader needs – or simply tell them what material you move. They will help you choose the right skid steer loader diesel and provide a quote. Stop using the wrong machine – get a skid steer.
Frequently Asked Questions
The wheel (W45/W65) is faster on hard surfaces like concrete or asphalt. Track (T50/T65) is better on soft ground – mud, sand, snow, or loose gravel. The document shows that track models have higher ground clearance (230mm vs 185mm) and lower ground pressure.
W65 dumps at 2410mm – enough for most standard dump trucks. T50 only 1990mm – better for ground piles or low trailers.
Many. The document lists buckets, grapples, forks, snow blades, stone forks, and more. The machine uses a universal quick‑attach plate (standard on most skid steers). Confirm with YG.
YG provides standard export wooden crate packaging. Spare parts can be shipped with the machine or later.
About 2‑3 weeks. Confirm with YG for current lead times.
Yes – customizations include cab type and air conditioning.
