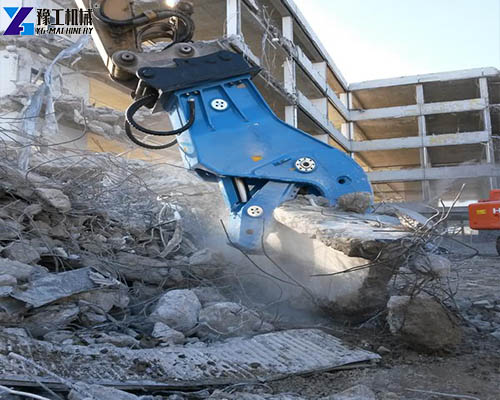

A concrete pulverizer for excavator is an excavator‑mounted hydraulic attachment. Installed on the boom of an excavator, it delivers powerful crushing and shearing force to break concrete structures, crush demolished building debris, and cut exposed rebar during demolition, concrete recycling and site‑clearing projects.
Why it’s also known as a concrete pulverizer or demolition pulverizer: its core function is pulverizing broken concrete while separating rebar from concrete rubble, so industry operators often refer to it by these two alternative names.
YG concrete pulverizer for excavator is available in five models, from YG400 to YG1700, with different sizes, maximum shear forces, working pressures, and excavator weight ranges. The models cover excavators from 6-9 tons up to 50-80 tons, making model selection mainly dependent on the excavator size and required crushing force.
Need to pick a concrete pulverizer matched to your excavator weight and site crushing requirement? Contact us today to get full specifications of YG series hydraulic pulverizers and professional selection advice, and find the ideal model for your project.
Concrete Pulverizer for Excavator Specifications
The main specifications include total dimensions, blade length, jaw opening height, jaw widths, maximum shear force, working pressure, and machine weight. These figures provide a direct basis for matching the concrete pulverizer for excavator with the excavator.
| Model | Total Length (mm) | Total Width (mm) | Blade Length (mm) | Max Opening Height (mm) | Upper Jaw Width (mm) | Lower Jaw Width (mm) | Max Shear Force (kN) | Working Pressure (bar) | Weight (kg) | Excavator Weight (ton) |
| YG400 | 1642 | 1006 | 120 | 587 | 215 | 458 | 380 | 280 | 670 | 6-9 |
| YG600 | 1895 | 1275 | 150 | 718 | 280 | 586 | 650 | 320 | 1350 | 10-15 |
| YG800 | 2168 | 1376 | 180 | 890 | 290 | 588 | 1650 | 320 | 1750 | 18-26 |
| YG1000 | 2218 | 1598 | 200 | 1029 | 380 | 720 | 2250 | 320 | 2750 | 26-30 |
| YG1700 | 3150 | 2100 | 240 | 1400 | 400 | 812 | 2503 | 320 | 4709 | 50-80 |
The excavator pulverizer models increase in overall size and weight as the recommended excavator weight increases. The maximum shear force ranges from 380 kN on the YG400 to 2503 kN on the YG1700.
Receive Detailed Parameter List
Excavator Pulverizer Attachment: What Changes Between Models?
The main differences between each concrete pulverizer for excavator are the physical dimensions, jaw dimensions, maximum opening height, maximum shear force, and recommended excavator weight.
1. YG400 for 6-9 Ton Excavators
The YG400 is the smallest model in the listed range. It weighs 670 kg and is specified for 6-9 ton excavators. Its maximum opening height is 587 mm, with a maximum shear force of 380 kN.
2. YG600 for 10-15 Ton Excavators
The YG600 weighs 1350 kg and is designed for excavators in the 10-15 ton range. Its maximum opening height reaches 718 mm, while maximum shear force is 650 kN.
3. YG800 for 18-26 Ton Excavators
The YG800 weighs 1750 kg and matches 18-26 ton excavators. It has an 890 mm maximum opening height and a maximum shear force of 1650 kN.
4. YG1000 for 26-30 Ton Excavators
The YG1000 is a 2750 kg model for 26-30 ton excavators. Its maximum opening height is 1029 mm, with a maximum shear force of 2250 kN.
5. YG1700 for 50-80 Ton Excavators
The YG1700 is the largest listed model, weighing 4709 kg. It is specified for 50-80 ton excavators and provides a 1400 mm maximum opening height and 2503 kN maximum shear force.
Key Advantages of the Concrete Pulverizer for Excavator
✅ Separate concrete and rebar in one operation You can crush concrete structures and strip rebar at the same time with this pulverizer. There is no need for an independent rebar cutter. It simplifies jobsite procedures and makes construction waste easier to recycle.
✅ Wide model range to fit various excavators The YG series includes five models compatible with excavators from 6‑9 ton up to 50‑80 ton. You can pick the right unit based on your excavator size and required crushing power for different demolition tasks.
✅ Easy mounting on excavator boom You install this hydraulic attachment directly to the excavator boom. Powered by the excavator’s hydraulic circuit, it delivers strong crushing and cutting force for demolition, site clearing and concrete recycling projects.
Get Your Project‑Specific Quote
Is YG Excavator Pulverizer Right for Your Machine?
The available specifications allow a straightforward initial check:
- Confirm the excavator’s operating weight.
- Match it with the recommended excavator weight range.
- Check the attachment weight.
- Compare the maximum opening height and jaw widths with the intended working requirements.
- Check the required working pressure against the listed model specification.
- Compare maximum shear force when selecting between suitable models.
Find The Right Solution For Your Job
YG Excavator Pulverizer Attachment
With five models covering excavators from 6-9 tons to 50-80 tons, the concrete pulverizer for excavator range provides several size options for different excavator classes.
Send us your excavator model or operating weight to identify the corresponding model. You can also request the complete specification sheet and technical support before ordering.
