In the Central Valley region of Costa Rica, a construction company specializing in infrastructure renovation was awarded a challenging project: the partial demolition and renovation of an aging bridge on a major highway corridor. The bridge, located near residential and commercial areas, required careful dismantling of reinforced concrete sections while preserving the structural integrity of the remaining portions. Traditional demolition methods—jackhammers, breakers, and blasting—were ruled out due to strict environmental regulations and the proximity of nearby buildings.
The contractor needed a cutting solution that could deliver precision, low vibration, and minimal noise. After extensive research, the team purchased a concrete rope saw from YG Machinery—specifically the hydraulic diamond wire saw with a 25KW hydraulic pump station—along with a matching generator set to ensure a reliable power supply at the remote job site. This machine, featuring an HM-80 dual-cylinder hydraulic motor, uses a flexible steel cable embedded with diamond beads to grind through reinforced concrete with near-zero vibration. The output shaft speed reaches up to 1300r/min, and the maximum wire length is 20m.
The impact was immediate. The Costa Rican crew completed the bridge section removal in half the time estimated for traditional methods. The concrete rope saw delivered clean, precise cuts with minimal noise, keeping nearby residents undisturbed. The project finished ahead of schedule, and the contractor has since secured two additional infrastructure contracts. For a free quote on a concrete rope saw for your project, contact us today.
Contact: 【WhatsApp/WeChat/Phone】+86 159 3715 3321
Technical Parameters Of The Concrete Rope Saw
Below are the key specifications for the YG hydraulic diamond wire saw and its hydraulic pump station. The Costa Rican contractor chose this model for its power and versatility.
| Wire Saw Wheel Parameters | Hydraulic Pump Parameters | ||
| Wire Drive Mode | hydraulic | Motor Power | 22/25kw |
| Motor Type | HM-80, 2 Cylinders | Voltage | 220V/380V, 50Hz |
| Minimum Input Power | 25HP/33HP | Hydraulic Pump Type | Gear Pump |
| Output Shaft Speed | 350/940/1300r/min | Main Drive Motor | 40-100L/min |
| Maximum Wire Length | 20m | Working Pressure | 15-20Mpa |
| Feeding Method | Fully hydraulic | Oil Tank Capacity | 17L |
| Wire Saw Wheel Weight | 64kg | Weight | 160kg |
| Motor Weight | 14kg | Size | 700*700*1200mm |
| Size | 1700*700*800mm |
Why this machine suited the Costa Rican bridge project:
- Maximum wire length of 20m allows continuous cutting of large bridge sections without frequent rope changes.
- Adjustable output shaft speed (350/940/1300 r/min) provided flexibility to match cutting speed to different concrete densities and reinforcement levels.
- The fully hydraulic feeding method ensured consistent, automatic tension and feed rate throughout the cutting process.
- 22/25KW motor power – delivered ample hydraulic pressure (15-20 MPa) for cutting through heavily reinforced concrete sections.
- HM-80 dual-cylinder hydraulic motor – provided reliable, smooth power delivery for extended cutting operations.
- 17L oil tank capacity – allowed continuous operation without frequent hydraulic fluid refills.
Three Challenges That Made Bridge Demolition Difficult In Costa Rica
The Costa Rican contractor faced three problems common across infrastructure renovation projects in Central America.
Problem 1: Strict Environmental And Noise Regulations
The bridge site was close to residential neighborhoods and commercial areas. Any excessive noise or vibration could lead to complaints, fines, or project delays. Traditional demolition methods—breakers and jackhammers—were simply not acceptable.
Problem 2: Structural Integrity Requirements
The project required partial demolition only. The contractor needed to remove specific sections of the bridge while keeping the remaining structure intact. Imprecise cutting could compromise the bridge’s stability.
Problem 3: Remote Site With Limited Power Access
The bridge was located in an area without reliable grid power. The contractor needed a self-contained cutting solution that could operate independently of external power sources.
The concrete rope saw and generator set solved all three.
How The Hydraulic Diamond Wire Saw Transformed The Costa Rican Project

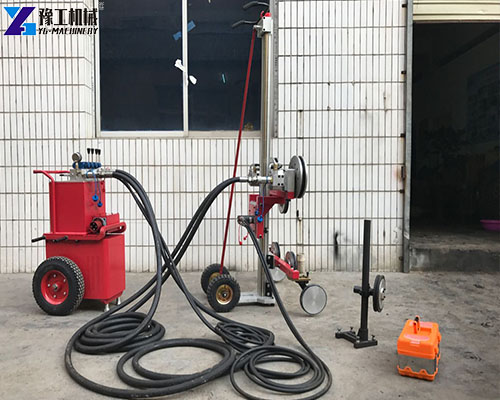

The YG hydraulic diamond wire saw operates on a simple but highly effective principle. A hydraulic pump station generates oil pressure at 15-20 MPa, which drives the HM-80 dual-cylinder hydraulic motor. The motor rotates a driving wheel, which propels a flexible steel rope embedded with diamond beads. The rope is guided along the cutting path by multiple guide wheels, grinding through reinforced concrete at speeds up to 1300 r/min.
Low Noise And Vibration
Unlike impact-based demolition methods, the concrete rope saw produces minimal noise and near-zero vibration. The Costa Rican crew worked within meters of residential areas without a single complaint. The static cutting method also protected the bridge’s remaining structure from shock damage.
Precision Cutting
The fully hydraulic feeding method ensures consistent tension and feed rate, delivering exceptionally clean, straight cuts. The Costa Rican contractor reported cut flatness within tight tolerances, eliminating the need for extensive finishing work. The precision also ensured that only the designated sections were removed, preserving the bridge’s structural integrity.
Self-Contained Power
The accompanying generator set provided reliable power to the hydraulic pump station’s 22/25KW motor, eliminating dependence on grid electricity. The 17L oil tank allowed extended operation without interruption. The contractor could work anywhere, anytime, without worrying about power availability.
Versatility Across Materials
The three-speed output shaft (350/940/1300 r/min) allowed the operator to match the cutting speed to the material. Denser concrete or heavier reinforcement required slower speeds for more torque, while softer sections could be cut faster
Real Feedback From The Costa Rican Contractor
After completing the bridge renovation project, the project manager shared his results.
- Project timeline: Completed in 6 weeks instead of the estimated 12 weeks.
- Noise complaints: Zero. The concrete rope saw operated quietly throughout the project.
- Vibration impact: None. The bridge’s remaining structure was unaffected.
- Cut quality: Clean, precise cuts with minimal finishing work required.
- Power reliability: The generator set performed flawlessly throughout the project.
- Payback: The hydraulic diamond wire saw paid for itself on this single project through time savings and avoided penalties.
The project manager said, “Costa Rica’s infrastructure is aging, and renovation projects are everywhere. But we can’t use noisy, vibration-heavy methods near homes and businesses. The YG concrete rope saw gave us exactly what we needed—quiet, precise, and fast. The 20m wire length meant we could cut large sections without stopping. The fully hydraulic feed system maintained perfect tension throughout. We finished ahead of schedule, kept our neighbors happy, and impressed our client.”
An operator added: “The machine is straightforward to operate. I set up the guide wheels, tension the rope, and select the appropriate speed—350, 940, or 1300 r/min depending on the concrete density. The fully hydraulic feed system automatically maintains consistent tension. The HM-80 motor runs smoothly, and the 17L oil tank lets us work all day without refilling. The generator set means we don’t need to worry about finding a power outlet.”
Ready To Deploy Your Concrete Rope Saw In Costa Rica?
The Costa Rican contractor proved that a concrete rope saw delivers fast, quiet, and precise cutting for infrastructure renovation projects. The YG hydraulic diamond wire saw, paired with a reliable generator set, handled the toughest reinforced concrete sections with minimal noise and zero vibration. The unit is built with an HM-80 dual-cylinder hydraulic motor, a three-speed output shaft reaching 1300 r/min, a 20m maximum wire length, and a fully hydraulic feed system that maintains consistent tension throughout the cut.
Costa Rica is investing heavily in infrastructure, with major projects including road corridor expansions, bridge replacements, and the transformative San José electric train system. YG Machinery has shipped concrete rope saws and hydraulic diamond wire saws to customers across the Americas and beyond. We provide export packaging, operation manuals, and spare parts support.
Stop struggling with noisy, imprecise demolition methods. Start cutting with precision and efficiency.
【WhatsApp/WeChat/Phone】+86 159 3715 3321
Share your project type, concrete thickness, and power availability. We will send you a quotation with shipping to Costa Rica within 24 hours.
