Egg crate making machine is a paper pulp molding machine that uses molds to form waste paper pulp into trays. Since egg trays account for most applications in this product category, the equipment is commonly used as an egg tray machine or egg tray production line.
The documented models range from 1500 to 7000 pcs/h, with different power requirements, paper and water consumption, drying configurations, machine weights, and dimensions. The available models include YG-1500-4X1, YG-2500-3X4, YG-3000-4X4, YG-4000-4X8, YG-5000-5X8, and YG-7000-6X8.
The equipment consists of three main sections: pulp preparation, forming, and drying. The forming section uses a main machine, vacuum pump, and air compressor to shape pulp on the mold before transferring the finished trays to trays or a conveyor.
Find The Right Solution For Your Job
Hot-Selling Egg Crate Making Machine Technical Parameters
The following tables list the documented specifications for each model separately for faster comparison.

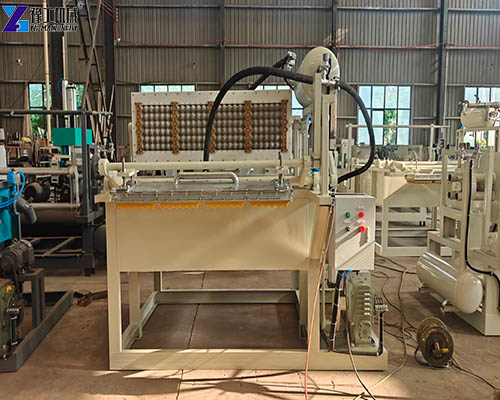

YG-1500-4X1 Egg Crate Making Machine
The YG-1500-4X1 is the smallest documented model by production capacity.
| Parameter | Specification |
| Model | YG-1500-4X1 |
| Capacity | 1500 pcs/h |
| Power | 38 kW |
| Paper Consumption | 120 kg/h |
| Water Consumption | 240 kg/h |
| Drying System | Natural drying |
| System Weight | 3000 kg |
| Main Machine Dimensions | 2800 x 2200 x 1900 mm |

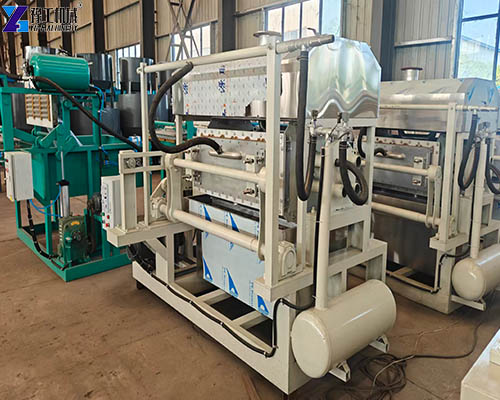

YG-2500-3X4 Egg Crate Making Machine
The YG-2500-3X4 provides a documented capacity of 2500 pcs/h and uses a multi-layer drying system.
| Parameter | Specification |
| Model | YG-2500-3X4 |
| Capacity | 2500 pcs/h |
| Power | 55 kW |
| Paper Consumption | 200 kg/h |
| Water Consumption | 400 kg/h |
| Drying System | Multi-layer drying |
| System Weight | 4000 kg |
| Main Machine Dimensions | 2900 x 1800 x 1800 mm |

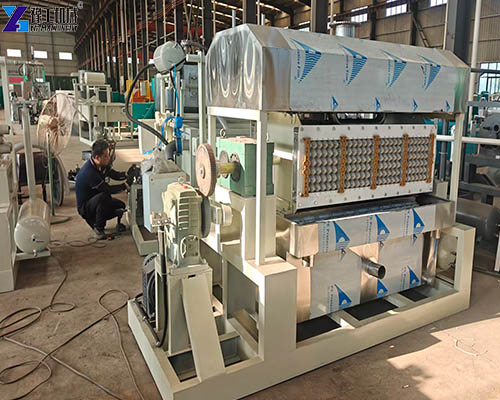

YG-3000-4X4 Egg Tray Manufacturing Machine
The YG-3000-4X4 provides a production capacity of 3000 pcs/h and uses multi-layer drying.
| Parameter | Specification |
| Model | YG-3000-4X4 |
| Capacity | 3000 pcs/h |
| Power | 60 kW |
| Paper Consumption | 240 kg/h |
| Water Consumption | 480 kg/h |
| Drying System | Multi-layer drying |
| System Weight | 4800 kg |
| Main Machine Dimensions | 3250 x 1800 x 1800 mm |
Find The Right Solution For Your Job

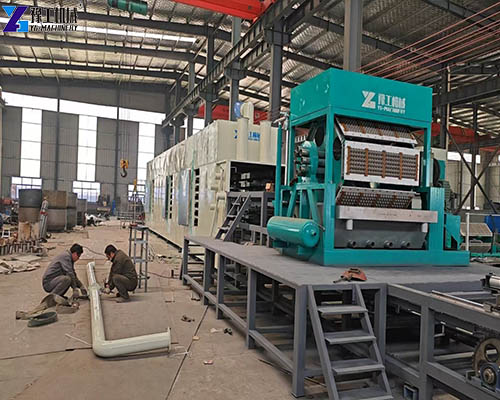

YG-4000-4X8 Machine
The YG-4000-4X8 increases the documented production capacity to 4000 pcs/h.
| Parameter | Specification |
| Model | YG-4000-4X8 |
| Capacity | 4000 pcs/h |
| Power | 95 kW |
| Paper Consumption | 320 kg/h |
| Water Consumption | 640 kg/h |
| Drying System | Multi-layer drying |
| System Weight | 7000 kg |
| Main Machine Dimensions | 3250 x 2300 x 2500 mm |

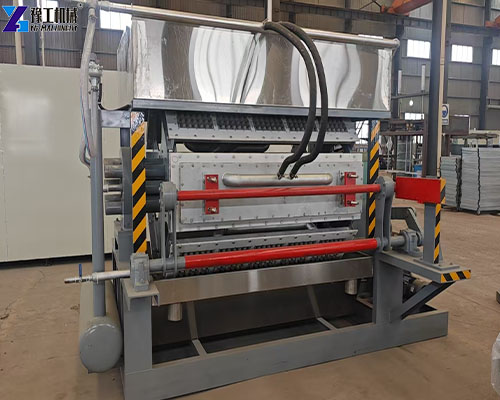

YG-5000-5X8 Egg Carton Machine
The YG-5000-5X8 provides a documented capacity of 5000 pcs/h and uses multi-layer drying.
| Parameter | Specification |
| Model | YG-5000-5X8 |
| Capacity | 5000 pcs/h |
| Power | 95 kW |
| Paper Consumption | 400 kg/h |
| Water Consumption | 800 kg/h |
| Drying System | Multi-layer drying |
| System Weight | 8000 kg |
| Main Machine Dimensions | 3300 x 2300 x 2500 mm |
YG-7000-6X8 Egg Carton Machine
The YG-7000-6X8 is the highest-capacity model in the documented series, with a capacity of 7000 pcs/h.
| Parameter | Specification |
| Model | YG-7000-6X8 |
| Capacity | 7000 pcs/h |
| Power | 120 kW |
| Paper Consumption | 480 kg/h |
| Water Consumption | 960 kg/h |
| Drying System | Multi-layer drying |
| System Weight | 10000 kg |
| Main Machine Dimensions | 3400 x 2300 x 2500 mm |
Receive Detailed Parameter List
Egg Tray Manufacturing Machine Working Process
The egg crate making machine works through three main sections: pulp preparation, forming, and drying.
1. Pulp Preparation
Waste paper and water are processed in the pulper at a documented ratio of 1:10. The pulp then enters the mixing tank, where materials such as pigments and waterproof adhesive can be added. A pulp pump transfers the mixture to the supply tank, where water is added to reach a pulp concentration of 3%-5%.
2. Pulp Forming
The forming section consists of the main machine, vacuum pump, and air compressor. Negative pressure from the vacuum pump draws the pulp onto the mold while excess water passes through the stainless steel mesh.
After vacuum dehydration, the molded paper tray is transferred by positive air pressure to the transfer mold and then blown onto trays or a conveyor.
3. Drying and Stacking
The formed trays enter the drying section through trays or a conveyor. The documented drying process uses temperatures of approximately 180-220 degrees C for 15-20 minutes, depending on the drying configuration. After drying, the trays are counted, stacked, and packed.
Get Your Project‑Specific Quote
Egg Paper Tray Making Machine Drying Options
The egg crate making machine can use different drying methods according to the documented equipment configuration.
| Drying Method | Main Characteristics |
| Natural Drying | Uses sunlight and natural air; requires more space and labor |
| Drying Box | Uses drying boxes and carts; production can continue in windy or rainy weather |
| Civil Construction Drying | Conveyor-based drying tunnel; generally 40- 70 m long |
| Multi-Layer Metal Drying | Six-layer drying chamber; approximately 18m long |
Natural drying does not require an external energy source but requires significant drying space and manual labor.
The drying box can accommodate 10-12 carts, with each cart carrying approximately 90-100 trays according to the supplied document.
For civil construction drying, the formed trays pass through a drying tunnel for approximately 15 minutes at 180-200 degrees C. The tunnel is generally 40- 70 m long.

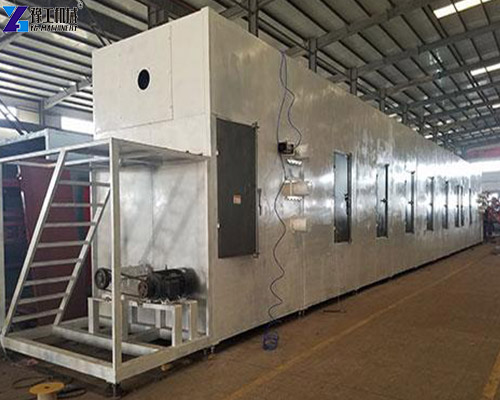

The multi-layer metal drying system uses six layers and approximately 25 minutes of drying at 180-200 degrees C. Its documented drying chamber length is 18m with six layers.
Egg Carton Machine Core Features
1. Multiple Production Capacities
The egg crate making machine series covers capacities from 1500 to 7000 pcs/h. This gives buyers several documented configurations for different production requirements.
The YG-1500-4X1 is rated at 1500 pcs/h, while the YG-7000-6X8 reaches 7000 pcs/h.
2. Waste Paper as Raw Material
The egg crate making machine uses waste paper products as the main raw material for pulp preparation.
The supplied document lists waste paper, cardboard, books, newspapers, magazines, paper bags, and other paper products as available raw materials. A4 paper and books are specifically identified as suitable materials.
3. Integrated Forming Process
The equipment combines pulp preparation, vacuum forming, positive-pressure transfer, drying, counting, stacking, and packing into a continuous production process.
The exact configuration depends on the selected model and drying method.
Find The Right Solution For Your Job
Egg Tray Manufacturing Machine Application
The machine is primarily intended for molded paper trays. Because the document states that egg trays account for more than 80% of this industry, the equipment is commonly referred to as an egg tray machine or egg tray equipment.
The same pulp molding technology can also be used for other molded paper products, such as coffee cup holders and fruit trays, when equipped with the corresponding molds.
Before selecting a model, customers should confirm:
- Required production capacity
- Available raw materials
- Required mold
- Drying method
- Available production space
- Required power configuration
Get Your Project‑Specific Quote
Egg Paper Tray Making Machine Model Comparison
| Parameter | YG-1500-4X1 | YG-2500-3X4 | YG-3000-4X4 | YG-4000-4X8 | YG-5000-5X8 | YG-7000-6X8 |
| Capacity | 1500 pcs/h | 2500 pcs/h | 3000 pcs/h | 4000 pcs/h | 5000 pcs/h | 7000 pcs/h |
| Power | 38 kW | 55 kW | 60 kW | 95 kW | 95 kW | 120 kW |
| Paper Consumption | 120 kg/h | 200 kg/h | 240 kg/h | 320 kg/h | 400 kg/h | 480 kg/h |
| Water Consumption | 240 kg/h | 400 kg/h | 480 kg/h | 640 kg/h | 800 kg/h | 960 kg/h |
| Drying | Natural | Multi-layer | Multi-layer | Multi-layer | Multi-layer | Multi-layer |
| System Weight | 3000 kg | 4000 kg | 4800 kg | 7000 kg | 8000 kg | 10000 kg |
The six models provide different combinations of production capacity, power, material consumption, drying method, and system weight. The appropriate egg crate making machine should therefore be selected according to the required output and production configuration.
Egg Carton Machine Technical Support
Choose the machine according to production capacity, raw material availability, drying method, available space, and required molded product.
The documented series provides six production models from 1500 to 7000 pcs/h. Drying options include natural drying, drying boxes, civil construction drying, and multi-layer metal drying.
Contact the technical team for the complete specification sheet, mold configuration, drying system selection, and model recommendations.
