In the Emirate of Dubai, United Arab Emirates, a foundation specialist was struggling with a difficult site. The soil profile was typical for the coastal area: loose sand on top, then a dense calcareous sand layer, then stiff silty sand. Driving sheet piles for a retaining wall using conventional methods—a hydraulic hammer or a drop weight—was painfully slow. The hammer caused excessive vibration, disturbing nearby structures. The crew could only drive a few piles per day.

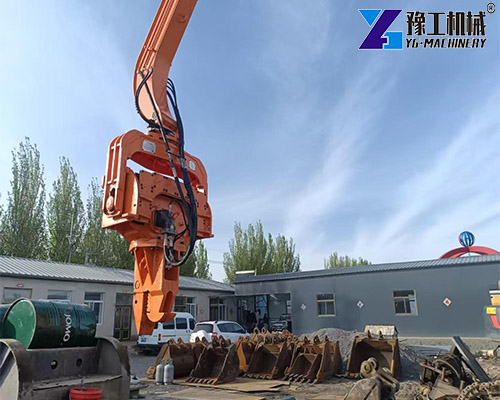

The contractor needed a faster, less intrusive solution. They decided to try an excavator post driver from YG Machinery, specifically the YG350D model mounted on a 30‑ton excavator. This excavator pile driver attachment uses high‑frequency vibration instead of impact force. The result was dramatic. Driving speed increased from three piles per day to twelve. The vibration level dropped so low that nearby buildings experienced no disturbance.
For a free quote on the right excavator pile driver attachment for your soil conditions, contact us today.
Contact: 【WhatsApp/WeChat/Phone】+86 159 3715 3321
Five Models Of Excavator Post Driver Attachment
Below are the specifications for the YG series high‑frequency vibratory pile drivers. All models are designed for excavator mounting
| Model | YG150D | YG250D | YG350D | YG400D | YG450D |
| Eccentric moment(kg*m) | 3.2 | 5.1/5.7 | 7.1 | 9.2 | 11 |
| Speed(rpm) | 2600 | 2600 | 2600 | 2600 | 2600 |
| Excitation force(t) | 24 | 38/42 | 52 | 68 | 81 |
| Operating pressure of oil system(bar) | 200 | 300 | 320 | 330 | 330 |
| Flow demand for hydraulic oil system(lpm) | 100 | 163 | 220 | 260 | 300 |
| Weight(t) | 1.2 | 1.6 | 2.4 | 2.5 | 2.6 |
| Excavator(t) | 8-12 | 20-25 | 25-35 | 35-45 | 40-55 |
Three Challenges That Made Traditional Pile Driving Slow In The UAE
The UAE contractor’s experience reflects three common problems across the country’s construction sector.
Challenge 1: Variable Soil Layers
Dubai and the northern emirates have loose surface sand, followed by dense calcareous sand (known locally as “caprock”), then stiff silty sand or weak rock. A hammer that works well in sand may get stuck in the calcareous layer. A drop weight that penetrates the caprock may not be efficient in loose sand. The crew often needed two different methods for one site.
Challenge 2: Vibration Damage to Nearby Structures
In dense urban areas like Dubai Marina or Deira, construction sites are often close to existing towers, hotels, or roads. Impact hammers send shockwaves through the ground, risking cracks and complaints. Some projects restrict impact piling to certain hours or ban it entirely.
Challenge 3: Slow Production and High Labor Cost
Traditional piling requires a dedicated crane or piling rig, plus a crew to align each pile. The hammer’s blow energy drops significantly if the pile is not perfectly vertical. Misaligned piles take twice as long to drive.
The YG350D excavator pile driver solved all three.
Why This Excavator Post Driver Is Built For UAE Soil Conditions?
The YG series high‑frequency vibratory pile driver works on a different principle than impact hammers. Two eccentric shafts rotate at high speed, generating a vertical vibratory force. The amplitude stays between 3 and 8 mm. This vibration liquefies the soil immediately around the pile, drastically reducing friction. The pile sinks under its own weight plus the driver’s weight.
Adapts to Changing Soil Layers
The UAE contractor chose the YG350D because it offers a combined flow output option. When the pile hits a dense calcareous sand layer, the operator increases the vibration frequency. The higher frequency breaks the resistance without needing to switch to impact mode. When the pile reaches stiff silty sand, the operator reduces frequency to let the vibration penetrate deeper. One machine handles the entire soil profile.
Minimal Vibration, No Shockwaves
Because the excavator post driver attachment uses vibration rather than impact, the ground around the pile does not shake. The UAE contractor measured vibration levels and found them well below local limits. They worked within meters of an occupied residential tower without any complaints or damage claims.
Fast, Single‑Operator Production
The excavator pilot drives the pile, aligns it using the excavator’s arm, and then engages the driver. One person does the entire job. No crane operator, no signalman, no waiting. The YG350D drove twelve piles in a single shift—four times the rate of the old hammer method.
For a custom quote based on your typical pile length and soil type, please feel free to contact us.
Real Feedback From The UAE Foundation Contractor
After completing the retaining wall project, the project manager shared his results.
- Productivity: Twelve piles per day versus three previously—a 300% increase.
- Cost per pile: Reduced by more than half because of fewer labor hours and no crane rental.
- No damage claims: Zero complaints from nearby property owners.
- Uptime: The excavator pile driver attachment ran for eight weeks without any hydraulic failure or structural issue.
The project manager said, “I was worried about the dense calcareous sand. I thought the vibratory driver would just bounce. But the YG350D sank the piles faster than our old hammer ever did in sand. The combined flow adjustment lets us tune the frequency on the fly. We finished two weeks ahead of schedule.”
Ready To Speed Up Your Piling Work In The UAE?
The UAE contractor proved that switching from impact hammers to high‑frequency vibration pays off quickly. Higher production, lower labor costs, zero vibration complaints, and the ability to handle challenging calcareous sand layers. The YG series excavator post driver is a field‑proven tool for sheet piles, pipe piles, and concrete piles up to 10 meters.
We provide detailed hydraulic connection diagrams, operator manuals, and spare parts support. Share your project details, and we will send you a customized quotation with a shipping estimate to the UAE.
【WhatsApp/WeChat/Phone】+86 159 3715 3321
