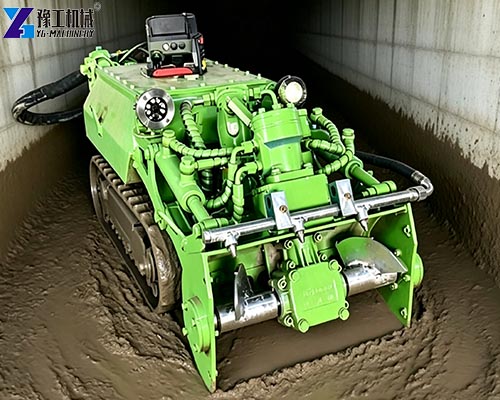

Tank cleaning robot is an intelligent dredging device designed to remove sludge, sediment, and debris from tanks, pipelines, drainage systems, rivers, and other environments. It replaces traditional manual cleaning operations with remote-controlled mechanical operation, improving work efficiency and reducing safety risks.
The equipment is widely used in municipal engineering, water conservancy projects, industrial pipeline maintenance, and wastewater treatment applications.
The pipe cleaning robot uses a hydraulic power system to drive the robot body and cleaning tools. Through high-pressure water flushing, mechanical cutting, and sludge suction systems, it can handle different types of sediment and improve cleaning efficiency in complex environments.
Tank Cleaning Robot Technical Parameters
| Model | YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200 |
| Robot dimensions | 1500*500*650mm | 1500*600*650mm | 1600*700*650mm | 1600*850*700mm | 1650*960*750mm | 1900*1200*750mm |
| Dredging width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| Track travel speed | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s |
| Robot weight | 320kg | 350kg | 380kg | 400kg | 420kg | 500kg |
| Pump output diameter | 3inch | 3inch | 4inch | 4inch | 4inch | 4inch |
| Pump flow rate(cubic meters/ hour) | 100 m³ | 100m³ | 200m³ | 200m³ | 200m³ | 200m³ |
| Hydraulic station dimensions(mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main motor power | 22kw | 22kw | 30kw | 30kw | 30kw | 45kw |
| Hydraulic system pressure | 0-16Mpa | |||||
| Particle size | 15mm | 15mm | 38mm | 38mm | 38mm | 60mm |
| Reeling system speed | 0-10r/min | |||||
| Hydraulic hoses | 50m (Standard configuration) | |||||
| Control system | Wireless remote control | |||||
| Lighting system | Underwater LED lights *2 | |||||
The tank cleaning robot series includes multiple models to match different working widths and dredging requirements. Customers can select suitable equipment according to project conditions and cleaning environments.
Sewer Cleaning Robot Core Features
1. Remote-Controlled Safe Operation
The sewer cleaning robot adopts a remote control system, allowing operators to complete cleaning tasks without directly entering dangerous environments.
This design reduces exposure risks in underground areas, inspection wells, and other locations where harmful gases or unstable conditions may exist.
2. Hydraulic Drive System
The equipment uses a hydraulic station as the power source. The standard configuration includes hydraulic hoses with a length of 50 meters.
The hydraulic system provides stable power for robot movement, cleaning tools, and sludge transportation.
3. Multiple Cleaning Methods
The tank cleaning robot can be equipped with different working systems according to project requirements:
- High-pressure water jet system for flushing hard sediment
- Mechanical cutter or auger head for breaking solid sludge
- Suction system for transferring sludge and wastewater
These systems allow the equipment to handle different types of deposits in pipelines and water environments.
4. Underwater Monitoring System
The tank cleaning robot can be equipped with underwater cameras, display systems, and LED lighting systems.
The underwater LED lights and camera options help operators monitor working conditions and improve operation accuracy in dark environments.
Pipe Cleaning Robot Application Areas
1. Municipal Drainage Maintenance
The pipe cleaning robot is suitable for urban drainage pipeline maintenance, removing accumulated sludge and reducing blockage problems caused by sediment buildup.
It can also replace manual inspection well cleaning operations and reduce worker safety risks.
2. Water Conservancy Projects
For rivers, lakes, and reservoirs, the equipment can remove bottom sediment and support ecological cleaning projects.
It is suitable for improving water conditions in large water environments.
3. Industrial Pipeline Cleaning
The tank cleaning robot can be used in industrial environments such as chemical pipelines and wastewater treatment facilities.
It provides a safer cleaning solution for areas where manual operation may involve higher risks.
Drain Cleaning Robot Types and Configurations
Pipeline Cleaning Model
Pipeline cleaning models are designed for underground drainage systems and industrial pipelines.
Models such as DN600 and DN800 are suitable for different pipeline conditions. The DN600 model requires an external pump according to customer requirements.
River and Lake Dredging Model
The tank cleaning robot can also be configured for river, lake, and reservoir sediment removal.
This type is designed for larger water areas and bottom sludge cleaning operations.
Channel and Sewer Cleaning Model
For narrow channels, urban drainage systems, and inspection areas, compact models provide flexible operation in limited spaces.
Tank Cleaning Robot Working Conditions
Suitable Conditions
The tank cleaning robot is suitable for:
- Sludge removal in tanks
- Underground drainage cleaning
- River and lake dredging
- Industrial pipeline maintenance
- Wastewater treatment facility cleaning
The maximum diving and working depth can reach 30-90m. The equipment can handle flowing sludge with up to 40% solid content under suitable conditions.
Conditions Requiring Confirmation
Before selection, customers should confirm:
- Application environment and project type
- Required wastewater processing capacity
- Required dredging width
Different working conditions require different models and configurations.
Sewer Cleaning Robot Compared with Traditional Cleaning Methods
| Cleaning Method | Working Style | Main Issue |
| Manual cleaning | Workers enter cleaning area directly | Higher safety risks and lower efficiency |
| Traditional mechanical cleaning | Requires more manual operation | Limited adaptability |
| Sewer cleaning robot | Remote hydraulic operation | Requires suitable model selection |
The sewer cleaning robot provides a safer alternative for projects requiring continuous cleaning, remote operation, and access to difficult environments.
Drain Cleaning Robot Export Applications
The tank cleaning robot has been exported to international markets including Slovenia, the United States, France, South Africa, and South Korea.
The product has received inquiries from countries such as South Africa, the United Kingdom, Australia, New Zealand, Spain, Nigeria, Chile, and Mexico.
Its compact structure and multiple configuration options allow it to adapt to different cleaning projects worldwide.
Get Tank Cleaning Robot Specifications and Support
Choose the right drain cleaning robot according to the cleaning environment, dredging width, processing capacity, and required configuration.
Contact our technical team to get:
- Product specifications
- Model selection advice
- Configuration recommendations
- Technical support
Request the complete specification sheet and find the suitable dredging solution for your project.
