Pipe cleaning robot is an intelligent cleaning device designed for removing sludge, sediment and debris from pipelines, drainage systems, waterways and industrial facilities. It uses automated operation to replace traditional manual cleaning methods, improving working efficiency, reducing safety risks and minimizing environmental impact.
The equipment is widely used in municipal engineering, water conservancy projects and industrial maintenance. With different models and configurations, the machine can handle various working environments, including underground pipelines, inspection wells, rivers, lakes and industrial sediment tanks.
Pipe Cleaning Robot Models and Application Types
Different pipe cleaning robot models are designed for different working environments.
| Type | Application |
|---|---|
| Pipeline cleaning robot | Underground drainage pipelines and industrial pipelines |
| River and lake cleaning robot | Rivers, lakes and reservoirs |
| Drainage channel cleaning robot | Narrow channels, sewers and inspection well areas |
The pipeline model includes DN600 and DN800 configurations. The DN600 model requires an external pump according to customer requirements.
Robotic Dredge Specifications and Parameters
| Model | YG-500 | YG-600 | YG-700 | YG-800 | YG-900 | YG-1200 |
| Robot dimensions | 1500*500*650mm | 1500*600*650mm | 1600*700*650mm | 1600*850*700mm | 1650*960*750mm | 1900*1200*750mm |
| Dredging width | 500mm | 600mm | 700mm | 800mm | 900mm | 1200mm |
| Track travel speed | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s | 3-15m/s |
| Robot weight | 320kg | 350kg | 380kg | 400kg | 420kg | 500kg |
| Pump output diameter | 3inch | 3inch | 4inch | 4inch | 4inch | 4inch |
| Pump flow rate(cubic meters/ hour) | 100 m³ | 100m³ | 200m³ | 200m³ | 200m³ | 200m³ |
| Hydraulic station dimensions(mm) | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2200*1200*1700 | 2120*1240*1200 |
| Main motor power | 22kw | 22kw | 30kw | 30kw | 30kw | 45kw |
| Hydraulic system pressure | 0-16Mpa | |||||
| Particle size | 15mm | 15mm | 38mm | 38mm | 38mm | 60mm |
| Reeling system speed | 0-10r/min | |||||
| Hydraulic hoses | 50m (Standard configuration) | |||||
| Control system | Wireless remote control | |||||
| Lighting system | Underwater LED lights *2 | |||||
Robotic Dredge Structure and Working Principle
The pipe cleaning robot system consists of a hydraulic power station, robot body, hydraulic hoses and sewage pipes. The standard hydraulic hose length is 50m, while additional hose length can be configured according to project requirements.
During operation, the hydraulic station provides power for the robot movement and cleaning system. The equipment moves through pipelines or underwater working areas while removing sludge through mechanical tools and pumping systems.
The main working components include:
- Driving system: Electric motor-driven track system for pipeline environments or propeller system for water applications.
- Cleaning tools: High-pressure water jet system for hard sediment removal, mechanical arms or cutters for breaking solid sludge and collecting debris.
- Suction system: Transfers sludge and wastewater into storage or treatment equipment.
- Remote control system: Allows operators to monitor and control cleaning operations from a safe position.
Water Tank Cleaning Robot Features and Benefits
The pipe cleaning robot is designed for automated cleaning operations in complex environments where traditional manual work is difficult or unsafe.
1. Automated Operation for Safer Cleaning
The equipment reduces the need for workers to enter dangerous areas such as inspection wells, underground spaces and contaminated environments. This helps reduce safety risks caused by harmful gases and difficult working conditions.
2. Multiple Cleaning Methods for Different Materials
The machine can be equipped with different working tools according to application requirements. High-pressure water jets can clean hard deposits, while mechanical cutters can break larger sludge blocks or remove obstacles such as plastic bags and branches.
3. Flexible Configuration for Different Projects
Different optional components are available, including underwater cameras, electric displays, high-pressure flushing pumps, crushing heads, explosion-proof systems, diesel pump stations, sewage pipes and wireless remote controls.
4. Suitable for Various Working Conditions
The equipment can work underwater with a maximum diving and operating depth of 30-90m. It can handle flowing sludge with up to 40% solid content under suitable conditions.
Sludge Cleaning Robot Applications in Engineering Projects
The sludge cleaning robot is suitable for different industries requiring regular sediment removal and cleaning operations.
1. Municipal Pipeline Maintenance
For urban drainage systems, the equipment helps remove accumulated sludge and debris from underground drainage pipelines. It can also clean inspection wells, reducing the risks associated with manual underground operations.
2. Water Conservancy and Ecological Projects
In rivers, lakes and reservoirs, the equipment can be used for removing bottom sediment and improving water environment conditions. It is suitable for ecological dredging projects.
3. Industrial Pipeline Cleaning

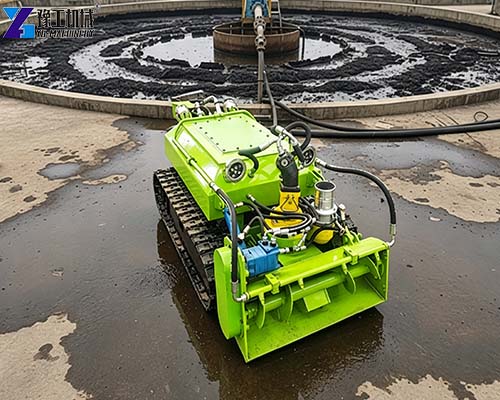

For chemical pipelines and wastewater treatment facilities, the equipment provides automated cleaning solutions. It can be used for sediment removal in settling tanks and aeration tanks to support normal equipment operation.
Pipe Cleaning Robot FAQ and Project Support
A: The machine is suitable for municipal drainage maintenance, river and lake cleaning, industrial pipeline maintenance and wastewater treatment facilities.
A: Customers should provide the application scenario, project pictures or working videos, required wastewater processing capacity per hour and required cleaning width.
A: Optional equipment includes underwater cameras, displays, high-pressure cleaning pumps, crushing heads, explosion-proof systems and wireless remote controls.
A: Due to its compact size and relatively low shipping volume, the equipment is usually shipped in two wooden cases. One case contains the power station, and the other contains the robot, hydraulic hoses and sewage pipes.
With intelligent operation, flexible configurations and wide application coverage, this pipe cleaning robot provides an efficient solution for sludge removal in pipelines, waterways and industrial cleaning projects.
