You have pallets stacked high with boxes, bags, or bottles. They need to be wrapped securely before shipping. Doing it by hand with stretch film is slow, uneven, and wastes material. One pallet takes minutes. Your workers get tired. The film tears. The load shifts in transit. What if a machine could wrap a pallet perfectly every time, in under a minute, using less film?

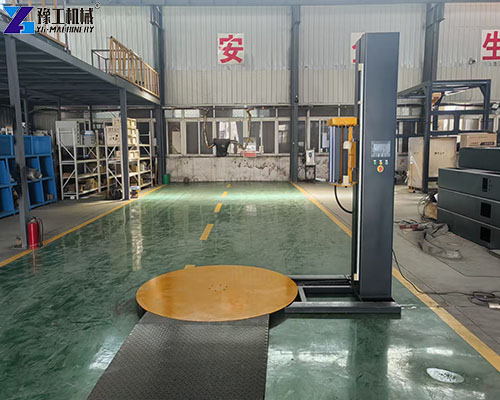

That is exactly what a pallet packing machine does. Also called a skid wrapping machine or turntable wrapping machine, it spins the pallet while a film carriage moves up and down, applying stretch film evenly and tightly. The result: a stable, secure load that survives the journey. YG Machinery offers two models: YG1650SP and YG1650SP-X (with a ramp). Both have a 1650mm turntable, a 2000kg load capacity, and PLC-programmable control. The film carriage uses a power pre-stretch system that stretches the film up to 250% before application – saving film and money.
YG Pallet Packing Machine – Key Specifications
Here are the complete specifications for both models. Compare them to find your match.
| Model | YG1650SP | YG1650SP-X（including ramp） |
| Turntable Diameter | 1650mm | 1650mm |
| Suitable Pallet Size | （500-1200）*（500-1200）mm | （500-1200）*（500-1200）mm |
| Packaging Height | 500-2000mm | 500-2400mm |
| Turntable Load Capacity | 2000kg | 2000kg |
| Machine Weight | 500kg | 600kg |
| Machine Power | 1.5kw | 1.5kw |
| Power Supply Voltage | 220V/50HZ | 220V |
| Turntable Speed | 0~12rpm | 0~12rpm |
| Applicable Film | 15~35 pre-stretch machine stretch film (25μ recommended) | 15~35 pre-stretch machine stretch film (25μ recommended) |
| Packaging Specifications | 1200*800mm, Height 600mm, Weight under 2000 kg | 1100*1100mm, Height 2300mm, Weight under 1000kg |
What the “X” model adds: The YG1650SP-X includes a ramp for easy pallet loading. It also offers a higher packaging height – ideal for taller loads. The machine is slightly heavier but has the same power and turntable speed.
How Does A Turntable Wrapping Machine Work?
A turntable wrapping machine is simple to understand. Here is how it works.
Step 1 – Load the pallet. Place the pallet onto the turntable. For the YG1650SP-X, roll it up the ramp. For the standard model, use a pallet jack or forklift.
Step 2 – Set the parameters. Use the operation screen to set the number of top wraps, bottom wraps, and total wraps. You can also set the over-wrap time. The PLC remembers your settings.
Step 3 – Start the machine. Press start. The turntable spins at the set speed (0‑12 rpm). The film carriage rises and falls along the mast, applying stretch film evenly from bottom to top. The film pre-stretch system stretches the film up to 250% before it touches the load.
Step 4 – Finish and remove. When the set number of wraps is complete, the machine stops. The turntable automatically returns to its starting position. Cut the film, secure the end, and remove the wrapped pallet.
The whole process takes 30‑60 seconds per pallet, depending on the height and number of wraps.
Why Choose A YG Pallet Packing Machine?
- Saves film. The 250% power pre-stretch system stretches the film before application. You use significantly less film per pallet – saving money over time.
- Consistent wrapping. Manual wrapping is uneven – some areas are tight, others loose. The machine applies the same tension every time. Your loads stay stable in transit.
- Faster than manual. One machine can wrap 20‑40 pallets per hour. That is much faster than a worker with a hand-held film roll.
- PLC programmable. Set your wrapping parameters once. The machine remembers them. One‑button operation. No training required.
- Adjustable speed. The turntable speed is adjustable from 0 to 12 rpm. Slow down for unstable loads. Speed up for sturdy ones.
- Adjustable film carriage. The film carriage moves up and down at adjustable speeds. You control the film overlap and tension precisely.
- Top and bottom wraps. Set different numbers of wraps for the top and bottom of the pallet. Extra wraps at the bottom keep the load stable on the pallet. Extra wraps at the top protect the load from dust and moisture.
- Automatic turntable return. After wrapping, the turntable returns to the starting position. No manual repositioning needed.
- Simple operation. The operation screen is easy to use. No special skills needed.
Core Components Of A Skid Wrapping Machine
Based on the YG1650SP design, the machine consists of these main parts:
- Turntable – The rotating platform that spins the pallet. Speed adjustable 0‑12 rpm. Driven by a variable frequency drive.
- Mast / Column – The vertical structure that guides the film carriage. Uses double chain transmission for smooth, reliable movement.
- Film carriage – Holds the stretch film roll. Moves up and down the mast at adjustable speed. Features a power pre-stretch mechanism with up to 250% stretch.
- Control panel – PLC programmable interface. Set wrapping parameters: number of wraps, film tension, carriage speed, turntable speed, and top/bottom wraps.
- Drive system – 1.5 KW motor. 220V power supply.
The YG1650SP-X adds a ramp for easy pallet loading.
Where Can You Use A Pallet Packing Machine?
The machine is suitable for any industry that ships products on pallets:
- Warehouses and distribution centers – Wrapping pallets for outgoing shipments.
- Food and beverage – Wrapping bottled drinks, canned goods, or bagged ingredients.
- Building materials – Wrapping bags of cement, tiles, or bricks.
- E-commerce fulfillment – Wrapping mixed pallets of customer orders.
- Chemical and pharmaceutical – Wrapping drums or containers of chemicals.
- Logistics and freight – Preparing pallets for truck or container shipping.
- Manufacturing – Wrapping finished goods for storage or transport.
The machine handles pallets from 500×500mm up to 1200×1200mm, with heights from 500mm to 2400mm.
Why Warehouses Choose A Turntable Wrapping Machine?
Save on film costs. Film is one of the ongoing costs of pallet wrapping. The 250% pre-stretch system cuts film usage by up to 50%. Over thousands of pallets, that adds up to significant savings.
Reduce shipping damage. A properly wrapped pallet stays stable during transport. Fewer damaged goods means fewer customer complaints and less waste.
Increase productivity. One machine wraps pallets faster than a worker can. Your staff can focus on other tasks.
Improve worker safety. No more repetitive stretching and wrapping motions. No more back strain from bending over pallets. The machine does the work.
Professional appearance. Machine‑wrapped pallets look neat and uniform. A good impression on customers and carriers.
Wrap Smarter With YG
A pallet packing machine is not a luxury – it is a productivity tool that pays for itself. YG offers two reliable models: the YG1650SP and the YG1650SP-X (with ramp). Both have a 1650mm turntable, a 2000kg load capacity, and PLC-programmable control. The 250% power pre‑stretch system saves film and money. The adjustable turntable speed (0‑12 rpm) and carriage speed give you control over the wrap quality. The machine is easy to operate, quick to install, and backed by a one‑year warranty and lifetime maintenance. Production lead time is just 3‑5 working days.
Contact YG with your pallet size, load weight, and daily wrapping volume. They will recommend the right pallet packing machine and provide a quote. Stop wrapping by hand – start wrapping with YG.
Frequently Asked Questions
The “X” model includes a ramp for easy loading and has a higher packaging height (2400mm vs 2000mm). The X model weighs 600kg vs 500kg. Both have the same turntable size and load capacity.
The turntable speed is adjustable from 0 to 12 rpm. At 10 rpm, a standard pallet takes about 30‑60 seconds to wrap
No. The machine is plug‑and‑play. Connect to a standard 220V outlet—no special foundation required.
One-year warranty, lifetime maintenance.
Yes. The PLC allows separate settings for top wraps, bottom wraps, and total wraps．
