In 2026, we received an inquiry from a customer in Russia who was looking for compact lifting equipment for construction and installation work.
The customer’s project required a crane that could operate in areas where conventional cranes may have difficulty entering or setting up. Limited working space was an important consideration, so the customer needed equipment with a compact structure, flexible movement and sufficient lifting capacity.
After discussing the project requirements and working environment, our team recommended a spider crawler crane with a 5-ton maximum lifting capacity.
The compact crawler design and hydraulic operating system made the equipment suitable for lifting work in relatively narrow construction areas. The customer was also interested in the machine’s ability to support different lifting and installation tasks.
Spider Crawler Crane Parameters for the Russia Project
We recommend the 5-ton crawler spider crane for lifting work in construction, installation and other space-restricted sites.
| Item | Specification |
|---|---|
| Maximum Lifting Capacity | 5 t at close range |
| Maximum Working Radius | 14 m × 0.5 t |
| Maximum Lifting Height | 16.8 m |
| Hoist Speed | 12 m/min, 4 ropes |
| Wire Rope | Φ11 mm × 80 m |
| Boom Type | 5-section, U-shaped |
| Boom Length | 4.7-16.5 m |
| Boom Extension Time | 12.3 m / 54 sec |
| Boom Angle | 0-78° / 13 sec |
| Slewing | 360° continuous / 38 sec |
| Travel Drive | Hydraulic motor |
| Travel Speed | 0-2.5 km/h |
| Gradeability | 25° (36%) |
| Overall Dimensions | 5000 × 1500 × 1900 mm |
| Self Weight | 6200 kg |
| Track Size | 2600 × 400 mm |
| Engine | Yunnei 490, China Stage II |
| Fuel | Diesel |
| Battery | 12V 45Ah |
| Control | Manual, remote optional |
The spider crawler crane uses hydraulic drive for traveling, hoisting, boom extension, boom luffing and slewing. Its 5-section U-shaped boom can extend from 4.7m to 16.5m, while the continuous 360° slewing system supports flexible positioning during lifting operations.
Receive Detailed Parameter List
Spyder Crane for Sale for Narrow Construction Areas
During the equipment selection process, the customer’s main concern was whether the crane could enter and work in restricted spaces.
A conventional crane may require a larger operating area for access, positioning and lifting. The spyder crane for sale is designed with a compact 1.5m machine width, allowing it to work in areas where larger lifting equipment may be difficult to use.
The rubber crawler system also provides hydraulic movement and supports a maximum travel speed of 2.5 km/h. With a listed gradeability of 25°, the machine can move across suitable inclined working areas.
The equipment is particularly suitable for applications such as:
- Building construction
- Glass installation
- Curtain wall installation
- Indoor lifting
- Roof lifting work
- Municipal construction
- Material handling
- Installation in narrow areas
For locations where access is especially restricted, the product information also indicates that the machine can be disassembled for elevator transportation.
Get Your Project‑Specific Quote
5 Ton Crawler Crane Configuration for Flexible Lifting
The Russian customer also needed lifting equipment that could provide sufficient capacity without taking up excessive working space.
YG 5 ton crawler crane offers a maximum lifting capacity of 5 tons at close range. Its maximum working radius is 14m with a 0.5-ton lifting capacity, while the maximum lifting height reaches 16.8m.
The boom can be raised from 0° to 78°, and the slewing system provides continuous 360° rotation. These functions allow operators to adjust the lifting position according to the working area.
The machine uses manual operation for the boom and outriggers, with manual travel as standard. A remote-control system is available as an option for customers who require additional operating flexibility.
An optional torque limiter can also be configured according to project requirements.

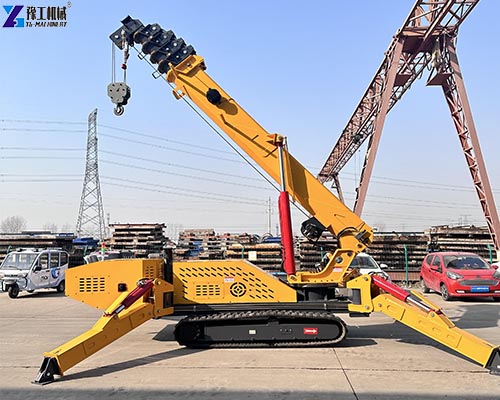

5 Ton Spider Crane Production, Inspection and Shipment
After confirming the required configuration, our team arranged production of the equipment for the Russian customer.
Before shipment, the machine was inspected according to the confirmed configuration. We provided factory inspection photographs and videos so the customer could review the equipment before delivery.
The inspection focused on the main machine structure, crawler system, boom, hydraulic components and operating functions. The customer could also confirm important specifications such as the 5-ton lifting capacity, 16.5m maximum boom length and overall machine dimensions.
After the inspection was completed, the 5 ton spider crane was prepared for export to Russia.
The compact overall dimensions of 5000 × 1500 × 1900mm also made transportation and site access important considerations during the project planning stage.
Get Your Project‑Specific Quote
Spider Crawler Crane Delivery and Customer Feedback
After delivery, our team provided the customer with operation instructions and technical guidance.
The engineers explained the basic operating procedures for traveling, boom movement, lifting and slewing. Guidance was also provided for the proper use of the outriggers and routine equipment operation.
The customer found that the spider crawler crane provided a practical lifting solution for the project’s restricted working environment.
The machine’s compact body allowed it to approach working areas that could be difficult for larger cranes. At the same time, the crawler system, hydraulic operation and multi-section boom provided the flexibility required for different lifting positions.
The combination of compact dimensions and a 5-ton lifting capacity was an important advantage for the customer’s application.
Spider Crawler Crane Support for Russian Customers
This Russia cooperation covered the process from application discussion and equipment selection to production, factory inspection, export preparation and after-sales guidance.
For customers selecting a spider crawler crane, the suitable configuration depends on lifting capacity, working radius, lifting height, available space, ground conditions and access requirements.
The 5-ton model provides a compact solution for lifting tasks where a conventional crane may have difficulty operating because of restricted space.
This Russian project shows how a 5 ton crawler crane combines compact dimensions, hydraulic movement, and flexible boom operation for construction and installation work.
If you are looking for compact lifting equipment for indoor construction, glass installation, curtain wall work or other narrow-space applications, contact us to discuss the right spider crawler crane configuration for your project.
