If you work with castings, forgings, or structural steel parts, you know the struggle. After production, every part needs surface cleaning – removing sand, scale, rust, and burrs. Manual grinding is slow and inconsistent. Chemical cleaning creates hazardous waste. Parts with complex shapes have hidden surfaces that are nearly impossible to reach.

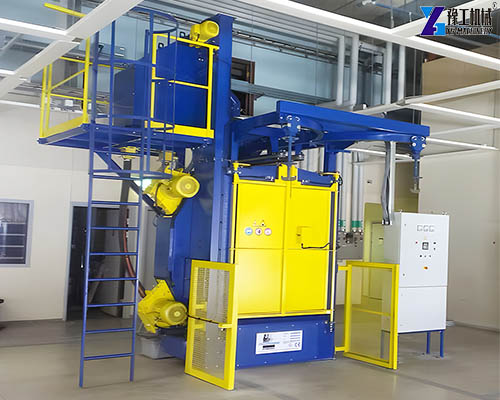

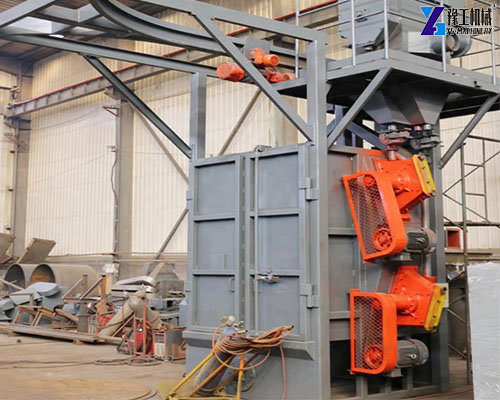

A spinner hanger shot blasting machine is the solution. It suspends workpieces on rotating hooks inside a sealed chamber. High-speed centrifugal blast wheels propel steel shot at the parts from multiple angles. As the hanger spins, every surface – including recesses and complex geometries – receives uniform cleaning. The process is fast, consistent, and completely chemical-free. No part-on-part contact means no damage to delicate or irregularly shaped components.
YG Machinery offers eight hook type shot blasting machine models: YG376, YG376B, YG378, YG3710, YG3720, YG3730, YG3750, and YG37100. They feature maximum cleaning weights from 500kg up to 10,000kg, blast wheel configurations from two to five wheels, and power ratings from 22.5kW to 97.65kW. They have high automation for unmanned operation, customizable hangers for different workpiece shapes, efficient dust removal systems, and complete safety protection devices. They are suitable for cleaning castings, forgings, weldments, heat-treated parts, and even fragile components – from small automotive parts to massive structural components.
But with eight models spanning a 20x range in capacity, how do you choose the right one? In this head-to-head comparison, we pit YG’s eight hanger-type shot blasting machine models against each other and against manual cleaning methods, focusing on maximum cleaning weight, workpiece size, blast wheel configuration, power consumption, and project suitability.
Technical Specifications of YG Spinner Hanger Shot Blasting Machine Models
All eight models are hook-type shot blasting machines designed for surface cleaning and strengthening of castings, forgings, and structural parts. Below are the core parameters.
| Item | YG376 | YG376B | YG378 | YG3710 | YG3720 | YG3730 | YG3750 | YG37100 |
| Maximum weight of cleaning(KG) | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Clean the workpiece size(mm) | 600*1200 | 700*1200 | 1000*1600 | 1200*1800 | 1400*2200 | 1600*2300 | 1800*2500 | 3000*3000 |
| Shot blasting amount (kg/min) | 2*200 | 2*200 | 2*250 | 2*250 | 3*250 | 3*250 | 4*250 | 5*250 |
| Lift (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Separator separation amount (T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
| Power (KW) | 22.5 | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 | 97.65 |
| Ventilation(m3/h) | 4000 | 4000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
All models feature a cantilever-centrifugal blast wheel design with long-life blades and simple structure. They use BE-type separators for effective abrasive separation. No pit is required for installation, making setup simpler and more cost-effective. The machines are compact in design with high productivity.
YG Spinner Hanger Shot Blasters vs Manual Cleaning Methods
Many workshops still rely on manual grinding, wire brushing, or chemical dipping for surface cleaning. Each method has serious drawbacks. Let us break down four critical dimensions and compare YG spinner hanger shot blasting machines to these alternatives.
- Cleaning Speed and Productivity: A skilled worker with a grinder might clean 20-30 small castings per hour. Larger parts take much longer. Chemical dipping requires hours of soaking plus rinsing and drying. A hook type shot blasting machine operates continuously. Parts are loaded onto the hanger, enter the blasting chamber, and emerge fully cleaned in minutes. With automation, one machine can replace an entire crew of manual cleaners. The YG37100 with five blast wheels delivers 75 tons per hour of abrasive flow – enough to clean massive structural components in a single cycle.
- Cleaning Quality and Consistency: Manual cleaning is inconsistent. One worker cleans thoroughly; another misses spots. Complex shapes have blind corners that grinders cannot reach. Shot blasting provides uniform coverage across every surface. The rotating hanger ensures that abrasive streams hit the workpiece from all directions. Even deep pockets, recesses, and irregular geometries receive complete cleaning. The result is a consistently clean surface ready for painting, coating, or further processing.
- Part Protection and Handling: Manual cleaning can damage delicate parts. Grinders leave scratches. Wire brushes can deform thin sections. Chemical dips can etch or weaken materials. A hanger-type shot blasting machine suspends parts individually with no part-on-part contact. There is no tumbling, no collision, no handling damage. This makes it ideal for fragile components, precision parts, and complex assemblies.
- Worksite Safety and Environmental Impact: Manual grinding generates hazardous dust that workers inhale. Chemical cleaning produces toxic waste that must be disposed of at high cost. Shot blasting is a dry, chemical-free process. YG machines include efficient dust removal systems that capture airborne particles, protecting workers and the environment. Complete safety protection devices ensure operator safety during operation.
Core Advantages of YG’s Spinner Hanger Shot Blasting Machines Over Manual Methods
Why do professional foundries, forges, and machine shops switch to YG hook type shot blasting machines? Four strong reasons.
- High Automation – Unmanned Operation: YG machines feature a high degree of automation that can realize unmanned operation. Once the parts are loaded and the cycle started, the machine runs automatically – loading, blasting, separating abrasives, and collecting dust. This reduces labor intensity and allows workers to focus on other tasks. For high-volume production, this automation translates directly to lower labor costs and higher throughput.
- Strong Adaptability – Customizable Hangers: The hanger system can be customized according to the shape and size of the workpiece. Whether you are cleaning small gear shafts, large structural weldments, or irregularly shaped castings, the hanger is designed to hold your specific parts securely. This adaptability means one machine handles your entire product range.
- Efficient Cleaning – Multiple Blast Wheel Configurations: YG machines offer from two to five blast wheels, depending on the model. More wheels mean more abrasive impact per cycle, faster cleaning, and better coverage of complex shapes. The YG37100 with five 250kg/min blast wheels delivers 1,250 kg of abrasive per minute – enough to strip scale and sand from the largest workpieces in a single pass.
- Long Service Life – Durable Components: YG uses cantilever-centrifugal blast wheels with long-life blades and a simple structure. BE-type separators provide effective separation. The compact, no-pit design simplifies maintenance. These durable components mean less downtime, lower maintenance costs, and years of reliable operation.
Applications Across Industries
YG spinner hanger shot blasting machines serve a wide range of industries:
- Automotive manufacturing: Cleaning welds, scale, and paint on car bodies, chassis, and engine parts. Improves corrosion resistance, surface roughness, and sealing performance.
- Machining industry: Removing molding sand and scale from castings, forgings, and welded parts. Prepares surfaces for subsequent machining.
- Aerospace: Cleaning delicate and precision components without part-on-part contact damage.
- Foundry and forging: Scale removal, burr removal, sand removal from sand castings. Surface cleaning and strengthening of small castings and forging parts.
- Steel structures: Cleaning structural components, weldments, and heat-treated parts.
- Construction, chemical, electrical machinery, and machine tools: Surface preparation for painting, coating, or further processing.
Upgrade Your Surface Cleaning Today – Get the Right Spinner Hanger Shot Blaster for Your Production Volume
Stop wasting time on slow, inconsistent manual cleaning. YG Machinery – Shaping Tomorrow Since 2005 – has supplied spinner hanger shot blasting machines to foundries, forges, and machine shops worldwide. Our high-automation machines, customizable hangers, and durable blast wheel systems are proven in the toughest industrial environments.
Contact us now for a free consultation. Tell us your typical workpiece weight, size, and monthly production volume. We will recommend the right YG model – and we will not push you toward a bigger machine than you need.
YG Machinery – Shaping Tomorrow Since 2005. We also offer mobile shot blasters, blasting rooms, dustless blasting machines, and complete surface preparation solutions.
