What is a concrete laser screed machine?

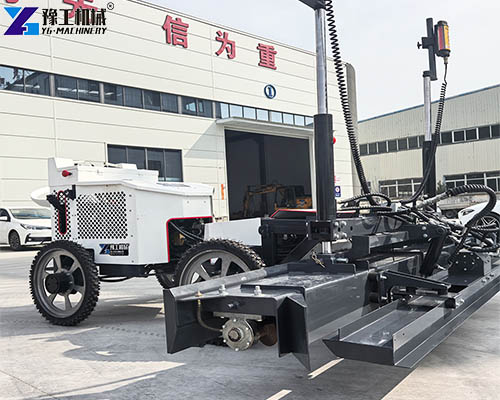

Think of it as a self-propelled screed that uses a laser as its reference. A laser transmitter on a tripod projects a 360° horizontal plane. The machine’s receiver detects the plane and automatically adjusts the screed head height. The operator just walks behind and steers.
The machine has four core systems: laser measurement, computer control, hydraulic drive, and vibration compaction. Together, they level, screed, vibrate, and compact the concrete in a single pass.
What makes it different from a regular screed? Accuracy. A concrete floor leveling machine delivers flatness within a few millimeters—far tighter than manual methods. It also vibrates the concrete, reducing air voids and improving surface durability.
A concrete laser leveling machine is the same category—some regions call it a laser leveling machine, others call it a laser screed. Concrete floor laser screed machine is a well-known brand name in the industry, often used generically for this type of equipment, but our machines offer similar high-precision performance at a competitive price point.
Our Concrete Floor Leveling Machine Line
We manufacture four models covering different operator preferences and budget levels.
| Model | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine | ||||
| Model | Generator set | GX390 Electric start | GX390 Electric start | GX390 Electric start |
| Power | 2.0kW | 13hp/3600rpm | 13hp/3600rpm | 13hp/3600rpm |
| Fuel tank (L) | 14.5 | 6.5 | 6.5 | 6.5 |
| Running device | ||||
| Drive | Motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running mode | Infinitely variable speed | Handle control, stepless speed | Handle control, stepless speed | Handle control, stepless speed |
| Running speed(m/min) | 0-36 | 0-45 | 0-65 | 0-45 |
| Suggest working speed(m/min) | 5 | 5 | 5 | 5 |
| Screed head | ||||
| Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting force | 500N | 500N | 500N | 500N |
| Vibration frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser control system | ||||
| Control type | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Forward and reverse | Handgrip control, stepless speed-walking | Hydraulic control | Handgrip control, stepless speed-walking | Hydraulic control |
| Size and weight | ||||
| Working size(mm) | 2758*2622*1980 | 2740×2659×1980 | 2578×2643×1980 | 2780*2622*1980 |
| Weight(kg) | 295 | 365 | 380 | 410 |
Where Do You Use a Concrete Floor Leveling Machine?
- Industrial factory floors
- Warehouses and distribution centers
- Large retail spaces and shopping malls
- Parking garages and underground parking
- Airport aprons and hangar floors
- Exhibition centers and convention halls
- Sports facilities and gymnasiums
- Cold storage and warehouse floors
A concrete laser screed machine is often used interchangeably—the term “laser screed” specifically emphasizes the laser-guided precision leveling aspect, which is the key value proposition for this equipment.
How To Choose a Concrete Floor Laser Screed Machine?
You’ve got concrete floors to pour. Warehouses, factories, parking garages, airport aprons—large areas that must be flat. Really flat. Traditional methods mean screed boards, manual leveling, multiple passes, and constant checking. The result? Uneven floors, expensive grinding, or worst of all—re-pouring.
A concrete floor leveling machine changes that. It uses laser-guided automatic leveling, vibrates and compacts the concrete in one pass, and delivers millimeter-accurate flatness. No manual screeding. No constant checking. Just a smooth, flat floor, fast.
But there are four models. Different screed head types—electric self-leveling, hydraulic self-leveling, manual control. Different drive systems. Different weights. Which one fits your crew, your slab thickness, and your daily pour volume?
All models have a 2500 mm screed width, 500N exciting force, and 50Hz vibration frequency. The main differences are:
- YGJX31 — lightest (295kg), generator power, motor-driven. Good for smaller slabs and intermittent use. No hydraulic complexity.
- YGJX32 — heavier, hydraulic drive. Smoother operation, better for continuous pours. Electric control for precise head adjustment.
- YGJX33 — heavier, hydraulic drive, handgrip control. Simple, direct control. No electric head adjustment—manual setting.
- YGJX34 — heaviest (410kg). Full hydraulic control. Most precise, most durable. Best for large pours and demanding flatness specs.
Weight matters: The heavier the machine, the better it stays planted during vibration. But heavier also means harder to transport and maneuver. Match weight to your slab thickness and crew size.
Feel free to contact us. We take care of everything for you with no hassle. Don’t worry about language barriers. We offer full one-stop services from model selection consultation to goods delivery.
Phone / WhatsApp / WeChat: +86 159 3715 3321
Our Service Package
Overseas buyers get full support from selection to operation.
- Project assessment. Tell us your slab area, thickness, access constraints, and flatness requirement. We recommend the right model.
- Laser system calibration. The transmitter and receiver are calibrated together before shipping. Ready to use upon arrival.
- English operation manual. Complete guide for setup, operation, and maintenance. Additional language options available.
- Remote training. Video guidance, manuals, and live support for first-time operators.
- Full export documentation. Commercial invoice, packing list, certificate of origin, customs clearance support.
- Spare parts availability. Vibration motors, laser receivers, hydraulic components, control boards—stocked and ready.
Final Takeaway
A concrete floor leveling machine is a productivity investment. Choose the wrong screed head type and the operator struggles with control. Choose the wrong weight, and it sinks on soft ground. Choose the wrong drive and maintenance is constant.
The right concrete laser screed machine matches your slab thickness, your site access, your crew preference, and your production target.
We build exactly that. No mismatched specs. Just reliable equipment from a supplier who supports you after delivery.
Need the right concrete floor leveling machine for your project?
Tell us:
- Your slab area and thickness
- Your site access and transport constraints
- Your operator preference (simple handgrip vs. hydraulic control)
- Whether you need the 3m telescopic arm option
We’ll recommend the right model—no upsell, just the correct fit.
