Laser screed machine is a high-precision machine designed for concrete floor leveling. It combines laser measurement, intelligent control, hydraulic drive, and vibration compaction into one system.
Instead of relying on manual leveling and traditional screeding methods, the machine uses a laser reference and automatic control system to adjust the screed head during operation. This helps achieve consistent floor flatness while integrating leveling, vibration, and compaction into one working process.
How Does a Laser Screed Machine Level Concrete?
The working process starts with a professional laser transmitter at the construction site. The transmitter rotates 360 degrees to establish a stable laser reference plane based on the required elevation.

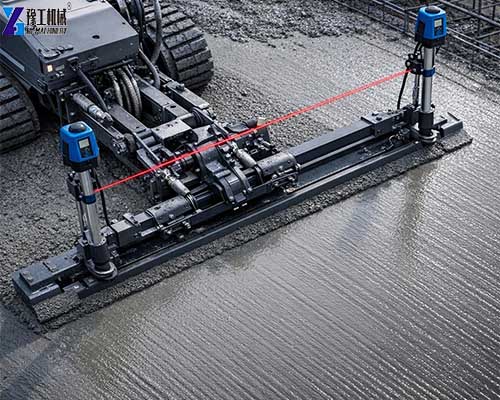

The laser receiver installed on the machine captures the laser signal and sends elevation data to the intelligent controller. The control system analyzes the data and automatically adjusts the hydraulic actuator to change the height of the screed head and blade.
At the same time, the high-frequency vibration system compacts the concrete during leveling. The machine therefore combines elevation calibration, screeding, vibration, and compaction in one continuous process. The supplied product information states that the working error can be controlled at the millimeter level.
What Systems Are Integrated into the Concrete Laser Screed Machine?
The concrete laser screed machine integrates four main systems: laser measurement and control, computer intelligent control, hydraulic transmission, and vibration compaction.
The laser control system provides the reference elevation. The intelligent control system processes the elevation information and controls the machine’s leveling action. The hydraulic system provides drive and adjustment functions, while the vibration system supports concrete compaction during screeding.
This integrated design reduces dependence on manual elevation checking and manual screeding. It is intended for standardized concrete floor construction where consistent flatness and compaction are important.
Find The Right Solution For Your Job
Laser Screed Machine Models and Technical Specifications
The YG series includes four main models: YGJX31, YGJX32, YGJX33, and YGJX34.
All four models use a 2500mm screed head width, 500N exciting force, and 50Hz vibration frequency. Their running systems, control methods, speeds, dimensions, and weights vary by model.
| Specification | YGJX31 | YGJX32 | YGJX33 | YGJX34 |
| Engine / Power | Generator set, 2.0kW | GX390, 13hp/3600rpm | GX390, 13hp/3600rpm | GX390, 13hp/3600rpm |
| Fuel Tank | 14.5L | 6.5L | 6.5L | 6.5L |
| Running Device | Drive motor | Hydraulic motor | Hydraulic motor | Hydraulic motor |
| Running Mode | Infinitely variable speed | Handle control, stepless speed | Handle control, stepless speed | Handle control, stepless speed |
| Running Speed | 0-36m/min | 0-45m/min | 0-65m/min | 0-45m/min |
| Suggested Working Speed | 5m/min | 5m/min | 5m/min | 5m/min |
| Screed Head Type | Self-leveling | Electric control, self-leveling | Self-leveling | Hydraulic control, self-leveling |
| Screed Head Width | 2500mm | 2500mm | 2500mm | 2500mm |
| Exciting Force | 500N | 500N | 500N | 500N |
| Vibration Frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Laser Control | Microcomputer laser scan | Microcomputer laser scan | Microcomputer laser scan | Microcomputer control |
| Operation Mode | Walk-behind | Walk-behind | Walk-behind | Walk-behind |
| Working Size | 2758×2622×1980mm | 2740×2659×1980mm | 2578×2643×1980mm | 2780×2622×1980mm |
| Weight | 295kg | 365kg | 380kg | 410kg |
Get Your Project‑Specific Quote
Where Can a Concrete Laser Screed Machine Be Used?
The concrete laser screed machine is designed for a wide range of concrete floor construction environments.

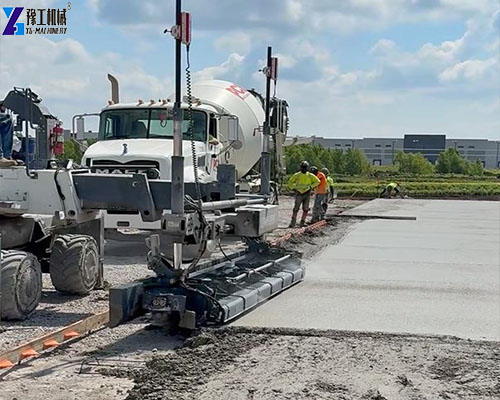

The documented application scenarios include industrial production plants, large logistics warehouses, shopping malls, underground and outdoor parking areas, airport aprons and runways, exhibition centers, stadiums, cold-chain warehouses, and industrial park floors.
These applications share a common requirement: concrete surfaces need controlled elevation, consistent flatness, and uniform compaction across the working area.
What Can a Laser Screed Machine Improve?
Traditional manual leveling depends heavily on manual elevation checking, scraping, and leveling. This can result in differences in floor height and inconsistent flatness.
A laser screed machine replaces these manual operations with laser-based reference positioning and automatic height adjustment. The machine continuously receives elevation information and adjusts the screed head during operation.
The vibration system works together with the leveling system to complete screeding and compaction in the same operation. According to the supplied product information, this helps improve concrete floor precision, construction efficiency, and compaction uniformity while reducing dependence on manual labor.
Concrete Laser Screed for Sale for Professional Floor Construction
The YG series provides four configurations for professional concrete floor construction. Each model uses a 2500mm screed head with 500N exciting force and 50Hz vibration frequency, while the running system, control configuration, operating speed, dimensions, and weight vary between models.
For customers looking for a concrete laser screed for sale, the product range provides a complete set of technical specifications for evaluating the required machine configuration.
The product information also notes that the YG series is aimed at professional concrete floor contractors, construction companies, industrial and warehouse projects, equipment rental companies, and smaller construction teams.
Get Your Project‑Specific Quote
Laser Screed Machine Price and Configuration
The laser screed machine price depends on the selected model and configuration. The supplied material does not provide a fixed product price, so an exact price should be confirmed according to the required model and configuration.
For quotation requests, the relevant project information includes the construction application, floor area, required machine type, quantity, customization requirements, delivery requirements, and any required overseas documentation.
FAQ About Laser Screed Machines
A concrete laser screed machine is a concrete leveling machine that uses laser positioning, intelligent control, hydraulic adjustment, and vibration compaction to perform high-precision concrete floor screeding.
A 360-degree rotating laser transmitter establishes the reference elevation. The machine’s laser receiver captures the signal and sends elevation data to the intelligent controller, which automatically adjusts the screed head position.
The YGJX31, YGJX32, YGJX33, and YGJX34 models all have a vibration frequency of 50Hz and an exciting force of 500N.
Among the listed models, YGJX33 has the highest running speed at 0-65m/min. YGJX31 reaches 0-36m/min, while YGJX32 and YGJX34 reach 0-45m/min. The suggested working speed for all four models is 5m/min.
The supplied application information includes industrial plants, logistics warehouses, shopping malls, parking areas, airport aprons and runways, exhibition centers, stadiums, cold-chain warehouses, and industrial park floors.
Find The Right Solution For Your Job
Get a Laser Screed Machine for Your Concrete Project
The YG series combines laser-controlled leveling, automatic adjustment, hydraulic transmission, and vibration compaction in one concrete floor construction machine. With four available models and a 2500mm screed head, it provides a professional solution for high-precision concrete leveling.
Contact us with your project requirements to get the appropriate laser screed machine configuration and quotation.
