You Know the Problem – Surface Preparation Takes Forever
If you have ever prepped a concrete floor, a road surface, or a steel deck for coating or overlay, you know the pain. Grinding is slow. Scarifying leaves uneven grooves. Chemical stripping creates hazardous waste and takes hours to dry. Your crew spends days on prep work, and the client wonders why the job costs so much.
Surface preparation is the foundation of any successful coating, overlay, or repair project. If the surface isn’t clean and profiled correctly, the new material won’t bond. It will peel, crack, or fail within months. You’ll be back to redo the work – on your own dime.
A concrete shot blasting machine is the solution. It propels steel shots at high velocity onto the surface, blasting away contaminants, laitance, old coatings, and surface imperfections. The shots impact the surface, creating a clean, uniformly textured profile that ensures excellent adhesion for new coatings, overlays, or repairs. A built-in dust collector captures the dust and debris immediately, leaving a clean surface ready for the next step. The process is fast, dust-free, and environmentally friendly – no chemicals, no water, no hazardous waste.

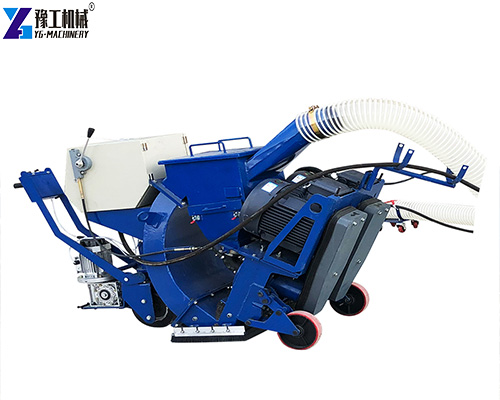

YG Machinery offers three floor shot blasting machine models: the single-wheel YG-270, and the double-wheel YG-550/600 and YG-850, covering working widths from 270mm up to 800mm. They feature high-efficiency shot blasting wheels, variable walking speeds from 0.5 to 33 m/min for precise control, and powerful dust collection systems with seven-core or eight-core automatic backflush vacuum cleaners. They are suitable for different project scales – from small floor prep jobs to large-scale road and bridge surface preparation – and are a highly reliable choice for contractors who need to prepare surfaces quickly and consistently.
But with three sizes and two configurations (single-wheel vs double-wheel), how do you choose the right one? In this head-to-head comparison, we pit YG’s three road surface shot blasting machine models against each other and against grinding and scarifying methods.
Technical Specifications of YG Concrete Shot Blasting Machine Models
| Model | YG-270(Single) | YG550/600(Double) | YG-850(Double) | |
| Shot Blasting Wheel Diameter | 200mm | |||
| Working width | 270 mm | 550/600 mm | 800 mm | |
| Walking speed | 0.5~20 m/min | 0.5~33 m/min | ||
| Concrete surface cleaning efficiency | ≥180 m2/h | ≥400 m2/h | ≥600 m2/h | |
| Steel plate surface cleaning efficiency | 15-25 m2/h | 75-100 m2/h | 100-160 m2/h | |
| Dust connection pipe diameter | 120 mm | 150 mm | ||
| Suggest the diameter of steel balls | 1.2-1.5 mm | 1.5-1.8 mm | ||
| Steel pill consumption | 10 g/m2 | |||
| Supporting dust collector | Seven-core automatic backflush vacuum cleaner | Eight-core automatic backflush vacuum cleaner | ||
| Shot wheel motor | Power consumption | 11 kW | 11*2 kW | 15*2 kW |
| Input Current | ≤ 15 A | ≤ 22*2 A | ≤ 28*2 A | |
| Walking motor | Power consumption | 0.5 kW | 1.5 kW | |
| Input Current | 1 A | 3 A | ||
| Size (mm) | 1000*300*1100 | 1950*720/775*1400 | 1950*1020*1550 | |
| Weight | 150 kg | 570 kg | 700kg | |
| Power connection requirements | Supporting the dust collector | |||
Multi-Dimensional Comparison: YG Shot Blasters vs Grinding and Scarifying
Many contractors still use grinding or scarifying for surface preparation. Each method has serious drawbacks. Let us break down four critical dimensions and compare YG shot blasters to these alternatives.
Cleaning Speed and Productivity: A floor grinder with a 300mm head might cover 30-50 m² per hour on concrete, depending on the grind depth. Scarifying is even slower and leaves deep grooves that must be filled. A concrete shot blasting machine works much faster. The YG-270 covers 180 m² per hour on concrete. The YG-550/600 jumps to 400 m² per hour. The YG-850 reaches 600 m² per hour. On steel surfaces, the difference is even more dramatic: grinding a steel plate is painfully slow, while the YG-850 cleans 100-160 m² per hour. A single YG-850 can replace an entire crew of grinders.
Surface Profile and Coating Adhesion: Grinding leaves a smooth, polished surface that doesn’t provide a good mechanical key for new coatings. Scarfing leaves deep, uneven grooves that require filling. Shot blasting creates a uniformly textured profile with millions of microscopic anchor points. The steel shots impact the surface at controlled angles and velocities, creating a consistent surface roughness that maximizes coating adhesion. Coatings applied over shot-blasted surfaces last longer and perform better – this is why shot blasting is the preferred method for industrial flooring, bridge deck overlays, and runway repairs.
Dust Control and Worksite Cleanliness: Grinding generates clouds of fine silica dust that is hazardous to breathe. You need expensive dust extraction equipment and often water suppression, which creates slurry that must be collected and disposed of. Scarifying produces large debris that must be swept and hauled away. YG shot blasters include integrated dust collection systems – the YG-270 has a seven-core automatic backflush vacuum cleaner, while the larger models have eight-core systems. The dust is captured at the source, leaving a clean, dry surface ready for immediate coating application. No slurry, no hazardous waste, no expensive disposal.
Surface Versatility – Concrete and Steel: Grinders work on concrete but struggle with steel. Scarfing damages steel surfaces. A floor shot blasting machine handles both materials with equal efficiency. On concrete, it removes laitance, curing compounds, and surface contaminants. On steel, it removes rust, mill scale, and old coatings while creating the ideal anchor profile for new paint or linings. One machine covers both applications – you don’t need separate equipment for different surfaces.
Core Advantages Of YG’s Concrete Shot Blasting Machines Over Grinding And Scarifying
Why do professional surface preparation contractors switch to YG shot blasters? Four strong reasons.
- High Efficiency with Low Steel Shot Consumption: YG shot blasters consume only 10 grams of steel shot per square meter of surface. This is remarkably economical – a full day’s work on a large floor consumes relatively little media. The shots are collected, separated from dust, and recycled within the machine, so you’re not constantly buying new media. Compare this to grinding discs that wear out every few hours or scarifying teeth that need frequent replacement.
- Variable Speed Control for Different Surfaces: The YG-270 offers walking speeds from 0.5 to 20 m/min, while the larger models go up to 33 m/min. This allows you to adjust the machine’s speed to match the surface condition. Slow down on heavily contaminated or uneven surfaces to ensure thorough cleaning. Speed up on clean or soft surfaces to maximize productivity. You control the profile depth and cleaning intensity simply by adjusting the walking speed.
- Powerful Motors for Continuous Heavy-Duty Operation: The YG-270’s shot wheel motor delivers 11 kW of power. The YG-550/600 uses dual 11 kW motors (22 kW total). The YG-850 uses dual 15 kW motors (30 kW total). This power ensures the shot wheels maintain high rotational speed even under load, delivering consistent impact energy across the entire working width. The walking motors (0.5 kW on the YG-270, 1.5 kW on the larger models provide smooth, controllable movement even on uneven surfaces.
- Automatic Backflush Dust Collection – No Downtime for Cleaning: All YG models feature automatic backflush vacuum cleaners. The system periodically reverses airflow to clean the filter elements, maintaining suction efficiency without manual intervention. You don’t have to stop work to shake or replace filters. The seven-core system on the YG-270 and the eight-core system on the larger models ensure consistent dust capture even during extended operation. This means fewer stops, less dust exposure for your crew, and a cleaner worksite.
Upgrade Your Surface Preparation Today – Get the Right Shot Blaster for Your Projects
Stop wasting time on slow grinding and messy scarifying. YG Machinery – Shaping Tomorrow Since 2005 – has supplied concrete shot blasting machines to surface preparation contractors worldwide. Our variable-speed machines, high-power shot wheels, and automatic backflush dust collectors are proven on concrete floors, steel decks, and road surfaces.
Contact us now for a free consultation. Tell us your typical project size, surface type, and daily production targets. We will recommend the right YG model – and we will not push you toward a bigger machine than you need.
