You have a concrete floor covered in old epoxy, stubborn paint, or years of grease and grime. You need to strip it clean and prepare the surface for a new coating. Manual grinding takes forever and creates clouds of dust. Chemical strippers are messy, toxic, and leave residue. What if you could clean and profile the entire floor in hours, with no dust and no chemicals? That is exactly what a concrete floor bead blaster does. It propels small steel beads at high speed onto the concrete surface using centrifugal force.
The beads impact the surface, removing old coatings, dirt, laitance, and contaminants while simultaneously creating a textured profile that improves coating adhesion. The process is dry, dust-free, and environmentally friendly. YG Machinery offers three models of concrete floor shot blasting machines: the compact YG-270 (single motor), the mid-size YG550/600 (double motor), and the powerful YG-850 (double motor). Working widths range from 270mm up to 800mm. Concrete surface cleaning efficiency ranges from 180 m²/h up to an impressive 600 m²/h. This article explains the specifications, how the machine works, and why a shot blasting machine for concrete is the best choice for industrial and commercial floor preparation.

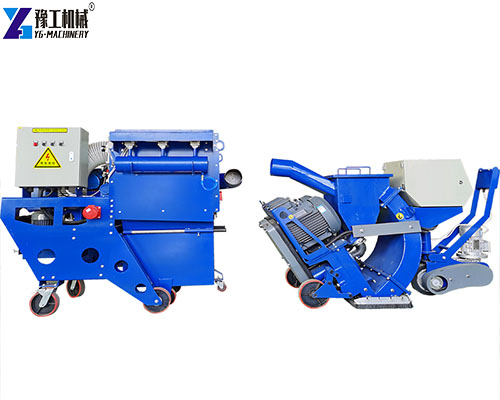

YG Concrete Floor Bead Blaster – Key Specifications
Here are the complete specifications for all three models from YG. Choose based on your project size and required productivity.
| Model | YG-270(Single) | YG550/600(Double) | YG-850(Double) | |
| Shot Blasting Wheel Diameter | 200mm | |||
| Working width | 270 mm | 550/600 mm | 800 mm | |
| Walking speed | 0.5~20 m/min | 0.5~33 m/min | ||
| Concrete surface cleaning efficiency | ≥180 m2/h | ≥400 m2/h | ≥600 m2/h | |
| Steel plate surface cleaning efficiency | 15-25 m2/h | 75-100 m2/h | 100-160 m2/h | |
| Dust connection pipe diameter | 120 mm | 150 mm | ||
| Suggest the diameter of steel balls | 1.2-1.5 mm | 1.5-1.8 mm | ||
| Steel pill consumption | 10 g/m2 | |||
| Supporting dust collector | Seven-core automatic backflush vacuum cleaner | Eight-core automatic backflush vacuum cleaner | ||
| Shot wheel motor | Power consumption | 11 kW | 11*2 kW | 15*2 kW |
| Input Current | ≤ 15 A | ≤ 22*2 A | ≤ 28*2 A | |
| Walking motor | Power consumption | 0.5 kW | 1.5 kW | |
| Input Current | 1 A | 3 A | ||
| Size (mm) | 1000*300*1100 | 1950*720/775*1400 | 1950*1020*1550 | |
| Weight | 150 kg | 570 kg | 700kg | |
| Power connection requirements | Supporting the dust collector | |||
How Does a Concrete Floor Bead Blaster Work?
A cement blasting machine is a mechanical surface preparation machine. Here is the step-by-step process.
Step 1 – Propel the media. The machine uses a centrifugal blast wheel – a rotating wheel with blades or vanes – to hurl small steel beads (shot) at high speed onto the concrete surface.
Step 2 – Impact and clean. The steel beads impact the surface at high velocity. They break up old coatings, paint, glue, mastic, oil stains, dirt, and laitance. At the same time, the impact creates a micro-rough profile on the concrete, which improves adhesion for new coatings like epoxy or polyurethane.
Step 3 – Recover and recycle. This is the most important feature. The machine has a “captive blast system”. Immediately after impact, a powerful vacuum system sucks up the spent steel beads, pulverized contaminants, and concrete dust. An air-wash separator cleans the reusable steel shot and returns it to the hopper for recirculation, while depositing fine debris into a connected dust collector. The dust collector ensures dust-free operation.
Step 4 – Leave a clean, dry surface. The floor is clean, textured, and dry. No drying time needed. You can apply coatings or overlays immediately.
The entire system is enclosed – no dust escapes into the workplace. No water, no chemicals, minimal waste.
Where Can You Use a Shot Blasting Machine for Concrete?
The concrete floor bead blaster is versatile and used across many industries. Here are the main applications.
1. Coating preparation. Preparing warehouse floors, factory floors, parking garages, and industrial plant surfaces before applying epoxies, polyurethanes, or other protective coatings. The textured profile ensures optimal adhesion.
2. Adhesive and coating removal. Efficiently stripping old, deteriorated coatings, paint, glue, mastic, and residual adhesives from floor surfaces.
3. Contaminant removal. Eliminating oil stains, grease, grime, and other embedded contaminants that compromise the bond of new coatings.
4. Surface safety. Creating a coarse, slip-resistant texture on floors in wet environments, industrial kitchens, loading docks, walkways, bridge decks, and airport runways.
5. Bridge and road deck preparation. Used extensively for large infrastructure projects to prepare concrete or steel bridge decks for overlays or protective treatments.
6. Marking line cleaning and removing road markings and other surface lines.
7. Rust removal. Effective for removing rust and mill scale from steel surfaces.
Advantages of Using a Concrete Floor Bead Blaster
Here are the real benefits that make this machine the preferred method for surface preparation.
1. Superior surface quality. The blasting process creates an ideal surface profile for coatings to bond, improving durability and longevity.
2. Speed and efficiency. Bead blasters significantly reduce project time and labor costs. The YG-850 cleans 600 m² of concrete per hour – that is 6,000 m² in a single shift.
3. Dust-free and clean. The integrated dust collector ensures minimal airborne dust, providing a safer and cleaner working environment. No dust clouds. No respiratory hazards.
4. Eco-conscious operation. No water or chemicals are needed. The process is dry, so there is no runoff, no hazardous waste disposal, and no chemical residue.
5. Cost-effective. Low operational costs due to reusable blasting media (recycled steel shot) and low energy consumption. Steel shot consumption is only 10 g/m².
6. Uniform results. Provides consistent texture and cleanliness across the entire surface, ensuring professional-quality results.
7. Does not change surface elevation. The YG models preserve the original surface elevation – critical for roads and runways, not affecting subsequent work.
8. Precise operation. Treat local areas like wheel tracks without needing to do full-area work. For road repairs, this reduces workload and saves resources.
Prepare Concrete Floors Faster with YG
A concrete floor bead blaster is the most efficient, clean, and cost-effective way to prepare concrete surfaces for coatings and overlays. YG offers three models to match any project size: the YG-270 (single motor, 270mm working width), the YG-550/600 (double motor, 550/600mm working width), and the YG-850 (double motor, 850mm working width). The machines are powerful, dust-free, and environmentally friendly. They remove coatings, contaminants, and laitance while creating a uniform profile that improves coating adhesion. With concrete cleaning efficiency up to 600 m² per hour, the YG-850 can handle the largest industrial projects.
Contact YG with your project size and floor condition. They will recommend the right shot blasting machine for concrete and provide a quote. Stop grinding and stripping by hand – start blasting.
Frequently Asked Questions
It is a mechanical surface preparation machine that uses centrifugal force to propel small steel beads (shot) against concrete surfaces. It removes coatings, contaminants, and laitance while creating a textured profile for coating adhesion.
For a warehouse floor (medium to large area), choose the YG-550/600 or YG-850. The YG-850 cleans 600 m² per hour – perfect for large spaces.
Yes. The machine has a captive blast system with a powerful dust collector. Dust is sucked up immediately and filtered. The workplace stays clean.
