You want to start a brick production business. Or you already have one and need to scale up. Manual brick making is slow, labor-intensive, and inconsistent. What if you could produce thousands of high-quality bricks every day with just a few operators?
Fully automatic brick making machine is the answer. It takes raw materials like cement, sand, stone powder, fly ash, and water, mixes them scientifically, and presses them into solid bricks or hollow blocks – no firing needed. These are “unfired” bricks that cure in the sun and are ready for sale in days.
YG Machinery offers the machine model YG-QT4-15. It has a 15-second molding cycle, produces 8000-10000 bricks per day, and operates at 16Mpa pressure. The machine makes hollow blocks, porous blocks, standard bricks, and pavers. It can produce up to 57,600 standard bricks in an 8-hour shift. The system includes the main machine, feeder, pallet feeder, stacker, hydraulic station, control cabinet, mixer, conveyor belt, and palletizer.

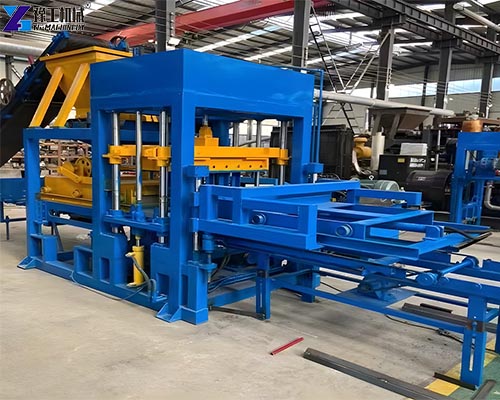

YG Fully Automatic Brick Making Machine
Here are the complete technical parameters for the YG-QT4-15 brick block making machine.
| Model | YG-QT4-15 |
| Power | 27.2KW |
| Molding cycle(second) | 15S |
| Capacity | 4-7 bricks each mold/time |
| Daily output | 8000-10000pcs |
| Forming method | Hydrauliquement |
| Pression nominale | 16Mpa |
| Transmission mode | Vibration transmission |
| Dimension(mm) | 5900*2200*2400 |
| weight | 2100KG |
Production Capacity – What Can This Automatic Brick Machine Produce?
The YG-QT4-15 fully automatic brick making machine produces multiple brick types. Here is the production capacity for each.
| Block Name | Size (L*W*H)mm | Molding Cycle | QTY/Mould | QTY/hour | Qty/8hr |
| Hollow block | 400*200*200 | 15-20s | 6pcs | 1080-1440pcs | 8640-11520pcs |
| Hollow block | 400*150*200 | 15-20s | 7pcs | 1260-1680pcs | 10080-13440pcs |
| Hollow block | 400*100*200 | 15-20s | 11pcs | 1980-3640pcs | 15840-21120pcs |
| Porous block | 240*115*90 | 15-20s | 15pcs | 2700-3600pcs | 21600-28800pcs |
| Standard brick | 240*115*53 | 15-17s | 30pcs | 6300-7200pcs | 50400-57600pcs |
| Paver | 225*112.5*60 | 20-25s | 15pcs | 2160-2700pcs | 17280-21600pcs |
The machine can switch between brick types by changing the mold. This flexibility allows you to respond to different customer orders without buying multiple machines.
Why Choose a Fully Automatic Brick Making Machine?
Here are the real benefits that make a fully automatic brick making machine the right choice for your business.
1. High productivity. A 15-second cycle produces 30 standard bricks per mold. That is over 7,000 bricks per hour. Manual methods produce 500-1000 bricks per day. The automatic brick machine is 50-100 times faster.
2. Consistent quality. Manual brick making produces uneven sizes and strengths. The machine uses hydraulic pressure and vibration to produce uniform, high-strength bricks every time.
3. No firing needed. This is an “unfired” brick machine. The bricks cure in the sun. No kilns, no fuel costs, no emissions. Lower production cost and faster time to market.
4. Low labor cost. One automatic brick machine replaces 20-30 manual workers. Just 3-4 operators run the whole line – from mixing to palletizing.
5. Multi-product capability. One machine produces hollow blocks, standard bricks, porous blocks, and pavers. Change the mold and produce a different product in minutes.
6. Hydraulic forming. The 16 MPa hydraulic pressure produces dense, strong bricks with excellent dimensional accuracy. Less breakage, higher customer satisfaction.
7. Complete production line. The YG fully automatic brick machine system includes everything you need: mixer, conveyor, brick machine, pallet feeder, stacker, and palletizer. No separate equipment to source.
8. Uses waste materials. The machine uses fly ash, slag, stone powder, and other industrial waste. Low raw material cost and environmentally friendly.
How Does a Fully Automatic Brick Making Machine Work?
A brick making machine is a complete system. Here is how the production line works.
Step 1 – Mixing. Raw materials – cement, sand, stone powder, fly ash, and water – are loaded into the mixer. The mixing ratio is typically: 8-15% cement, 40-55% stone powder and gravel, 40-45% sand, and 10% water. The mixer blends everything into a uniform wet mix.
Step 2 – Feeding. The conveyor belt moves the mixed material to the brick machine hopper. The material is fed into the mold cavities.
Step 3 – Pressing. The hydraulic system applies 16 MPa of pressure. The upper die and lower die compress the material into dense bricks or blocks. Vibration helps settle the material for uniform density.
Step 4 – Ejecting. The hydraulic cylinders lift the lower die, ejecting the finished bricks from the mold cavities. The bricks sit on a steel pallet.
Step 5 – Conveying and stacking. The pallet and bricks move to the stacking system. The palletizer automatically stacks the pallets for curing. The machine cycles continuously – feed, press, eject, stack, repeat.
The whole process is automated. One operator monitors the control panel. Another operates the mixer. A third manages the palletizer. The fully automatic brick making machine runs continuously for the full shift.
Components of an Automatic Brick Block Making Machine
The YG-QT4-15 brick block making machine system includes:
- Main brick machine – The core equipment. Does the pressing and molding.
- Mold set – Interchangeable molds for different brick types.
- Hydraulic power station – Provides 16 MPa hydraulic pressure for pressing.
- PLC control cabinet – The computer system that controls all operations.
- Pallet feeder – Automatically feeds pallets into the machine.
- Pallet stacker – Stacks finished pallets of bricks.
- Conveyor belt – Moves material from the mixer to the machine.
- Mixer – Blends raw materials into a uniform mix.
- Curing racks – Hold pallets while bricks cure.
Frequently Asked Questions
It is a machine that automatically produces bricks from cement, sand, and other materials using hydraulic pressure and vibration. No firing is needed. It includes feeding, pressing, ejecting, and stacking systems.
8,000 – 10,000 standard bricks per 8-hour shift. For standard bricks, the machine produces up to 57,600 pieces per shift. The document lists all production capacities.
Hollow blocks, porous blocks, standard bricks, and pavers.
Cement, sand, stone powder, fly ash, water. The mix ratio is typically 8-15% cement, 40-55% stone powder, 40-45% sand, and 10% water. For reference only.
Yes. Change the mold set and adjust the settings. The YG-QT4-15 supports multiple brick types.
Start Your Brick Business with YG
Fully automatic brick making machine is the best investment for any brick production business. YG offers the QT4-15 model with a 15-second cycle, 16 MPa hydraulic pressure, and an output of 8000- 10000 bricks per day. The machine produces hollow blocks, porous blocks, standard bricks, and pavers. It uses common materials – cement, sand, stone powder, and water. No firing is needed – the bricks cure naturally. The complete system includes the mixer, conveyor, brick machine, pallet feeder, stacker, and control system.
YG Machinery also offers manual and semi-automatic brick machines. Contact YG with your required brick type and daily output target. They will recommend the right automatic brick machine and provide a quote.
