The semi-automatic brick-making machine is designed for small and medium-sized brick production. It uses pressure and vibration to mold standard bricks, hollow bricks, and other concrete blocks. The YG semi-automatic brick-making machine has a molding cycle of 35 seconds, a total power of 6.3kW, and can produce 15,000 standard bricks or 2,400 hollow bricks per shift. It requires only 2-3 operators, has a compact and stable body, quick mold changing, and economical energy consumption. It uses wear-resistant steel core components, is easy to operate and maintain, and can flexibly produce various types of blocks. It can also be used with other brick-making equipment, making it a high-performance, cost-effective core piece of equipment for small and medium-sized brick factories to reduce costs, increase efficiency, and achieve stable mass production.
Semi-Automatic Brick Making Machine Simple Data
Understanding the technical specifications of a brick molding equipment is essential before purchase. The YG machine is engineered for small to medium-scale production. Below are its core parameters.
| Item | Specification |
| Molding Cycle | 35 s |
| Total Power | 6.3 |
| Capacity | Standard brick 240×53×115 mm: 15,000 pcs/shift Hollow block 390×190×190 mm: 2,400 pcs/shift |
| Pallet Size | 850×550×30 mm |
| Machine Dimension | L1250×W1350×H1550 |
| The weight | 800kg |
| Number of operators | 2–3 persons |
With these specs, you can plan your production shifts accurately. The machine’s compact footprint fits easily into small workshops, while its 800kg weight ensures stability during high-frequency vibration.
Advantages Of This Semi-Auto Block Machine
Why choose a semi-automatic brick-making machine over a manual or fully automatic line? First, the YG model delivers consistent compaction with every cycle, producing bricks of uniform size and strength. Second, it significantly reduces labor compared to manual methods – only 2-3 operators are needed. Third, the 6.3 KW power consumption is economical, keeping your electricity bills low. Fourth, the quick mold change system allows you to switch between standard bricks (240×53×115 mm) and hollow blocks (390×190×190 mm) in minutes. This versatility means you can respond to different customer orders without buying multiple machines. For small business owners, this machine offers the best return on investment.
Core Components Of Brick Molding Equipment

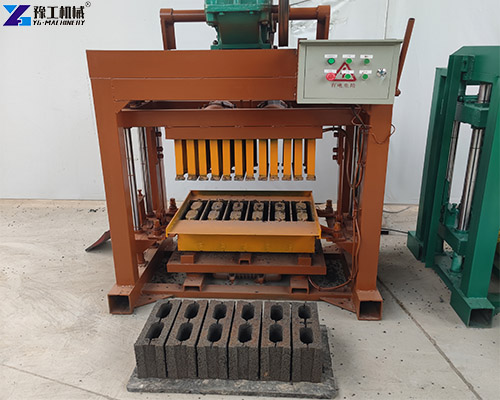

A reliable semi-automatic brick-making machine is built from durable components. The YG model features a heavy-duty steel frame that absorbs vibration during the pressing cycle. The hydraulic or mechanical pressing unit (depending on configuration) delivers a consistent force to compact raw materials like concrete, cement, or fly ash. The mold box is made of hardened steel with precision-ground surfaces to ensure clean brick edges. The control panel includes simple push buttons and a timer for setting the 35-second molding cycle. A vibrator motor beneath the pallet helps settle the mix before pressing. Finally, the pallet feeding mechanism automatically positions the 850×550×30 mm pallet for each cycle. All these components work together to produce bricks that meet construction standards.
How does a Semi-Automatic Rick Making Machine Work?
Understanding how a semi-automatic brick-making machine operates helps you optimize production. The process begins with manually mixing raw materials into a homogeneous concrete mix. Two to three operators feed the mix into the mold box using shovels or a small hopper. Once the mold is filled, the operator activates the control lever. The press head descends, compacting the mix under high pressure while the vibrator runs to eliminate air voids. After the 35-second molding cycle, the press head rises automatically. The finished bricks or hollow blocks remain on the pallet. The operator then pushes the pallet onto a curing rack or transfer cart. For hollow blocks, the mold includes core pins that create voids. This semi-auto block machine cycles continuously, producing up to 2400 hollow blocks or 15,000 standard bricks per 8-hour shift.
Smart Features Of This Semi-Auto Brick Press
The YG semi-automatic brick-making machine includes thoughtful features that enhance daily operation. The total power of 6.3 KW is distributed between the vibrator, press motor, and control system, ensuring no single component overloads. The machine accepts standard 850×550×30 mm pallets, which are widely available and easy to replace. The compact dimensions (L1250×W1350×H1550 mm) allow easy transport through standard doorways. An emergency stop button is located within arm’s reach of the operator. The mold box is designed with quick-release bolts, so changing from standard brick to hollow block takes less than 10 minutes. For long-term durability, all wear parts – including the press plate and mold liners – are made from wear-resistant steel. This semi-auto brick press requires minimal maintenance; just regular greasing of moving parts and cleaning of the mold after each shift.
Daily Maintenance Tips For Brick-Making Equipment
Good maintenance extends machine life and ensures stable production:
- Daily cleaning: Clean leftover concrete in the mold and on the vibration table after production to avoid hardening and damaging parts.
- Lubrication check: Add lubricating oil on time to keep moving parts well lubricated.
- Bolt tightening: Vibration may loosen bolts. Check and tighten all connections regularly, especially the vibration motor base bolts.
- Electrical inspection: Check cables for damage and loose connections to avoid short circuits.
- Vibration parts check: Regularly inspect vibration springs and vibration motor bearings for wear or noise, and replace worn parts in time.
Choose YG
YG Machinery also offers complementary equipment. Investing in a quality semi-automatic brick-making machine today will boost your productivity and product consistency. Contact YG Machinery for a quote or a live demonstration at your site. Our team is ready to help you select the right mold options and accessories for your specific block dimensions.
