A construction company in a certain location in Saudi Arabia was working on a large-scale foundation excavation project. The site contained massive granite boulders that needed to be removed. Blasting was not allowed due to nearby residential areas and utility pipelines. Mechanical breakers were too slow and caused excessive vibration, risking damage to adjacent structures.
The project manager searched for a safer, more efficient solution. He discovered YG’s hydraulic rock splitter for sale. He needed a rock splitter that could work with his existing excavator’s hydraulic system. YG recommended the YG-350 model with a diesel power pack.
Technical Parameters Of The Hydraulic Rock Splitter For Sale
YG offers three models of the equipment. Based on the customer’s typical rock hardness and hole depth requirements, YG selected the YG-350. Below are key specifications:
| Model | YG-250 | YG-350 | YG-450 |
| Wedge Length(mm) | 250mm | 350mm | 450mm |
| Piston Stroke(mm) | 90/220mm | 90/220mm | 90/220mm |
| Drilling Depth(mm) | >500mm | >700mm | >900mm |
| Punching Diameter(mm) | 42mm | 46mm | 46mm |
| Crack Width(mm) | 10-20mm | 10-20mm | 10-20mm |
| Cleavage Time(s) | 10-15/s | 10-15/s | 10-15/s |
| Splitting Force(T) | 500t | 800t | 800t |
| Weight(kg) | 240kg | 250kg | 260kg |
The YG-350 machine delivers 800 tons of splitting force. This machine includes a diesel pump station, two splitting guns, and a flow divider for simultaneous operation.
How Does This Rock Splitter For Sale Perform On Site?

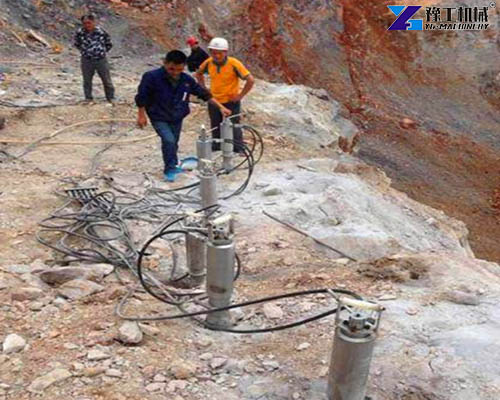

The Saudi contractor deployed the rock splitter for sale on the granite boulders. The first test was on a 2m³ boulder. Results were immediate:
- Splitting speed: Each split cycle took 10-15 seconds. The hydraulic rock splitter for sale cracked the boulder into manageable pieces in under 10 minutes.
- No vibration: Nearby buildings experienced zero movement. The machine works by static pressure, not impact.
- No dust or noise: The operation was clean and quiet, meeting Saudi environmental standards.
The machine also handled boulders with pre-drilled holes from a crawler drill. The contractor was impressed by the precise crack control.
Customization For Saudi Desert Conditions
YG engineers considered Saudi Arabia’s extreme heat, sandy environment, and remote site logistics. Customizations included:
- Diesel power pack with heavy-duty air filter to handle desert dust.
- High-temperature hydraulic seals rated for 60°C ambient operation.
- Extra-long hydraulic hoses (20m) to keep the power unit away from falling debris.
- Heat-resistant paint on all exposed surfaces to prevent fading and corrosion.
For the hydraulic rock splitter for sale, YG also added a pressure gauge with Arabic numerals for easy reading. The machine was shipped with two spare wedge sets and a full seal kit.
Tangible Results After Using The Hydraulic Rock Splitter For Sale
After four weeks of daily operation, the Saudi contractor recorded measurable gains:
- Excavation progress increased by 200% compared to mechanical breakers.
- Fuel consumption dropped by 40% – the equipment uses less energy than continuous hammering.
- No downtime from vibration-related equipment failures.
- Safety improved – no flying rock fragments or dust clouds.
The equipment paid for itself in under three months. The contractor has since ordered a YG-450 model for larger boulders and an electric power pack for indoor demolition work.
Smooth Cooperation And Final Conversion
YG provided drilling pattern recommendations and splitting sequence diagrams. Sea freight was arranged from China to Dammam port. Remote video support via WhatsApp guided the first assembly and pressure adjustment. The hydraulic rock splitter for sale came with a one-year warranty and a free operator training video.
For any mining company, construction firm, or demolition contractor needing a rock splitter, YG offers proven solutions. Contact us today for a free quote.
