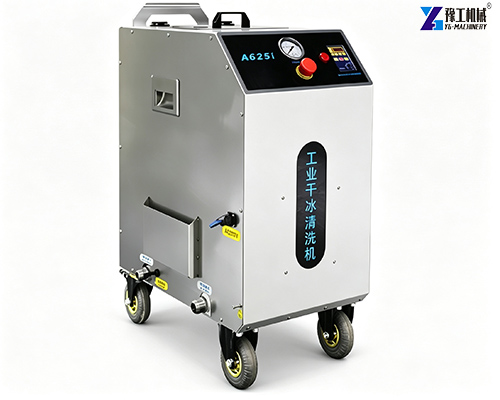

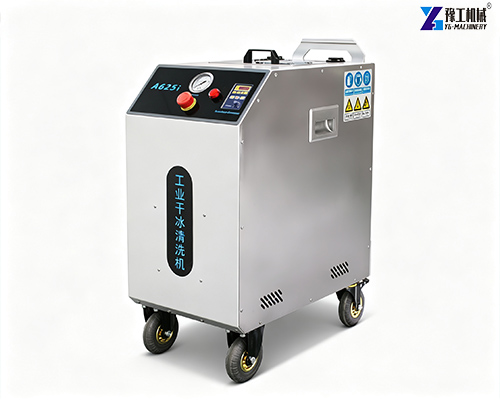

Portable dry ice blaster is an industrial cleaning machine that uses compressed air to propel dry ice particles onto contaminated surfaces. The cleaning process uses dry ice particles to remove dirt, grease, paint, residues, and other contaminants from equipment and surfaces.
The YG-A625i uses 2.5- 3 mm granular dry ice as the cleaning medium. Its ice delivery speed and air consumption can be adjusted according to the cleaning application.
The machine is designed for industrial environments and is used in printing, automotive, power, petrochemical, aerospace, food processing, mold, pipeline, and other industries.
Portable Dry Ice Blaster Technical Parameters
| Parameter | YG-A625i |
|---|---|
| Power | 0.75 kW |
| Voltage | AC 220V / 50-60Hz |
| Air Consumption | 3-8m³/min, adjustable |
| Air Supply Pressure | 0-1.6MPa, adjustable |
| Ice Delivery Speed | 0-3.6kg/min, adjustable |
| Hopper Capacity | 25kg |
| Protection Level | IP54 |
| Net Weight | 65kg |
| Dry Ice State | 2.5-3mm granular |
| Drive Method | Direct drive |
| Dimensions | 440 x 680 x 780mm |
The portable dry ice blaster provides adjustable air consumption, air supply pressure, and ice delivery speed. This allows operators to adjust the cleaning process according to different equipment and contamination conditions.
Industrial Dry Ice Blaster Core Features
1. Adjustable Ice Delivery
The portable dry ice blaster uses an adjustable ice delivery speed from 0 to 3.6kg/min. Operators can control the dry ice output according to the cleaning requirement.
The machine uses a special rotary feeding design combined with vibration-based ice delivery to support continuous operation.
2. Quick-Change Spray Nozzles
The portable dry ice blaster uses a quick-change connection between the spray gun and nozzle. Different nozzle lengths and shapes can be selected according to the cleaning area.
The manufacturer can also produce different nozzle configurations according to customer requirements.
3. 24V Spray Gun Cable
The spray gun cable uses a 24V power supply. The control cable, air hose connection, and spray gun hose connection use threaded connections for reliable attachment and convenient removal.
4. Continuous and Flexible Operation
The machine is equipped with a dedicated low-temperature hose and quick connectors. The hose is designed to withstand high pressure and low temperatures while maintaining flexibility.
This allows operators to work more comfortably when cleaning overhead surfaces or areas requiring more demanding spray angles.
Industrial Dry Ice Blaster Structure and Operation
The industrial dry ice blaster consists mainly of:
- Control module
- Protection module
- Feeding system
- Anti-blocking vibration module
- Dry ice hopper
- Ice delivery hose
- Handle and spray gun assembly
The machine uses a direct-drive configuration and a dedicated feeding system to deliver granular dry ice to the spray gun.
The handle includes a safety protection switch and allows the operator to switch between ice spraying and air spraying. A lighting function is also included on the handle.
Portable Dry Ice Cleaning Machine Applications
The portable dry ice cleaning machine is designed for a broad range of industrial cleaning tasks.
1. Automotive Manufacturing
The machine can clean automotive molds and remove burrs and paint from automotive plastic components.
2. Printing Industry
It can be used to clean ink rollers and remove stray colors and handwriting generated during printing operations.
3. Power Industry
Applications include cleaning gas turbines, blowers, and substations used in thermal power generation.
4. Food Processing
The portable dry ice blaster can remove residues, grease, mold contamination, and sugar from production lines. It can also be used for cleaning kitchen equipment.
Dry Ice Cleaning Car Machine Industry Applications
The dry ice cleaning car machine is suitable for automotive manufacturing and maintenance-related cleaning tasks, particularly where molds, plastic components, and other automotive parts require cleaning.
The same equipment can also be used in:
- Petrochemical industry
- Aerospace industry
- Rubber and tire production
- Die casting
- Railway equipment
- Optical component manufacturing
- Vending machine maintenance
- Pipeline engineering
- Mold manufacturing
- Engineered wood production
The documented applications include cleaning railway bogies, gearboxes, hubs, rails, optical molds and panels, vending machines, airport runway lighting facilities, and production-line contamination.
Portable Dry Ice Blaster Safety and Maintenance
The portable dry ice blaster incorporates several design features intended to support stable operation.
The handle has a safety protection switch, while the equipment includes static electricity protection. The electrical components and standard parts use branded components, and the machine structure is made of stainless steel.
The independent electrical control box is separated from the traditional configuration described in the source material. This independent-space design is intended to improve electrical safety and durability.
The spray process is continuous, the control panel is simple, and the handheld components use an ergonomic design.
Portable Dry Ice Blaster Suitable Applications
The portable dry ice blaster is suitable for industrial cleaning projects where dry ice blasting is required, and the machine’s documented air, pressure, and ice delivery specifications match the application.
Before selection, customers should confirm:
- Required cleaning industry
- Contamination type
- Available compressed-air supply
- Required ice delivery rate
- Required nozzle configuration
- Cleaning area and working position
The source material does not provide specific limitations for contamination thickness, maximum cleaning area, or cleaning efficiency, so these factors should be confirmed with the technical team rather than estimated.
Portable Dry Ice Cleaning Machine Technical Support
Choose the portable dry ice blaster according to the cleaning application, compressed-air conditions, dry ice requirements, and nozzle configuration.
The YG-A625i provides a 25kg hopper, adjustable 0-3.6kg/min ice delivery, adjustable 0-1.6MPa air supply pressure, and 3-8m³/min adjustable air consumption.
Contact the technical team for the complete specification sheet, nozzle options, configuration recommendations, and application support.
