Commercial dry ice blasting machine uses compressed air to propel dry ice particles onto contaminated surfaces. The dry ice creates a temperature difference when it contacts dirt, causing the contamination to become brittle and detach from the surface. The dry ice then sublimates, leaving no chemical cleaning residue.
The YG Mini Nova series is designed as a compact and portable cleaning solution. It uses 3mm dry ice as the input material and has an internal ice-cutting mechanism. Operators can switch between 3mm particles and 0.2mm micro-particles for different cleaning requirements.
Industrial Dry Ice Blaster: Two Particle Modes in One Machine
The main feature of this industrial dry ice blaster is its dual-mode cleaning design.
| Cleaning Mode | Particle Size | Typical Purpose |
| Standard mode | 3mm | Routine contamination removal |
| Fine mode | 0.2mm | Precision cleaning |
The machine starts with 3mm dry ice particles. Its internal cutting mechanism can process the particles into 0.2mm micro-particles without requiring a separate machine. This allows one unit to cover both routine cleaning and precision cleaning applications.
This configuration is particularly useful when one workshop needs to handle different surface cleaning requirements with the same equipment.
Dry Ice Cleaning Car Machine: Compact Design and Easy Handling
The commercial dry ice blasting machine is based on the Mini Nova portable design. The machine weighs only 9kg and uses a 42W motor with a 220V power supply. Its hopper capacity is 3.2kg, while the air consumption range is 0-2m3/min.
Its compact design makes it easier to move between different work areas. The equipment is suitable for applications including electronics, molds, automobiles and circuit boards.
The Mini Nova series also supports cleaning without dismantling the target component in the stated applications, while the dry ice disappears during the cleaning process.
Dry Ice Blaster Cleaning Performance and Operating Data
The Mini Nova provides the following documented specifications:
| Parameter | YG Mini Nova | YG Mini Nova Pro |
|---|---|---|
| Dry Ice state | 2.5-3mm | 2.5-3mm |
| Speed of ice delivery | Particle spray rate: 0.01-0.13 kg/min; Powder spray rate: 0.01-0.08 kg/min | Particle spray rate: 0.01-0.35 kg/min; Powder spray rate: 0.01-0.25 kg/min |
| Power | 42W | 150W |
| Voltage | 220V | AC220V/50-60HZ |
| Hopper Capacity | 3.2kg | 3.2kg |
| Air Consumption | 0-2m³/min | 0.3-0.7m³/min |
| Machine Weight | 9kg | 9.5kg |
| Ice Cutting System | Integrated | Integrated |
| Application Type | Precision and conventional cleaning | Precision and conventional cleaning |
Portable Dry Ice Blaster: Four Design Differences
The commercial dry ice blasting machine incorporates several structural features that distinguish it from the traditional configuration described in the product material.
1. Dual-Motor Drive
YG uses separate motors for the machine head and cutting disc. The mixing shaft can rotate at high speed, providing a high spray frequency. The material states that the ice output is not directly tied to spray frequency.
2. Integrated Gear-Driven Cutting Disc
The cutting disc uses an integrated internal gear structure. According to the product material, this transmission design provides high transmission efficiency, low delay and low maintenance requirements.
3. Independent Electrical Control Box
The electrical control box is separated from the low-temperature area. This design helps isolate electrical components from low-temperature condensation and supports longer component service life.
4. Built-In Spray Gun Filter
A filter is integrated into the spray gun. Large dry ice particles are broken into smaller particles after impact, helping prevent damage to the product being cleaned.
Commercial Dry Ice Blasting Machine Applications
The commercial dry ice blasting machine is designed for a range of industrial and precision cleaning applications.
1. Electronics and Circuit Boards
The Mini Nova model is listed for electronics and circuit board cleaning. Its fine 0.2mm particle mode provides an option for precision cleaning requirements.
2. Automotive Components
Automotive applications are included among the stated application areas for the Mini Nova model. The portable configuration allows the equipment to be moved between cleaning positions.
3. Mold Cleaning
Mold cleaning is another listed application. The dry ice cleaning process can remove contamination without chemical solvents, according to the product documentation.
4. Food and Industrial Equipment
Dry ice cleaning is widely applied in food processing, automotive manufacturing and printing industries for equipment and surface cleaning. The process does not require chemical solvents.
Commercial Dry Ice Blasting Machine FAQ
A: The equipment uses 3mm dry ice as the input material. Its internal cutting mechanism can switch the output to 0.2mm micro-particles.
A: The product documentation states that dry ice cleaning produces no chemical residue. The dry ice sublimates during the cleaning process.
A: Listed applications include food processing, automotive manufacturing, printing, electronics, molds and circuit boards.
A: The Mini Nova weighs 9kg, has 42W power, uses 220V power, has a 3.2kg hopper and supports 0-2m3/min air consumption.
With dual particle modes, a compact 9kg design and no chemical cleaning residue, the Mini Nova series provides a flexible solution for precision and routine surface cleaning.

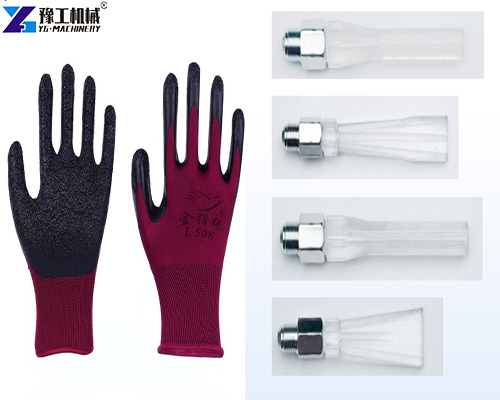

Contact us for the Mini Nova and Mini Nova Pro specifications, standard accessories and application recommendations for your cleaning project.
