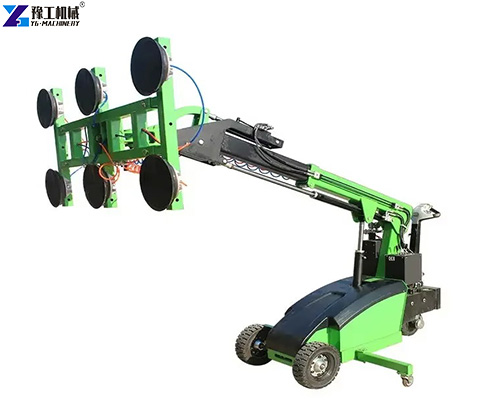

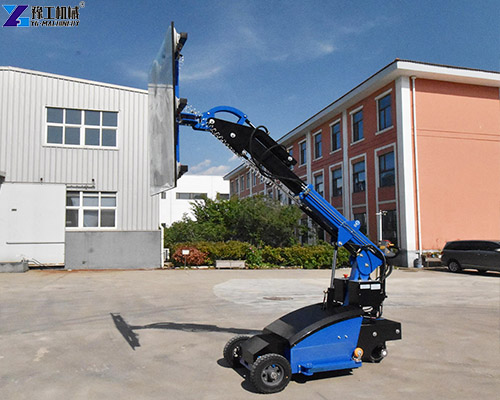

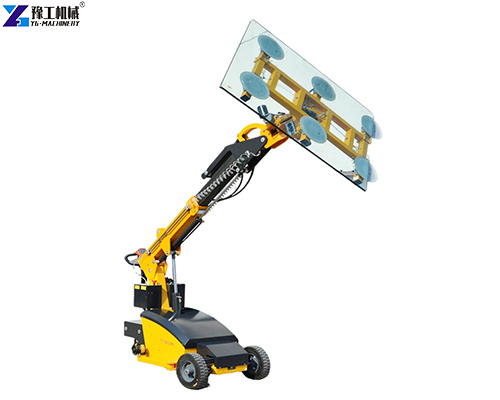

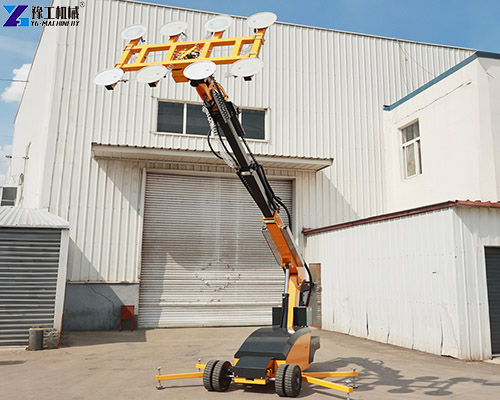

A glass lift robot is an electrically driven vacuum lifting machine designed to handle and position large, heavy materials during lifting and installation. It can be used for glass panels, curtain walls, steel plates, granite, marble, and other suitable materials. By combining vacuum suction with electric travel and lifting functions, this equipment helps operators move materials with greater control while reducing manual handling work.

The YG-LD series includes five models: YG-LD-300, YG-LD-400, YG-LD-500, YG-LD-600, and YG-LD-800. According to the supplied specifications, their rated lifting capacities range from 300 kg to 800 kg when the arm is retracted and from 150 kg to 400 kg when extended. The maximum listed lifting height is 5,000 mm.

Contact us today to find the right glass lift robot for your project. Our team can help you select a suitable model based on your lifting capacity, working height, and installation requirements.

Get Your Project‑Specific Quote

Glass Lift Robot Specifications

The following table consolidates the main specifications of all five models. The lifting capacities shown for retracted and extended arm positions are different, so buyers should check the applicable capacity for their intended working position.

Specification	YG-LD-300	YG-LD-400	YG-LD-500	YG-LD-600	YG-LD-800
Capacity, arm retracted	300 kg	400 kg	500 kg	600 kg	800 kg
Capacity, arm extended	150 kg	200 kg	250 kg	300 kg	400 kg
Lifting height	3,600 mm	3,600 mm	3,700 mm	3,700 mm	5,000 mm
Number of suction cups	4	4	6	6	8
Suction cup diameter	300 mm	300 mm	300 mm	300 mm	300 mm
Travel motor	16 V / 1,500 W	16 V / 1,500 W	24 V / 1,500 W	24 V / 1,500 W	24 V / 1,200 W
Lifting motor	24 V / 2,000 W / 10 L	24 V / 2,000 W / 10 L	24 V / 2,000 W / 10 L	24 V / 2,000 W / 10 L	24 V / 2,000 W / 12 L
Package dimensions (mm)	2580 × 1030 × 1600	2580 × 1030 × 1600	2580 × 1030 × 1600	2580 × 1050 × 1600	3630 × 1125 × 1760
Net/gross weight	1,100 / 1,150 kg	1,280 / 1,330 kg	1,300 / 1,350 kg	1,400 / 1,450 kg	1,600 / 1,650 kg

The table reflects the supplied product information. Before ordering, confirm the applicable load rating, working configuration, and lifting requirements with the supplier.

Receive Detailed Parameter List

4 Key Features of the Electric Glass Lifter

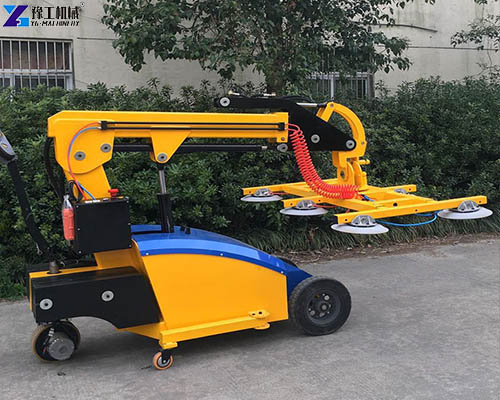

1. Electric Travel and Lifting

The machine combines electric travel with powered lifting, reducing the need to move and raise heavy materials entirely by manual effort. Its hydraulic lifting arm can move up and down, while the main arm extends and retracts to help position materials during installation.

2. Adjustable Suction Frame

The suction frame can tilt and rotate to support different material positioning requirements. The documented functions include powered tilting through 90° in each direction, manual side rotation through 90° on each side, and manual 360° rotation. Electric operation for the optional side-rotation and 360° rotation functions is available at additional cost.

3. Individual Vacuum Control

Each suction cup has an independent vacuum control valve. This arrangement allows individual cup control and can make inspection and maintenance more convenient.

The machine also uses a dual-circuit vacuum system and includes a vacuum accumulator, a power-loss pressure-retention device, and an alarm system. These features are intended to help maintain vacuum pressure and provide warning or additional response time if power is interrupted. Operators should still follow the manufacturer’s operating and safety instructions.

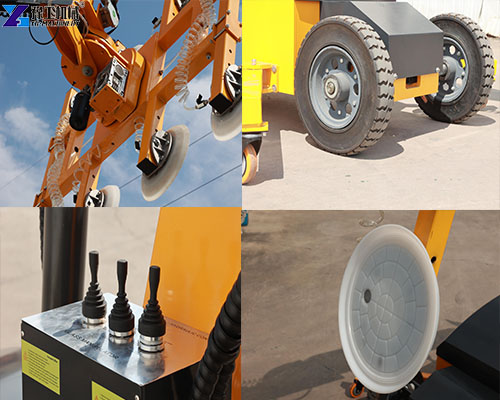

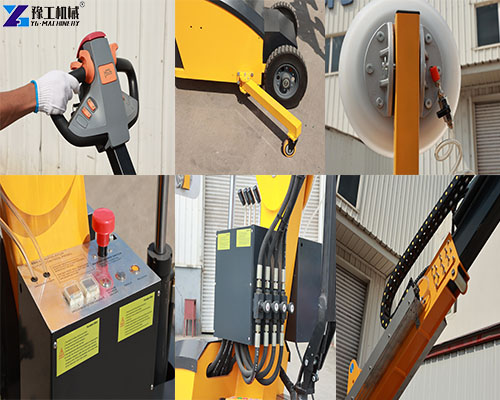

4. Practical Controls and Structural Design

The product information identifies several additional design features:

• An intelligent handle with main power and battery indicator lights.
• An extendable main arm with a documented travel range of 610 or 710 mm, depending on the configuration.
• A lateral movement function that shifts the main support arm by 100 mm without moving the machine body.
• Wear-resistant outdoor drive wheels.
• An integrated aluminum-alloy component designed for strength and corrosion resistance.
• Support legs on both sides to help stabilize the machine during operation.

These features are useful when positioning large panels where accurate movement is critical.

Find The Right Solution For Your Job

Glass Vacuum Lifting Equipment for Different Applications

Glass vacuum lifting equipment is used in projects that require controlled handling of large materials. The YG-LD series is described for the following applications:

• Glass and curtain wall installation: Moving and positioning suitable glass panels during building installation.
• Steel plate handling: Lifting and positioning compatible steel plates in workshops or installation areas.
• Granite and marble handling: Moving suitable stone slabs during material handling and installation.
• Construction and renovation work: Supporting the positioning of large panels where the machine’s capacity and dimensions meet site requirements.

The product also offers an optional sponge suction cup for rough or uneven surfaces. However, confirm surface suitability before use because the ability to create and maintain a secure vacuum seal depends on the material and surface condition.

Get Your Project‑Specific Quote

FAQ About Glazing Robot

Get Your Project‑Specific Quote

Request a Quote for a Glass Lift Robot

The YG-LD series provides five model options with different lifting capacities, suction cup quantities, and working heights. Selecting the correct configuration starts with understanding the material and the installation conditions.

When requesting a quotation, please provide:

• Material type, dimensions, and weight.
• Required lifting height.
• Whether the main arm needs to operate in an extended position.
• Required tilting, rotation, and remote-control functions.
• Surface condition and intended working environment.

Share these details with our team to compare the YG-LD models and confirm a suitable configuration for your glass, steel plate, or stone handling project.
