A wall saw machine is a precision cutting tool used to cut large openings in concrete, brick, and stone structures. It consists of a powerful motor (hydraulic, high-frequency, or electric), a diamond blade, and a rail system. The rail is bolted or anchored to the wall, and the saw travels along it to make straight, accurate cuts.
The wall saw is the preferred tool for:
- Cutting door and window openings in concrete walls.
- Creating elevator shafts and stairwell openings.
- Removing sections of walls for renovation or structural modification.
- Cutting expansion joints in concrete floors and walls.
- Demolition of concrete structures with minimal damage to surrounding areas.
Unlike jackhammers or breakers, a wall saw cutter produces smooth, square edges that require minimal patching or repair. It also produces far less noise and vibration, making it suitable for occupied buildings and sensitive environments.
YG Wall Saw Machine – Key Specifications
Here are the complete parameters for all models. Compare them based on your cutting depth, power source, and budget.

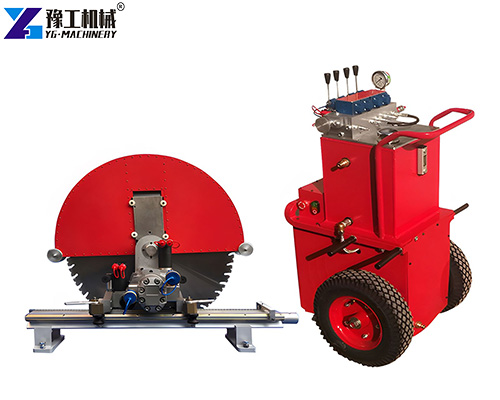

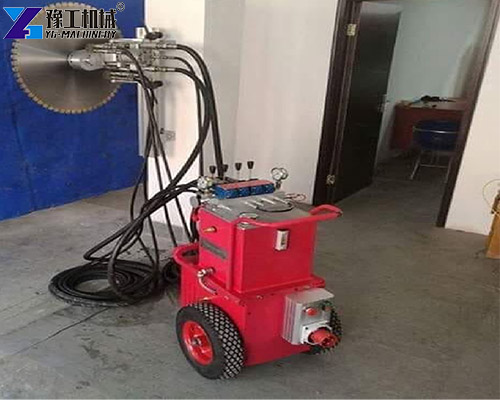

Hydraulic Wall Saws

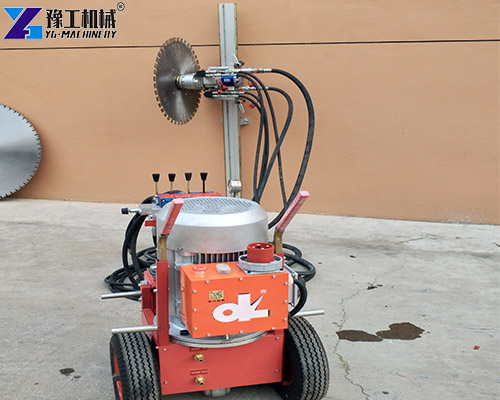

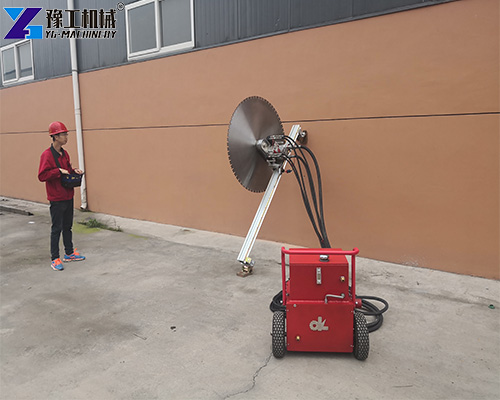

| Model | YG-600TM | YG-700TM | YG-800TM |
| Max.power | 25KW | 30KW | 32KW |
| Motor cooling method | Air cooling | water cooling | water cooling |
| Rated voltage | 380V 50HZ 3phase | 380V 50HZ 3phase | 380V 50HZ 3phase |
| Pressure stages | 3 | 3 | 3 |
| Max. operating pressure | 200bar/20Mpa | 210bar/21Mpa | 210bar/210Mpa |
| Oil flow rate | 30-80L/min | 30-100L/min | 40-100L/min |
| Dimensions | 650mm*600mm*1150mm | 500mm*520mm*1100mm | 680mm*550mm*700mm |
| Weight | 180kg | 118kg | 120kg |

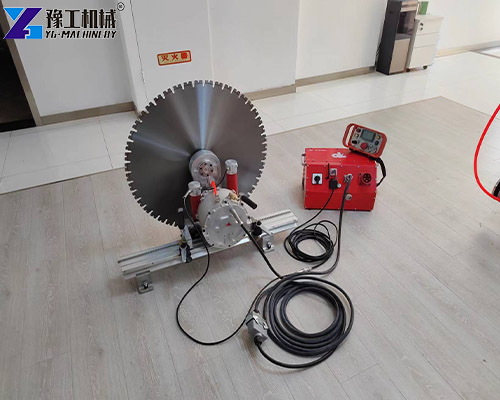

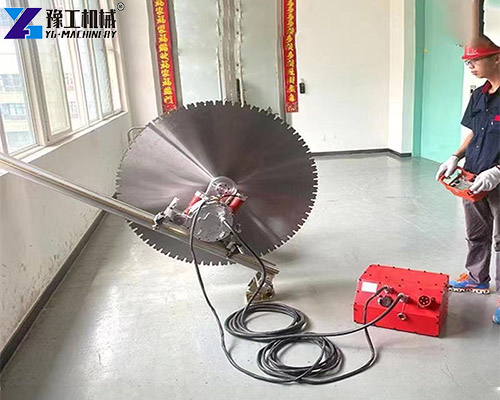

High-Frequency Wall Saw
| Saw Blade | |
| Max. cutting depth | 510mm |
| Max. saw blade | φ1200mm |
| Saw blade fixing(flush cuts) | 6 countersunk head screws,110mm graduated circle. |
| Electric motor(water cooling & high frequency) | |
| Max. Output Power | 16kw |
| IP Classification | IP 67 |
| Weight | |
| Wall Saw 105DM Incl. Feed Electric Motor | 27kg |
| Electric Main Motor 16kw | 18kg |
| Control Unit | |
| Voltage | 380-460V(single phase available) |
| Frequency | 50Hz/60Hz |
| Weight | 19kg |
| Wireless Control | 2kg |

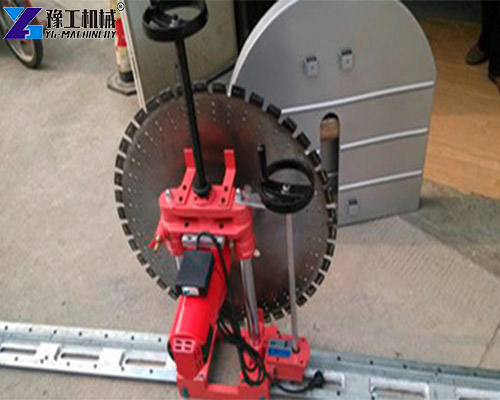

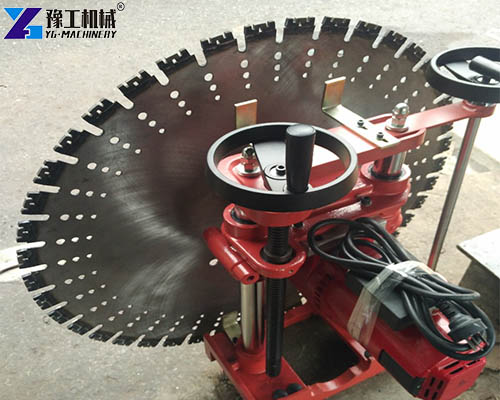

Electric Wall Saws
| Electric Type | |||
| Model | YG-800 | YG-1000 | YG-1200 |
| Type | Manual type / Semi-automatic type / Full automatic type (every model has three types) | ||
| Cutting depth | 320mm | 420mm | 520mm |
| Saw blade diameter | 800mm | 1000mm | 1200mm |
| Power/Voltage | 7280w/220v | 7580w/220v | 7880w/220v |
| Rotary speed | 400r/min | 380r/min | 350r/min |
| Machine weight | 35kg | 38kg | 45kg |
| Machine size | 55*55*78cm | 55*55*88cm | 55*55*98cm |
| Remark: Manual type means placing the saw blade by hand and walking along the track. Semi-automatic means putting the saw blade in by hand, but self-propelled walking on a track. Fully automatic means the saw blade is inserted automatically and the operator walks on a track automatically. | |||
Hydraulic vs High-Frequency vs Electric – Which One Should You Choose?
| Type | Power Source | Best For | Key Advantage |
| Hydraulic | 380V 3-phase power station | Heavy-duty, deep cuts (up to 730mm) | Most powerful, most reliable for continuous heavy use. Standard configuration includes pump station + saw head + 6 oil hoses (10m each) + rail + blade. |
| High-Frequency | 380-460V or 220V single-phase | Medium to deep cuts (up to 510mm), remote control operation | Lightweight (27kg saw head), wireless remote control, switchable voltage. Fills the gap between heavy hydraulic and light electric. |
| Electric | 220V single-phase | Shallow cuts (up to 520mm), small to medium jobs | Most affordable, lightest, easiest to operate. Three automation levels: manual, semi-auto, full auto. |
Smart Features Of YG Wall Saws

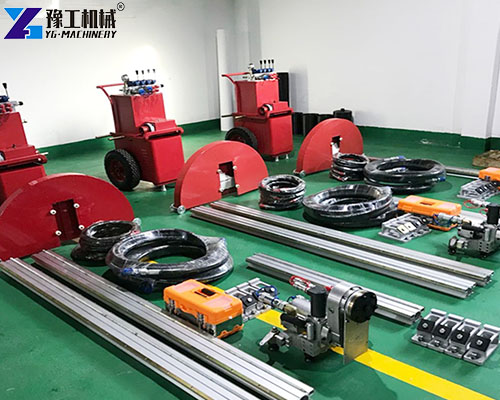

- Hydraulic: High power (25‑32KW), oil flow 30‑100 L/min, maximum cutting depth up to 730mm. Standard package includes pump station, saw head, rails, 6 hoses, saw blade, mounting brackets, and tool kit.
- High-frequency: Only 27kg saw head weight – very portable. IP67 waterproof motor. Wireless remote control for safe operation. 220V/380V switchable – works in any country.
- Electric: Three automation levels – manual (hand push), semi‑automatic (self‑propelled), full automatic (automatic blade feed + self‑propelled). 220V only – ideal for residential and light commercial.
Conclusion – Choose The Right Wall Saw Machine For Your Project
A wall saw cutter is essential for precision cutting in renovation, demolition, and structural modification. YG offers three types: hydraulic (YG-600TM, 700TM, 800TM), high-frequency (17KW wireless remote control), and electric (YG-800, 1000, 1200). Hydraulic saws deliver the deepest cuts (up to 730mm) and highest power. High-frequency saws are lightweight, portable, and remote‑controlled – the perfect balance of power and convenience. Electric saws are the most affordable and ideal for smaller jobs.
The document emphasizes that high-frequency wall saws are the best sellers and recommended for most professional cutting contractors. The combination of 17KW power, Italian-imported motor, and switchable voltage makes them suitable for almost any job site worldwide.
YG Machinery also offers diamond blades, rails, and other concrete cutting equipment. Contact YG with your cutting depth, power source, and project type. They will recommend the right wall saw machine and provide a quote. Cut clean, cut fast, cut with YG.
Phone / WhatsApp / WeChat: +86 159 3715 3321
Email: admin@chinayugongmachinery.com
Frequently Asked Questions

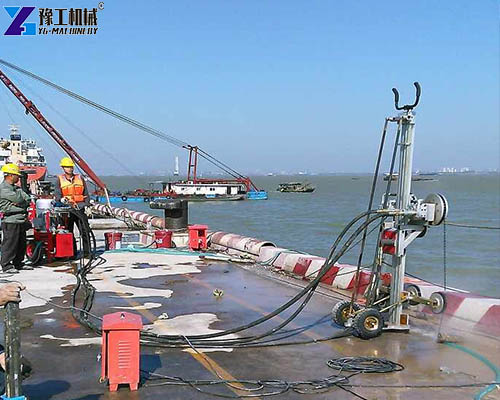

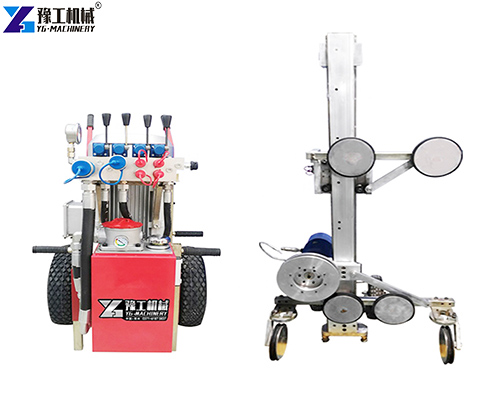

Electric: 320- 520 mm. High-frequency: 510mm. Hydraulic: up to 730mm (YG-800TM). For deeper cuts, use a wire saw.
3‑6 meters per hour. For cutting 500mm deep concrete, expect 2‑3 meters per hour. Cutting granite is 2‑3 times faster.
About 15‑20 square meters, roughly 100 meters of cutting. Blades are consumable; we recommend ordering spare blades.
The electric is 7KW and lower efficiency; the high-frequency is 17KW with an Italian-imported motor, much higher efficiency, and dual‑voltage capability.
