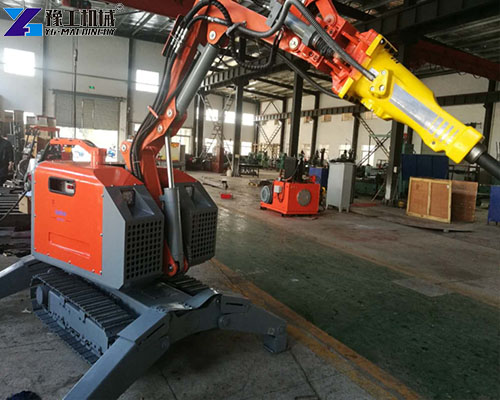

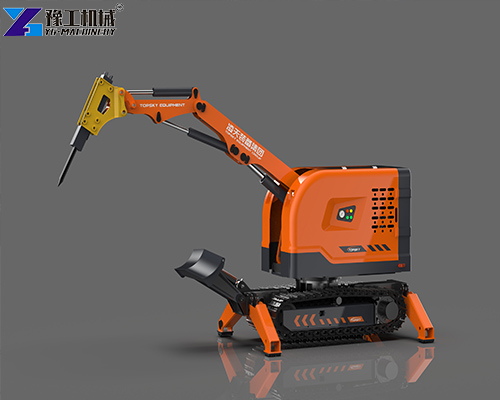

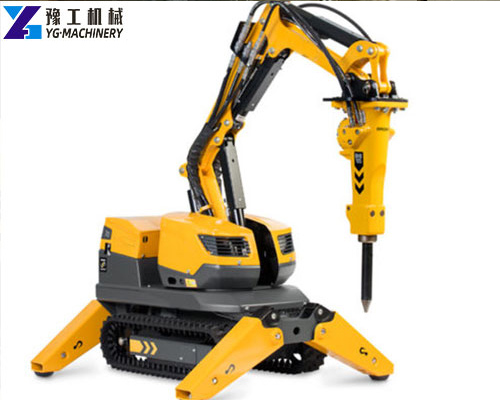

Robotic demolition machine is compact hydraulic demolition equipment designed for demolition, repair, rescue, and construction tasks in complex working environments. It uses an intelligent electronic control system and remote operation technology to improve flexibility and safety during demolition operations.
Compared with traditional demolition equipment, the machine features a compact structure and can operate in restricted spaces where large machinery cannot easily enter.
The equipment is mainly used in commercial buildings, industrial structures, dangerous building renovation, metallurgical furnace maintenance, emergency rescue, and earthquake disaster relief projects.
Robotic Demolition Machine Technical Parameters
| Technical parameters | Performance index | |
| Overall performance | Vehicle equipment quality: 4960kg | |
| Traveling speed: 2.2 km/h | ||
| Slewing speed: 0- 8 rpm | ||
| Climbing gradient: 30° | ||
| Track width: 300mm | ||
| Tools available: hydraulic hammer, hydraulic shear, bucket, grab, etc | ||
| Geometric dimensions | Equipment dimensions | Length: 3891mm |
| Minimum height: 1882mm | ||
| Minimum width:1200mm | ||
| Working space | Maximum working height: 6604mm | |
| Maximum working radius: 6194mm | ||
| Maximum working depth: 3451mm | ||
| Powertrain | Diesel engine-driven | Power/speed: 37kW@1480rpm |
| Maximum torque: 239Nm | ||
| Hydraulic system | Main pump: load-sensitive axial piston variable displacement pump | |
| Output fow:0-110Lpm | ||
| Main valve: load feedback pressure compensation, electrohydraulic proportional multiple-way valve | ||
| System rated pressure: 21MPa | ||
| Hydraulic oil tank volume: 159L | ||
| Control device: portable remote control | ||
| Control system | Control mode: wireless, wired (20m) | |
| Communication mode: digital, wired two-way communication based on CAN bus | ||
The robotic demolition machine provides multiple attachment options and flexible working dimensions. The compact body design allows it to access restricted areas while maintaining demolition capability.
Remote Control Demolition Robot Core Features
1. Compact Structure for Restricted Spaces
The machine is designed with a compact body structure. It can enter narrow working areas that may be difficult for conventional demolition equipment to access.
This feature makes it suitable for indoor demolition, renovation projects, and complex construction environments.
2. Intelligent Electronic Control System
The equipment uses an intelligent electronic control system to improve operation reliability and energy efficiency.
Operators can control the machine remotely, reducing direct exposure to hazardous demolition environments.
3. Multiple Hydraulic Attachments
The robotic demolition machine supports different hydraulic tools according to project requirements.
Available attachments include:
- Hydraulic hammer
- Hydraulic shear
- Bucket
- Grab
These attachments allow the equipment to perform different demolition and material handling tasks.

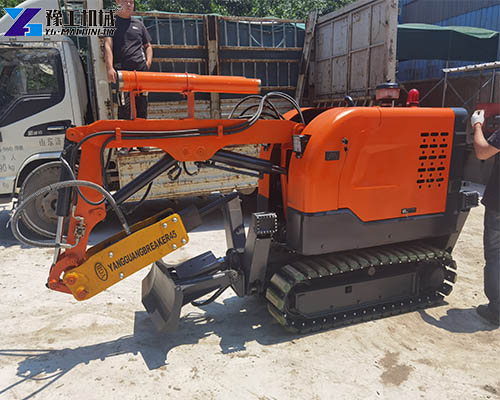

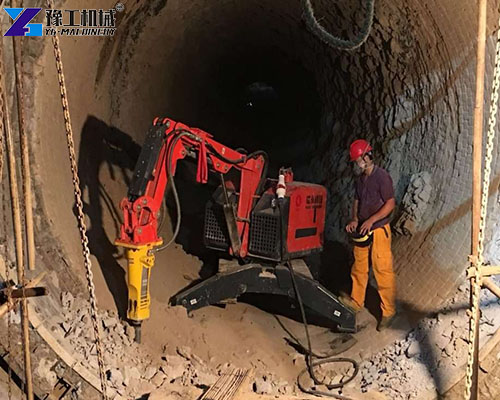

4. Remote Wireless and Wired Operation
The remote demolition equipment supports both wireless and wired control modes.
The wired control distance can reach 20m, while the communication system uses digital two-way communication based on CAN bus technology.
This provides flexible operation options for different construction conditions.
Remote Demolition Equipment Working Performance
The equipment uses a diesel engine power system and hydraulic drive structure.
The hydraulic system includes a load-sensitive axial piston variable displacement pump, load feedback pressure compensation main valve, and electrohydraulic proportional multiple-way valve.
The rated hydraulic system pressure reaches 21MPa, with hydraulic output flow from 0-110L/min.
This hydraulic configuration supports stable operation of different attachments during demolition work.
Demolition Robot for Sale Application Areas
1. Commercial and Industrial Buildings
A demolition robot for sale is suitable for demolition work in commercial buildings and industrial structures.
Its compact dimensions allow it to work in areas with limited space and complex construction conditions.
2. Dangerous Building Renovation
The equipment can be used for dangerous building reconstruction and demolition projects where operator safety is important.
Remote operation allows workers to control demolition activities from a safer position.

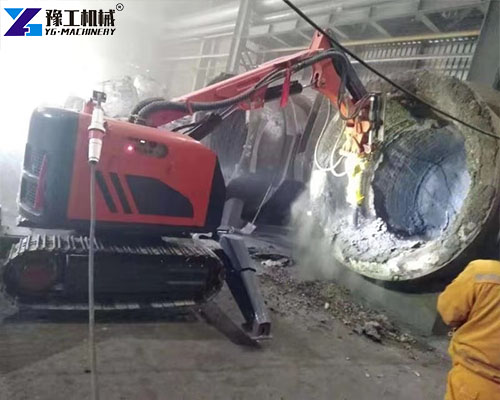

3. Metallurgical Furnace Maintenance
The equipment can be used for slag removal and maintenance work in metallurgical furnace applications.
Its hydraulic attachments provide flexibility for different maintenance tasks.
4. Emergency Rescue and Disaster Relief
The machine is also applied in earthquake rescue and emergency operations.
Its compact structure helps it enter locations where traditional equipment may have difficulty operating.
Robotic Demolition Machine Optional Configurations
The robotic demolition machine can be equipped with additional configurations according to working requirements.
Optional equipment includes:
| Optional Equipment | Function |
| Fire Water Monitor | Water spraying support |
| Temperature Sensor | Temperature monitoring |
| HD Camera | Visual monitoring |
| Dust Suppression Nozzle | Dust reduction during operation |
These optional configurations expand the equipment’s application range in demolition and rescue environments.
Remote Control Demolition Robot Suitable Conditions
Recommended Applications
The robot is suitable for:

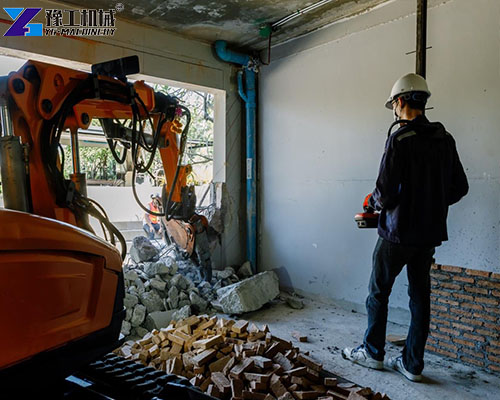

- Indoor demolition projects
- Industrial building maintenance
- Dangerous structure renovation
- Furnace repair work
- Emergency rescue operations
- Earthquake disaster relief
The robotic demolition machine is especially suitable where working space is limited or direct manual operation creates higher risks.
Conditions Requiring Confirmation
Before selecting a demolition robot for sale, customers should confirm:
- Required demolition attachment
- Working space dimensions
- Required working height and radius
- Hydraulic tool requirements
- Operation environment
Different demolition tasks require suitable attachment selection and configuration.
Robotic Demolition Machine Technical Support
Select the suitable robotic demolition machine according to the working environment, required attachments, demolition requirements, and operation conditions.
The equipment provides:
- 4960kg operating weight
- 37kW diesel power system
- 21MPa hydraulic pressure
- Wireless and wired remote control
- Multiple hydraulic attachment options
Contact our technical team to get complete specifications, configuration recommendations, and application support.
