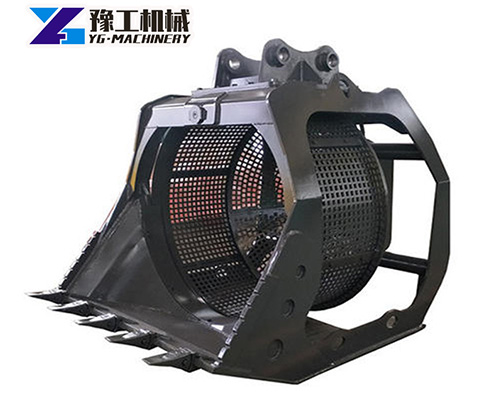

A rock screening bucket for excavator is a hydraulic attachment that turns your excavator into a mobile screening plant. It consists of a rotating cylindrical drum with perforated steel plates or mesh. The drum is driven by a hydraulic motor powered by your excavator’s auxiliary circuit.
You scoop material into the bucket using the excavator. The hydraulic motor spins the drum, separating material by size. Smaller particles fall through the screen openings into a pile below. Larger rocks and debris remain inside the drum. The bucket can be tilted to discharge oversize material where you want it.
The attachment is used for screening topsoil, compost, sand, gravel, demolition debris, and other materials. It is widely used in landscaping, construction, demolition, and site preparation.
YG Rock Screening Bucket For Excavator – Key Specifications
Here are the complete parameters for all six models. Choose based on your excavator size and the material you need to screen.
| Model Number | Applicable Tonnage of Excavator(T) | Operating Flow(L/min) | Working Pressure(Mpa) | Self Weight(Kg) | Number of Revolutions Per Minute(RPM) |
| YG01 | 1.5-3 | 20 | 10-12 | 158 | 35 |
| YG02 | 3.5-5.5 | 30 | 10-12 | 245 | 60 |
| YG08 | 6-10 | 45 | 12-15 | 530 | 65 |
| YG012 | 11-18 | 65 | 15-18 | 1020 | 65 |
| YG016 | 19-28 | 80 | 18-22 | 1920 | 65 |
| YG018 | 29-38 | 150 | 18-22 | 2430 | 65 |
How Does An Excavator Screening Bucket Work?

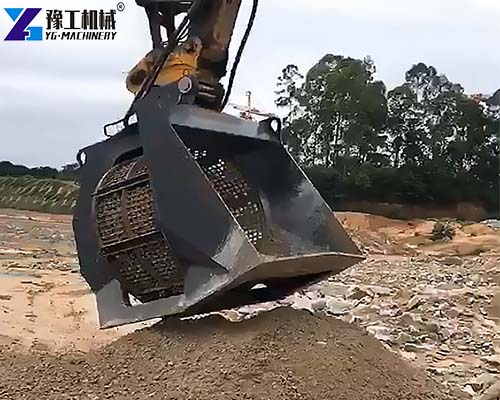

Step 1 – Load. Use the excavator to scoop material into the screening bucket. The bucket acts like a normal excavator bucket for loading.
Step 2 – Screen. Activate the auxiliary hydraulic circuit. The hydraulic motor spins the drum. As the drum rotates, smaller material falls through the screen openings. The fines form a pile beneath the bucket.
Step 3 – Discharge. When the oversize material is separated, tilt the bucket to dump the rocks and debris. The clean, screened material remains in a pile ready for use.
The process is continuous. You can screen load after load without moving the pile to a separate screening plant.
Where Can You Use A Trommel Screening Bucket?
The YG excavator screening bucket is suitable for many applications:
- Landscaping – Screening topsoil, compost, mulch, and sand. Removing rocks and debris from soil.
- Construction site preparation – Screening fill material, gravel, and crushed stone.
- Demolition debris recycling – Separating concrete rubble from fines and rebar.
- Municipal waste processing – Screening compost, green waste, and landfill material.
- Road building – Screening sub-base and base course material.
- Agriculture – Screening compost and manure for field application.
- Mining and quarrying – Screening ore and overburden on site.
The bucket works on site – no need to haul material to a centralized screening plant.
Key Advantages Of A YG Screening Bucket
- Saves hauling costs. Screen material on site instead of hauling it to a screening plant. Save trucking and disposal costs.
- Increases productivity. Screening is done while you excavate. No need to double-handle material.
- Versatile. Works with soil, sand, gravel, compost, demolition debris, and more.
- Easy to use. Simple hydraulic operation. The operator controls the drum speed from the cab.
- Durable construction. Built for heavy-duty use in tough conditions.
- Wide size range. Six models cover excavators from 1.5 to 38 tons. One model for every excavator size.
- Adjustable screening size. Different screen mesh sizes are available for different material requirements. Ask YG for options.
Phone / WhatsApp / WeChat: +86 159 3715 3321
How To Choose the Right Model?
| Excavator Size | Recommended Model | Best For |
| 1.5-3 tons | YG01 | Mini excavators, small landscaping, light soil screening |
| 3.5-5.5 tons | YG02 | Small excavators, topsoil and compost screening |
| 6-10 tons | YG08 | Medium excavators, general construction screening |
| 11-18 tons | YG012 | Large excavators, heavy material screening |
| 19-28 tons | YG016 | Excavators, demolition debris and rock screening |
| 29-38 tons | YG018 | Large excavators, heavy-duty screening applications |
Conclusion – Screen On Site With YG
A rock screening bucket for excavator is one of the most cost-effective attachments you can add to your fleet. It turns your excavator into a mobile screening plant – eliminating hauling costs, reducing double-handling, and increasing productivity. YG offers six models for excavators from 1.5 to 38 tons. The buckets are durable, easy to use, and suitable for soil, sand, gravel, compost, and demolition debris. With rotation speeds up to 65 RPM and flow rates matched to your excavator, the YG screening bucket gets the job done fast.
YG Machinery also offers other excavator attachments: breakers, grapples, shears, and crusher buckets. Contact YG with your excavator make, model, and material type. They will recommend the right excavator screening bucket for sale and provide a quote. Screen smarter – start on site.
Frequently Asked Questions
It is a rotating drum attachment that separates material by size. Fines fall through the screen, and oversize material is retained for disposal.
Soil, sand, gravel, compost, demolition debris, crushed stone, and more.
Your excavator needs an auxiliary hydraulic circuit with the required flow and pressure. Check your machine’s specs.
Regularly grease the bearings and pivot points. Check hydraulic hoses for leaks. Inspect the screen for wear and damage.
